- Overview
Includes:

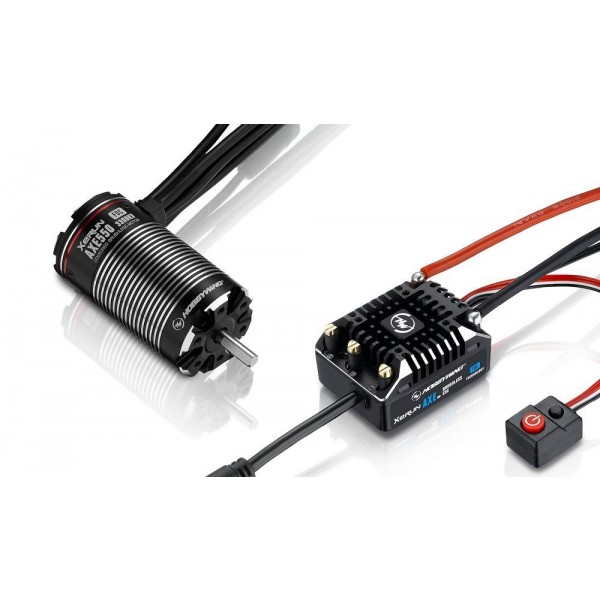

- (1) AXE FOC ESC v1.1
- (1) AXE 550 FOC motor
Notes:
Xerun AXE series is a closed-system: Due to its advanced technology, HOBBYWING Xerun AXE ESC works exclusively with Xerun AXE brushless motor.
features
- Word's First FOC brushless system for Rock Crawler. Field-Oriented Control for Super Linearity & High Torque & Extreme Silence.
- Polarity Protection: Yes. it is not a typo. No more "oops" moment. The chip-type magnetic encoder inside the motor guarantees consistency between three phases’ signals and always outputs the pure and precise signals indicating the rotor position.
- The waterproof and dust-proof design (*IP67 standards) allows the AXE brushless power system to be used in all weather & track conditions without any issue of damage caused to the system from water or dust. Damage to the vehicle caused by water, mud, or conditions should be monitored closely when running in muddy, wet, or adverse conditions.
- Intelligent torque output & speed closed-loop control for easy control, and consistent motor RPM under all loads.
- The adjustable drag brake & drag brake rate control with the maximum drag brake of up to 200% (that’s near twice the drag brake of standard brushless power systems) can provide
- unprecedented parking capacity on slopes, with no jerky stops.
- The innovative built-in Bluetooth connectivity. allows users to read ESC data or update ESC firmware via a smartphone (installed with the HW LINK app).
- The motor with 4 poles & 12 magnets, featuring Hobbywing’s “staggered pole” patent has zero cogging effect & torque ripple. It can work smoothly at low speeds. This greatly improves
- the maneuverability of rock crawlers at low speeds.
- The new sensor harness, which features the plug-and-screw design, has a silicone O ring inside. The new design & O ring not only provide a firm connection between motor and ESC but solve “waterproof” challenge for sensor ports.
- Advanced and secure electronic switch features a waterproof, dust-proof and shock-resistant design.
- Multiple protections: low-voltage cutoff, thermal, fail-safe (throttle signal loss), motor lock-up, and overcurrent.
Cont./Peak Current: 60A/360ASpecs
Input Voltage: 2-3S LiPo, 6-9S NiMh
BEC Output: 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode)
Input wires: Red-Black-12AWG-200mm
Input connector: XT60
Programming Port: Built-in Bluetooth
Firmware: OTA upgradable
Size / Weight: 47.4x36.2x24.6mm / 82g
KV: 2700kv motor
LiPo: 2-3S
No-load Current (A): 2.7
Weight (g): 289g- Specs
Product Specifications
Part Number HWI38020277 Cont./Peak Current 60A/360A Input Voltage 2-3S LiPo, 6-9S NiMh BEC Output 6V/7.4V Switchable, Continuous Current of 4A (Switch-mode) Input wires Red-Black-12AWG-200mm Input connector XT60 Programming Port Built-in Bluetooth Firmware OTA upgradable Size / Weight 47.4x36.2x24.6mm / 82g KV 2700kv motor LiPo 2-3S No-load Current (A) 2.7 Weight (g) 289g - Reviews
