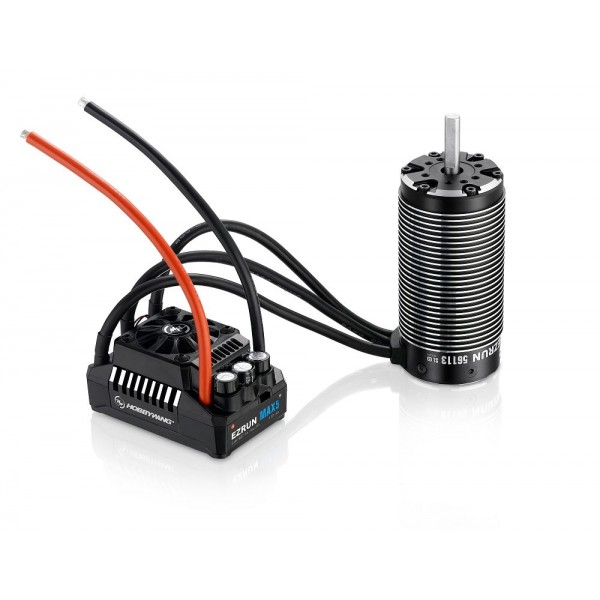

HobbyWing EzRun SL 56113 800KV Motor with MAX5 ESC - Brushless Combo

HobbyWing EzRun SL 56113 800KV Motor with MAX5 ESC - Brushless Combo
This is a Hobbywing part #38010600, An EzRun SL 56113 800KV Motor, with MAX5 ESC. This 1/5 scale Brushless Combo is overflowing with power, but thanks to the thermal control, you won't have to worry about damage

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.

EzRun SL 56113 800KV Motor, w/ MAX5 ESC - Brushless Combo


  • EZRUN MAX Motor
    • Pole: 4
    • KV(No-load): 800KV
    • R. (Ω): 0.00049
    • Current No-load(A): 3.2
    • Max. Output Power(W): 5800
    • C.at the point of M.O.P *(A): 200
    • Motor D&L: Φ=56mm, L=113mm
    • Shaft D&L of the projecting part: Φ=8.0mm, L=31.0mm.
    • LiPo(S): 3-8
    • W (g): 1210g(42.68oz)
    • Applicable: 1/5th
    • RC Vehicles: Truck/Dragster
    • Scale Vehicles: 1/5th
    • Cont./Peak Current: 200A/1300A
    • Motor Mode: Sensorless
    • Input: 9-24 Cells NiMH, 3-8S Lipo
    • Motor Limit: 8S:KV≤1000 (Motor Size:58110)
    • BEC Output: 6V/7.2V
    • adjustable, 6A Programming Port: Use Fan port
    • ESC Programming: Via the SET button/LED Program card /LCD Program Box/ WiFi Module
    • Switch Mode: Electronic Switch Capacitor
    • protection: Yes
    • Waterproof: Yes
    • Size (L.W.H): 93.35x58.12x47.81mm
    • Weight: 342g
  • Strong Power: With a fast acceleration response and a rock-solid, stable output, the EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.
  • Thermal Protection*: When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing upgraded MAX6/MAX5 ESC, the built-in temperature sensor & port will effectively prevent the motor from being damaged due to overheat and prolong its service life . *Note: The built-in temp. sensor will be available through HOBBYWING MAX5/MAX6 ESC in the future model
  • High Efficiency: Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% (an industry-leading level).
  • MAXIMIZED EFFECT: When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing EZRUN MAX5/MAX6 ESC, the excellent match between ESC and motor will give you large torque plus a very smooth and linear power band. (*Note: MAX5 pairs with 5687/56113, MAX6 pairs with 4985)
  • Easy programmable features by WiFi Module (IOS & Android) or LCD Program box - Purchase separately

Product Specifications

Part NumberHWI38010600
