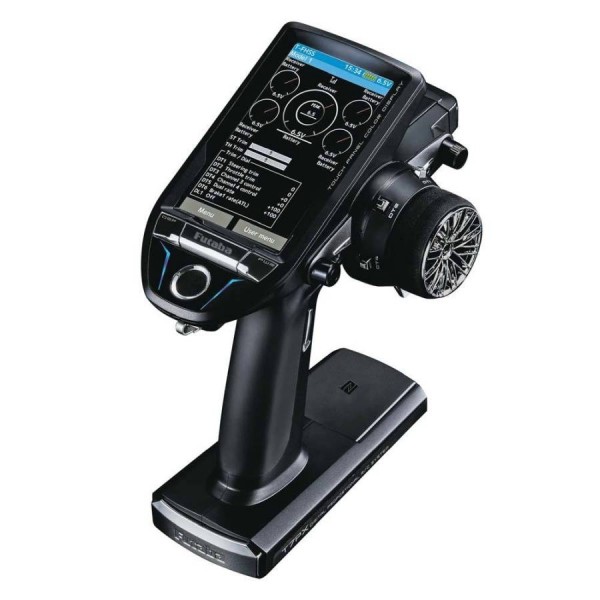

This is the Futaba 7PX 2.4GHz T-FHSS Super Response 7-Channel Surface System with the R334SBS-E 4-Channel Diversity Receiver. The 7PX leads the way to a new revolution in surface control, thanks to Super Response Mode, full telemetry capability and the R334SBS-E diversity receiver! T-FHSS SR Super Response makes the 7PX the fastest Futaba radio yet, to give drivers a more "locked-in" feel while racing. In addition, the 7PX offers the T-FHSS protocol, which allows full telemetry capability. This radio is also compatible with S-FHSS and FASST protocols, expanding receiver options tenfold.
The innovations don't stop there. A 4.3" backlit LCD touch screen lets drivers access key features instantly, via intuitively designed menus. When it comes to features, an R334SBS-E diversity receiver, 40-model memory and updateable software are just the tip of the iceberg. Up to 7 channels can be controlled and programmed. Up to 5 telemetry sensors can be viewed on the main screen for real-time information. Traction control and over-rev functions have been added to complement the ABS function. The 7PX supports high-speed servos—drivers can change the conventional 1,520 µ to 760 µ for SR Mode. The 7PX also adapts the "Return" function to "Throttle," so drivers can set it with more accuracy.
Includes:
- Futaba 7PX Transmitter
- R334SBS-E 4-Channel Diversity Receiver
- Angle Spacer for Wheel
- 32° Wheel Adapter
- Narrow Type Trigger Brake Lever
- Miniature Screwdriver
- Screen Protector
- Instruction Manual
Notes:
In addition to the included FUTR334SBS-E Receiver, the following Futaba receivers are compatible with the 7PX;
T-FHSS: FUTR324SBS, FUTR304SB, FUTR304SB-E (telemetry supported)
S-FHSS: FUTR203GF , FUTR204GF-E, FUTR2104GF, FUTR2008SB, FUTR2006GS, FUTR2001SB, FUTR2106GF
FASST: FUTR614FS, FUTR614FF-Efeatures
- T-FHSS SR Super Response, T-FHSS, S-FHSS and FASST protocols
- Large, backlit 4.3" LCD touch screen
- S.Bus servo programming editor
- Channels 5/6 and 7 feature reversing, end point adjustments, sub-trim assignable brake mixing and ABS.
- Channels 5, 6, and 7 are only available in S-FHSS, Analog Mode
- Assignable switch/dial functions
- 5 programmable mixes
- 40 model memory
- Servo monitor
- Software-updateable
- Up/down/integral timer
- Lap timer/memory
- Voice message/audio earphone jack (3.5mm stereo jack plug)
- Right or left hand operation
- Micro memory card slot
- Wheel/trigger (tension, position, angle) adjustments
- R334SBS receiver includes normal/high-speed mode auto-detection, battery fail safe, 3.7 - 7.4V operation and T-FHSS SR/T-FHSS
- 2.4GHz system operating protocol
- One year limited warranty through the Futaba USA Service Center beginning at date of purchase
Transmitting Frequency: 2.4GHz bandSpecs
Transmitting RF Power Output: 100mW EIRP
Operating Protocol: Futaba T-FHSS SR/T-FHSS/S-FHSS/FASST-C2
Power Requirement: Futaba NT5F1800B NiMH 6V NiMH
Current Drain: 350mA or less when the T-FHSS Vibration off, backlighting on
Transmitting Antenna: 1/2 dipole
Touch Panel: 4.3" (109mm) backlit color TFT (thin film transistor) liquid crystal touch panel
R334SBS-E Receiver:
Protocol: T-FHSS SR/T-FHSS 2.4GHz System
Operating Voltage: 3.7 - 7.4V
Mode: Normal/High-speed mode auto detection
Dimensions: 1.33 x 0.88 x 0.44" (33.9 x 22.3 x 11.3mm)
Weight: 0.26oz (7.3g)- Specs
Product Specifications
Part Number FUT01004384-3 Transmitting Frequency 2.4GHz band Transmitting RF Power Output 100mW EIRP Operating Protocol Futaba T-FHSS SR/T-FHSS/S-FHSS/FASST-C2 Power Requirement Futaba NT5F1800B NiMH 6V NiMH Current Drain 350mA or less when the T-FHSS Vibration off, backlighting on Transmitting Antenna 1/2 dipole Touch Panel 4.3" (109mm) backlit color TFT (thin film transistor) liquid crystal touch panel R334SBS-E Receiver Protocol T-FHSS SR/T-FHSS 2.4GHz System Operating Voltage 3.7 - 7.4V Mode Normal/High-speed mode auto detection Dimensions 1.33 x 0.88 x 0.44" (33.9 x 22.3 x 11.3mm) Weight 0.26oz (7.3g) - Reviews
