- Overview

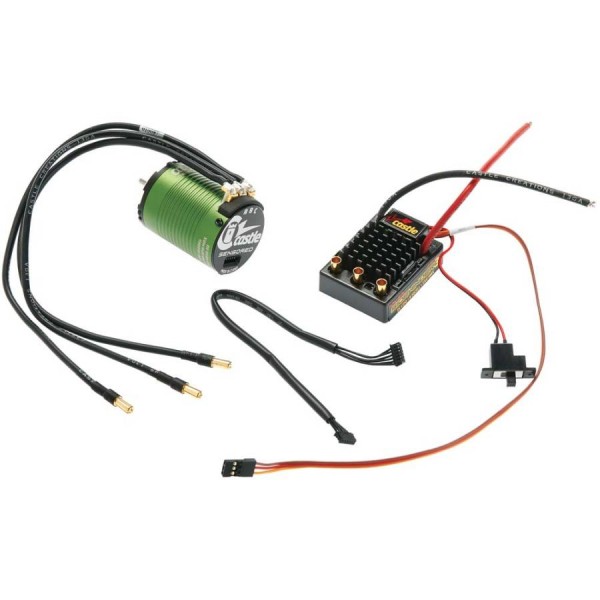

This is a Castle Creations part #010-0115-05, A SV3 Sidewinder 12V Waterproof ESC with 1406-4600kV Sensored Motor Combo
- ESC -Specs
Input Voltage: MIN: 2s LiPo; MAX: 3s LiPo
Operating Environment: Waterproof* design allows for use in nearly any environment.
Brake: Proportional
Reversible: Yes - with lockout
Size (LxWxH): 1.93x1.48x0.79" (49x38x20mm)
Weight (w/127mm long battery wires and no battery connector): 1.96 oz (55.5g)
*Not intended for operation while submerged in liquid. If unit is operated in wet conditions, rinse with fresh water to remove dirt or corrosives, then fully dry unit.
- Motor -
Input Voltage Range: 2-3S LiPo
Kv: 4600
Max. RPM: 100,000
Size: Length: 49.5mm; Diameter: 36mm
Weight (w/wires): 197 g / 6.9oz
Shaft Size: Length: 15mm; Diameter: 1/8" (3.17mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm male Castle Bullet Connectors
Application Guidelines: 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies
Max. Recommended Vehicle Weight: 2WD SCT Trucks up to 5lbs, stadium trucks, bugies, and on-road vehicles up to 4lbs.
Tech Notes: Running modes: SMARTSENSE, Sensored, Sensorless- Specs
Product Specifications
Part Number CSE010-0115-05 Input Voltage MIN: 2s LiPo; MAX: 3s LiPo Operating Environment Waterproof* design allows for use in nearly any environment. Brake Proportional Reversible Yes - with lockout Size (LxWxH) 1.93x1.48x0.79" (49x38x20mm) Weight (w/127mm long battery wires and no battery connector) 1.96 oz (55.5g) Input Voltage Range 2-3S LiPo Kv 4600 Max. RPM 100,000 Size Length: 49.5mm; Diameter: 36mm Weight (w/wires) 197 g / 6.9oz Shaft Size Length: 15mm; Diameter: 1/8" (3.17mm) Mounting Hole Specifications M3 @ 25mm Connectors 4mm male Castle Bullet Connectors Application Guidelines 1:10 scale 2WD SCT, on-road touring, stadium truck and buggies Max. Recommended Vehicle Weight 2WD SCT Trucks up to 5lbs, stadium trucks, bugies, and on-road vehicles up to 4lbs. Tech Notes Running modes: SMARTSENSE, Sensored, Sensorless - Reviews
