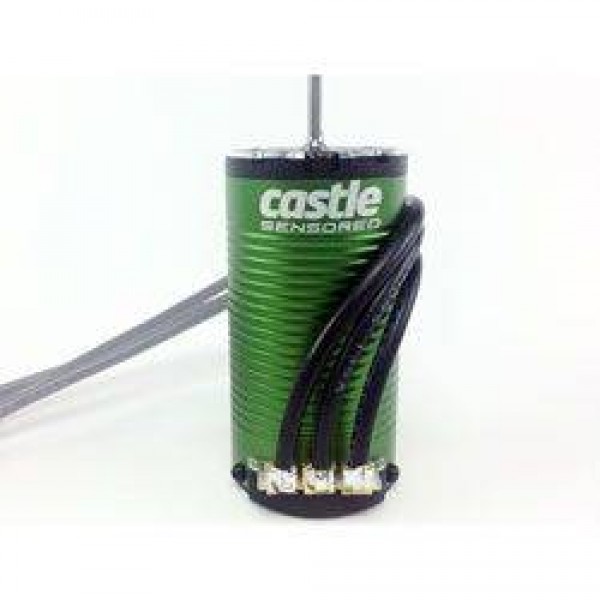

Castle Creations 4-Pole Sensored Brushless Motor 1415-2400kV

For more than a decade Castle has been providing award winning brushless sensorless motors to R/C enthusiasts worldwide. In response to overwhelming requests by our customers, we have brought technological advancements together that will deliver unprecedented performance in our new SENSORED motor line.

The 1415 2400kv is the perfect motor for 1/10th scale 2WD and 4WD short course trucks running on 3s or 4s LiPo. Huge amounts of torque, low temperatures, and incredible speed make this the perfect motor for hardcore bashing and driveshaft snapping power. Paired with the Mamba Max Pro or new Mamba X ESC you will have the perfect pairing for your Short Course Truck or Rock Racer weighing up to 6.5 lbs on 3s or 4s LiPo.


WHY SENSORED?
Drivers in all applications demand clean starts when coming off the line. Crawler fans require high-precision low speed control and torque for climbing, racers need precision and predictability, and dragsters don’t have a millisecond to spare. To achieve all of these performance demands and more, we have integrated rotor position sensor technology with our improved high power and high efficiency motor design. Through the use of our sensors, the position of the rotor is always known by the ESC. This eliminates the possibility of encountering cogging or inconsistency during startup. Users will experience PRECISE throttle control and BUTTERY SMOOTH starts plus the RAW POWER and LONGER RUN TIMES that our highly efficient motors produce.

• Input Voltage Range: 3-4S LiPo
• Kv: 2400
• Max. RPM: 75,000
• Size: Length: 69.5mm
• Diameter: 36mm
• Weight (w/wires): 318g / 11.2oz
• Shaft Size: Length: 15.5mm
• Diameter: 1/8" (3.17mm)
• Mounting Hole Specifications: M3 @ 25mm
• Cooling Fan: Optional, coming soon!
• Connectors: 4mm male Castle Bullet Connectors
• Items Needed for Operation: Compatible Electronic Speed Control (ESC)
• Application Guidelines: Ideal for 1/10 scale 2WD and 4WD short course trucks up to 6.5lbs (3S-4S).
• Recommended ESC(s): Mamba Max Pro, Mamba Monster X, Mamba X
• Max. Recommended Vehicle Weight: See application guidelines
• Tech Notes:
• Running modes: SMARTSENSE™, Sensored, Sensorless with Castle sensored capable ESCs.
• Water Resistant Design: The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommended applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
