- Overview
Includes:

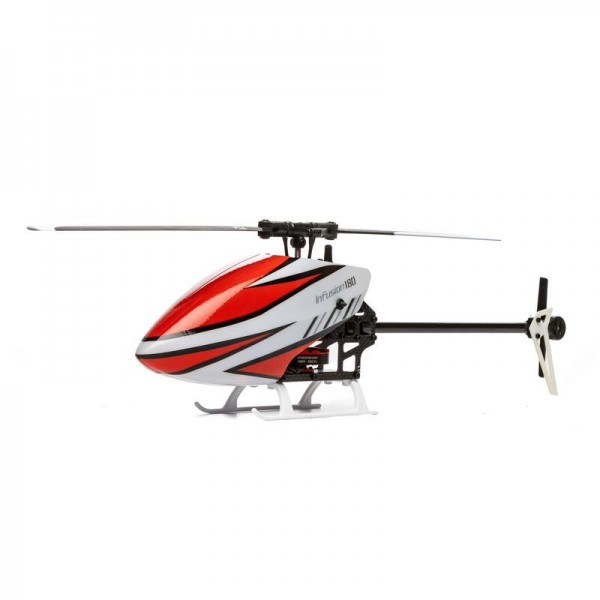

- (1) Fully Assembled Blade InFusion 180 Heli
- (1) Instruction Manual
Requires:
- (1) 6+ Channel DSMX®/DSM2® Transmitter
- (1) 450 – 850mAh 3S 11.1v 30C+ LiPo Battery with IC2 Connector
- (1) Suitable LiPo Charger
features
- SAFE® Technology: Self-leveling modes make learning to fly a collective pitch helicopter easier
- Progressive Flight Modes: This allows you to grow with this heli and build your collective pitch skills
- Panic Recovery: Recover the heli to a level attitude with the flip of a switch
- Smart Technology built-in - Provides valuable telemetry feedback to Smart capable Spektrum transmitters
- Durable: An innovative fusion of carbon fiber, ABS plastic, and aluminum components delivers outstanding rigidity and durability
- Metal Gear Digital Swashplate Servos: Durable, high-speed responsive servos
- Direct Drive Power System: Brushless motor delivers instant power in a simplistic design
- High Visibility: Vivid canopy and bright main blades and tail make it easy to maintain orientation
Motor Size: 4004 - 65KVSpecs
Product Length: 15.51" (394 mm)
Battery: Sold Separately
Main Frame Material: Carbon Fiber
Main Motor Type: Brushless
Tail Rotor Diameter: 2.95" (75 mm)
Technology: SAFE
Canopy/Body Material: Plastic
Product Weight: 280g
Approximate Assembly Time: Less Than One Hour
Tail Drive: Direct Drive
Product Width: 2.55" (65 mm)
Main Rotor Head Type: Collective Pitch Flybarless
Channels: 6
Main Rotor Blade Length: 7.08" (180 mm)
Power Type: Electric
Servos: Included
Speed Control: Included
Skill Level: Level 2
Swashplate Type: 120 Degree CCPM
Main Rotor Diameter: 15.74" (400 mm)
Completion Level: Bind-N-Fly
Main Blade Material: Plastic
Product Height: 4.64" (118 mm)
Tail Blade Material: Plastic
Charger: Sold Separately
Receiver: Included
Tail Motor Type: Brushless OutrunnerProduct Videos
SAFE® Technology:Features Overview
The Blade InFusion 180 helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.
Spektrum™ Avian™ Smart Lite 20-amp Dual ESC included:
The Spektrum™ Avian™ Smart Lite 20-amp Dual ESC transmits flight pack voltage and ESC data straight to your Spektrum transmitter. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, cell balance, temperature, and RPM. The 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked-in and active throttle response.
Spektrum™ AR6251MHX Flybarless Controller and Receiver:
The heli features the new ground-breaking Spektrum™ AR6251HX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, and 6-axis M.E.M.S. inertial sensor, that provides consistent low-latency operation.
Direct Drive Power System:
The InFusion 180 features a direct drive main motor power system allowing for instant power with fewer parts and maintenance when compared to a gear-driven main rotor. The motor shaft itself is made of hardened steel and is nearly indestructible.
High-end Metal Gear Servos:
The InFusion 180 features best-in-class micro servos providing super-fast speed and extremely accurate position holding. Each features a fully metal gear drive train for increased durability and precision.
Optimized Design for low weight and high durability:
The hybrid mainframe takes rigidity to another level for a rock-solid flight experience. The carbon fiber main rotor blades feature an improved aerodynamic design with increases in efficiency and power. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance- Specs
Product Specifications
Part Number BLH7050 Kit Type BNF Basic Motor Size 4004 - 65KV Product Length 15.51" (394 mm) Battery Sold Separately Main Frame Material Carbon Fiber Main Motor Type Brushless Tail Rotor Diameter 2.95" (75 mm) Technology SAFE Canopy/Body Material Plastic Product Weight 280g Approximate Assembly Time Less Than One Hour Tail Drive Direct Drive Product Width 2.55" (65 mm) Main Rotor Head Type Collective Pitch Flybarless Channels 6 Main Rotor Blade Length 7.08" (180 mm) Power Type Electric Servos Included Speed Control Included Skill Level Level 2 Swashplate Type 120 Degree CCPM Main Rotor Diameter 15.74" (400 mm) Completion Level Bind-N-Fly Main Blade Material Plastic Product Height 4.64" (118 mm) Tail Blade Material Plastic Charger Sold Separately Receiver Included Tail Motor Type Brushless Outrunner - Reviews
