- Overview
Overview

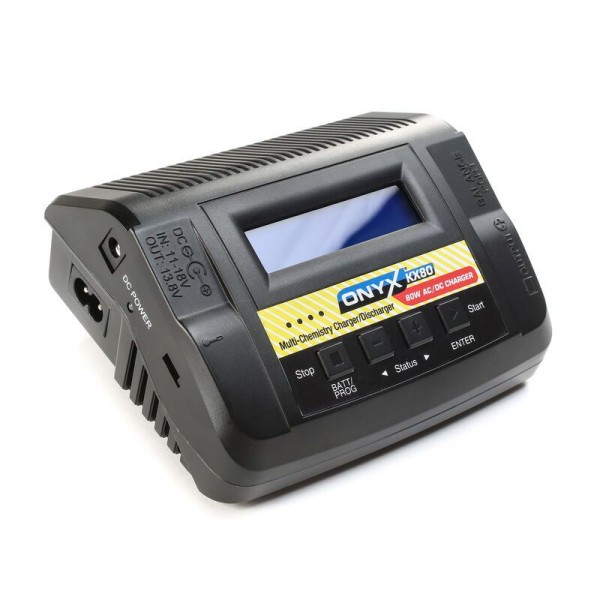

A small, lightweight, compact charger and discharger with the latest digital technology. It offers you the ability to charge all your different battery packs with power and security. The charger has a cargo terminal with integrated balancer. Experience clear and simple operation with the large display and 4 control buttons.
The integrated balancer can handle up to 6 cells during an ongoing operation.features
- Charges LiPo, LiHV, Li-Ion, LiFe, NiCd, NiMH and Pb batteries
- 0.1 - 6A adjustable charge current
- Short circuit, over current, reverse polarity, low input voltage and over temperature protection
- Banana plug to Deans adapter included
- JST_XH balance adapter included
- Charges 1-6 cells for LiPo, LiHV, LiFe, and Li-Ion batteries
- 100-240V AC (50/60Hz) or 11-18V DC input voltage
- 2A, 10W discharge power
- Simple interface with 2-line LCD screen
Thermal Protection: YesSpecs
Voltage Meter: Yes - on main LCD display
Selectable Charge Rate: Yes - Incremental (0.1A Increments)
Short Circuit Protection: Yes
Safety Timer: No
Reverse Polarity Protection: Yes
Software Updates: No
Product Height: 2.4" (60mm)
Product Length: 5.3" (135mm)
Product Weight: 13.7oz (390g)
Product Width: 4.3" (110mm)
Programmable: Yes
Peak Detection: Yes
PC Connectivity: No
Model Memory: 10 battery settings
Normal/Standard Charge Rate: 0.1-6.0A
Output Connector: Banana Plug to Dean's
Over Current Protection: Yes
Amp Meter: Yes - on main LCD display
Battery Balance Connector: JST_XH
Battery Temperature Monitoring: Yes (Temperature sensor not included)
Cooling Method: Fan
Discharge: 0.1-2.0A
Display: LCD - 2 Line x 16 Characters
Input Connector: AC cord, detachable, North American plug, DC cord, detachable, alligator clips
Input Voltage: 100-240V AC or 11-18V DC
Integrated Balancing: Yes - Internal Balancer & External Adapter
Low Input Voltage Protection: Yes- Specs
Product Specifications
Part Number ONXC4101 Supported Chemistries LiPo, LiFE, Li-Ion, LiHV, NiMH, NiCD, Pb (lead acid) Input Source AC, DC Thermal Protection Yes Voltage Meter Yes - on main LCD display Selectable Charge Rate Yes - Incremental (0.1A Increments) Short Circuit Protection Yes Safety Timer No Reverse Polarity Protection Yes Software Updates No Product Height 2.4" (60mm) Product Length 5.3" (135mm) Product Weight 13.7oz (390g) Product Width 4.3" (110mm) Programmable Yes Peak Detection Yes PC Connectivity No Model Memory 10 battery settings Normal/Standard Charge Rate 0.1-6.0A Output Connector Banana Plug to Dean's Over Current Protection Yes Amp Meter Yes - on main LCD display Battery Balance Connector JST_XH Battery Temperature Monitoring Yes (Temperature sensor not included) Cooling Method Fan Discharge 0.1-2.0A Display LCD - 2 Line x 16 Characters Input Connector AC cord, detachable, North American plug, DC cord, detachable, alligator clips Input Voltage 100-240V AC or 11-18V DC Integrated Balancing Yes - Internal Balancer & External Adapter Low Input Voltage Protection Yes - Reviews
