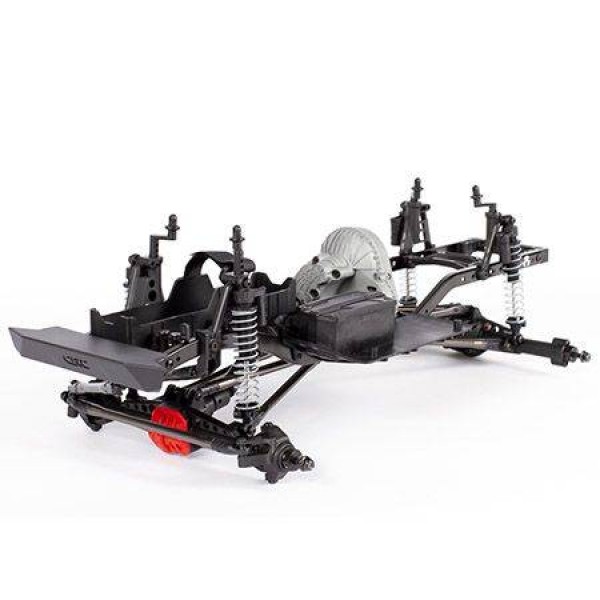

Axial SCX10 II Raw 1/10 4WD Rock Crawler Builders Kit

The Axial SCX10 II chassis is the first choice for builders looking to do custom creations. To help fuel this creativity, we’ve released the Raw Builder’s Kit, a minimalistic version of our SCX10 II that allows you to choose your own wheels, tires, body and electronics. By giving you this option, we let you customize both the look and performance of the best trail truck chassis on the market.

To help you build your ultimate project, the Raw Builder’s Kit includes a full set of aluminum links (steering and suspension), WB8 HD Wildboar™ driveshafts, and mounting hardware to build a 11.4”, 12.0” or 12.3” vehicle.

• Chassis Mounted Servo:
• Servo is moved from the top of the axle onto the chassis, just as a full-size truck's steering box is located on the frame.
• Enhances scale looks with proper suspension geometry.
• Anodized aluminum links included with M4 rod ends.
• Adjustable servo mounting system allows a wide range of servos to be used.
• Properly designed suspension for nearly zero bump steer.
• AX10™ Transmission:
• Scale looks on the outside — strong, all-metal Axial® gears on the inside!
• Mimics a real transmission with bell housing, oil pan, and 4X4 transfer case.
• 56T spur gear and 15T pinion — 32-pitch for durability.
• Final drive ratio (FDR) 40.44 with a range from 33.69 - 54.15.
• Efficient driveline with improved driveshaft angles to reduce stress on moving parts.
• Includes a full set of ball bearings.
• AR44™ Universal Axle Set:
• Universal joint axles allow up to 45 degrees of steering and provide smoother action for a higher performing, efficient drivetrain.
• Hardened steel construction.
• All Aluminum Suspension Links:
• All links are metal, including the steering.
• 4-Link rear suspension geometry reduces axle steer and torque twist.
• Custom tapered center – flared ends design.
• Large M4 rod ends.
• Gray anodized aluminum.
• AR44™ Single Piece Axles:
• Single piece axle housing for strength.
• Small pumpkin for increased clearance and scale realism.
• Optimized gear ratio (3.75) for reduced torque twist.
• High pinion gears for added ground clearance, better driveshaft angles, and increased durability.

Type: SCX10 Chassis Vehicle
Scale: 1/10
Length: 19.25 in (489mm)
Width: 8.9 in (226mm)
Height: 9.4 in (239.4mm)
Ground Clearance: 3.0 in (77mm)
Wheelbase: 11.4 in (287mm) or 12.0 in (304.8mm) or 12.3 in (312.4mm)
Weight: 4.0 lb (1.81kg)
Chassis: SCX10, C-Channel Steel
Suspension: Solid Axle
Drivetrain: 4WD
Gear Pitch: 32 Pitch
Kit/RTR: Kit
Shock Type: Coil-Over 2.4 - 3.5 in (61-90mm)
