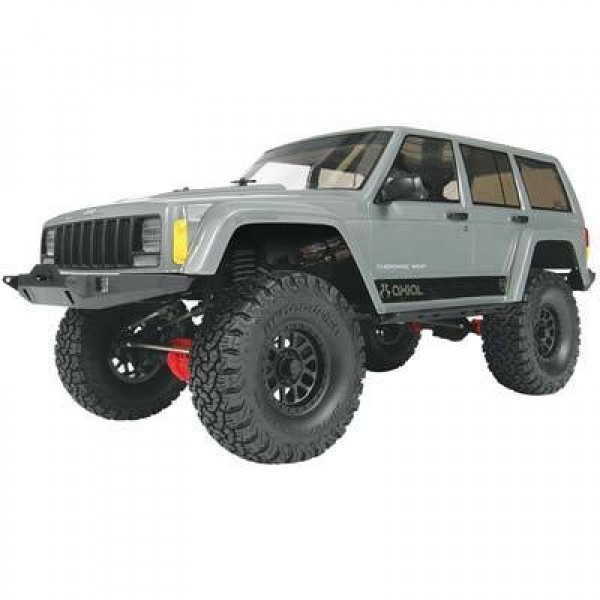

Axial SCX10 II Electric 4WD 1/10 2000 Jeep Cherokee ready to run

The SCX10™ has been the vehicle of choice for scale trail fun! For the past 8 years the SCX10™ has been the staple vehicle platform for scale trail enthusiasts around the world. Axial was one of the first companies to embrace R/C rock crawling and the first to mass produce a scale trail truck. Axial has been watching trends, tirelessly testing, and experimenting to create the next evolution of the SCX10™. The SCX10™ II is the culmination of many years of development, furthering aesthetic realism while maximizing trail performance. The next generation of SCX10™ is here!

The original AX10™ axle was developed in 2007 for Axial’s first kit, the AX90001 Axial AX10™ Scorpion RC Comp 10 - 1/10th Scale Rock Crawler - Electric Kit. In 2008, the AX10™ axle was used in the SCX10™ chassis, which paved the way for the scale trail scene.

While developing the next iteration of axles such as the AR60™, we started thinking about what kind of axle would be more suited for the future of the SCX10™. Our design of a new axle needed to feature three key points. First, we wanted the axle housing to visually quench the thirst of scale enthusiasts. Second, we needed to create a gear set with the technical attributes to overcome the torque twist that is often associated with smaller gear sets. Third, the axle itself needed to be durable.

After seven years of utilizing the original AX10™ axle and two years of development, Axial is proud to introduce the industry's first high pinion gear set in our newly developed AR44 axle!

• Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
• Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for increased steering angle, full ball bearing drivetrain
• Transmission: AX10 three gear layout, metal motor plate, adjustable ratio for high speed or competition level crawling speed
• Slipper Clutch: Dual pad design for added surface area
• Motor: 35 turn, brush equipped, water resistant, integrated cooling fan
• Radio: Tactic TTX300 3-channel SLT radio with TR325 Receiver, programmable 3rd channel for operating two speed transmission winches or lights
• Steering Servo: Tactic TSX45 metal gear, water resistant, 151oz/in torque rating, dual ball bearings
• ESC: Axial AE-5 waterproof, switchable between LiPo or NiMH operation with a jumper, male star plug lead
• Spur Gear: 56T 32-pitch Pinion Gear 15T 32-pitch
• Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
• AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist
• Body: Painted 2000 Jeep Cherokee
• Wheels: 1.9" Method, composite plastic construction, black in color
• Tires: BF Goodrich A/T KO2, S30 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide
• Shocks: Coil over, oil filled, steel springs, white in color
• Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications, all steel links
• Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
• Bumpers: Scale front and rear bumpers and rock sliders licensed by JCR Offroad, lenses in bumpers for light kit (light kit not included)

Body: Pre-painted
Completion Level: Ready-To-Run
Drivetrain: 4WD
Gear Pitch: 32-Pitch
Ground Clearance: 3.0 in (77mm)
Height: 10.5 in (268mm)
Length: 22.1 in (562mm)
Motor Size: 35T
Motor Type: Brushed
Radio: Tactic TTX300 3-CHANNEL SLT RADIO, 2.4GHz
Servos: Tactic TSX45 Servo. Torque: 6.0V 151 oz-in, 4.8V 143 oz-in
Size/Scale: 1/10
Speed Control: AE-5, forward/reverse, drag brake, 3S LiPo compatible, waterproof
Tire Compound: S30
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Weight: 4.5 lb (2.04 kg)
Wheel Diameter: 1.9
Wheelbase: 12.3 in (313mm)
Width: 8.9 in (226mm)
AR44™ HI-PINION AXLES:
In 2008, the AX10™ axle was used in the launch of the SCX10™ chassis platform. While developing the next iteration of axles such as the AR60, the thought process began on what kind of axle would be best for the future of the SCX10™. Axial’s development of a new axle needed to feature three key design points. First, an axle housing to visually quench the thirst of scale enthusiasts. Second, a gear set with the technical attributes to overcome the torque twist often associated with smaller gear sets. Third, the axle itself needed to retain the durability associated with the SCX10™, despite being delivered in a smaller axle housing. After seven years of utilizing the original AX10™ axle and two years of development, Axial is proud to introduce our newly developed AR44 axle with the industry's first high pinion gear set. The next chapter of the Axial SCX10™ begins with scale realism backed with true technological development!

KINGPIN ANGLE:
The AR44 axle was designed for both aesthetics and functionality. To improve upon the older AX10 axle, we designed the steering components with an 8 degree kingpin angle which results in a positive scrub radius. Making this change to the pivot point means less tire scrub for steering efficiency and less load on the steering servo.

35T BRUSHED MOTOR, WATER RESISTANT:
Providing an even balance of speed and crawling, the 35-turn brushed motor features a worry-free design with an integrated cooling fan allowing for extended periods of use. Easy operation: no tuning, no fuel, and no loud exhaust noise. Just plug 'n' go!

AX10™ TRANSMISSION:
The ultra compact transmission allows for a wide range of gearing choices. The overall ratio can be adjusted using different pinion and spur gear choices allowing super high speed or competition level crawling speed.

WB8 HD WILDBOAR™ DRIVESHAFTS:
WB8 HD Wildboar™ front and rear driveshafts feature an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material which reduces flex and fatigue.

ADJUSTABLE WHEELBASE:
This chassis is designed at 12.3” wheelbase length, but is easily adjusted to either a 11.4” or 12.0” wheelbase (optional link kits sold separately). Axial designed the chassis so that all the wheelbase adjustability happens out back without sacrificing front-end suspension geometry. Simple removal and installation of the suspension links and changing the drive shaft length allows an easier way to adjust the wheelbase.

2000 JEEP® CHEROKEE BODY:
Pre-painted body with molded scale detail parts (Grill with clear lenses, mirrors, door handles and liftgate trim panel). Throughout the rich history surrounding the Jeep® brand, there have been several influential vehicles hailing from the seven-slot stable, one of which is the Jeep® Cherokee (XJ). Possibly considered as the dawn of the modern SUV, the XJ was first presented 1984 as one of the first small SUV’s introduced into the American market, which carried on until 2001. During its 17yr production run, the XJ was built on several continents for world wide exposure, offered in either a 2-door or 4-door configuration, available in several different trim levels along with either a 2wd or 4wd drivetrain. Under the hood featured three different engine options consisting of 2.5L I4 AMC (125hp @ 5400rpm and 150lb/ft of torque @ 3250rpm), 4.0L I6 OHC AMC (193hp@4600rpm and 231lb/ft of torque @ 3000rpm), and a Euro spec only turbo diesel I4 OHV (114hp@3900rpm and 221 lb/ft @ 2000rpm). In 97’, the XJ received a facelift that updated design queues focused on aerodynamics, body stiffness, styling as well as the spare tire being relocated from the rear bumper to inside the cab. The stiffer uni-body construction brought forth improvements in noise cancellation and vibrations while aerodynamics improved engine efficiency.
