Overview
Live the rich history of JeepThe SCX10™ has been the vehicle of choice for scale trail fun! For the past 8 years the SCX10™ has been the staple vehicle platform for scale trail enthusiasts around the world. Axial was one of the first companies to embrace R/C rock crawling and the first to mass produce a scale trail truck. Axial has been watching trends, tirelessly testing, and experimenting to create the next evolution of the SCX10™. The SCX10™ II is the culmination of many years of development, furthering aesthetic realism while maximizing trail performance. The next generation of SCX10™ is here!
The original AX10™ axle was developed in 2007 for Axial’s first kit, the AX90001 Axial AX10™ Scorpion RC Comp 10 - 1/10th Scale Rock Crawler - Electric Kit. In 2008, the AX10™ axle was used in the SCX10™ chassis, which paved the way for the scale trail scene.
While developing the next iteration of axles such as the AR60™, we started thinking about what kind of axle would be more suited for the future of the SCX10™. Our design of a new axle needed to feature three key points. First, we wanted the axle housing to visually quench the thirst of scale enthusiasts. Second, we needed to create a gear set with the technical attributes to overcome the torque twist that is often associated with smaller gear sets. Third, the axle itself needed to be durable.
After seven years of utilizing the original AX10™ axle and two years of development, Axial is proud to introduce the industry's first high pinion gear set in our newly developed AR44 axle!Includes:
- (1) RTR SCX10 II Jeep 4WD All Terrain, Shocks, Wheels, Tires, Painted Body, Rock Sliders, Radio, ESC, Motor, Decals and Waterproof Receiver Box
- (1) User Manual
Requires:
- 540 size 4-pole brushless motor recommended
- Compatible ESC
- 2-channel radio with high torque steering servo
- 6-cell NiMH or 2-3S LiPo battery
- Suitable charger
- Building and track equipment
features
- Chassis: Scale steel C-channel side rails with adjustable body mount, adjustable bumper mounts with swaybar mounting points, mounting points for optional 2-speed and servo winch, adjustable chassis mounted servo system
- Drive: Full time 4WD locked drivetrain with WB8 HD Wild Boar driveshafts, UVJ style front driveshafts for increased steering angle, full ball bearing drivetrain
- Transmission: Two-speed capable, all metal gear with transfer case design that allows optimal position for drive shafts
- Slipper Clutch: Dual pad design for added surface area
- Spur Gear: 56T 32-pitch Pinion Gear 15T 32-pitch
- Battery Tray: Easy access front mount, accomodates batteries up to 1.2 x 1.7 x 5.8" (32x44x147mm) 3S, 5000mAh
- Front and Rear Axles: Hardened steel
- AR44 Hi-Pinion Axle: Hypoid cut CNC metal gears, optimized gear ratio for reduced torque twist, optional gearing choices, one- piece axle housing, increased clearance, larger load rated bearings for durability, 8° kingpin axle eliminates tire scrub, single piece axle housing, one-piece all metal locker, 10° increment adjustments for knuckle carriers and straight axle adapters, optimized gear ratio; 3.75 compared to 2.92 previously, for less torque twist

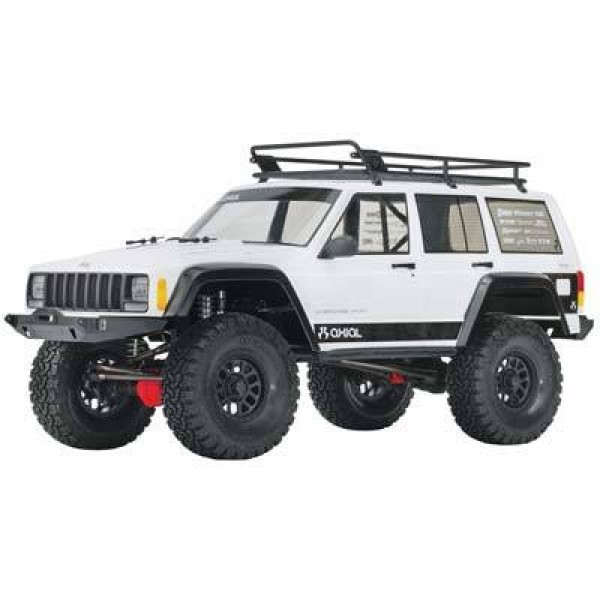

- Body: Clear Jeep Cherokee with JCR Classic Rock Sliders, Pre-runner Roof Rack, and Vanguard Bumpers
- Wheels: 1.9" Method, composite plastic construction, black in color
- Tires: BF Goodrich A/T KO2, sticky R35 compound, 4.65" (118mm) outer diameter, 1.7" (42.5mm) wide
- Shocks: Icon polished, 7mm diameter shafts, aluminum body, rebuildable
- Suspension: Optimized suspension geometry with integrated mounts upper and lower aluminum links, 4-link design reduces axle steer and torque twist, and guards against suspension wrap-up in high- power applications
- Steering: Proper CMS geometry using 3-link setup with panhard bar, 45° steering angle
Body: ClearSpecs
Completion Level: Kit
Drivetrain: 4WD
Gear Pitch: 32-Pitch
Ground Clearance: 3.0 in (77mm)
Height: 10.5 in (268mm)
Length: 22.1 in (562mm)
Pinion: 15T
Shock Type: Aluminum
Size/Scale: 1/10
Spur Gear: 56T
Vehicle Type: Rock Crawler
Water-Resistant: Yes
Weight: 4.5 lb (2.04 kg)
Wheel Diameter: 1.9
Wheelbase: 12.3 in (313mm)
Width: 8.9 in (226mm)Product Videos
JEEP® XJ BODY:Features Overview
Throughout the rich history surrounding the Jeep® brand, there have been several influential vehicles hailing from the seven-slot stable, one of which is the Jeep® Cherokee (XJ). Possibly considered as the dawn of the modern SUV, the XJ was first presented 1984 as one of the first small SUV’s introduced into the American market, which carried on until 2001. During its 17yr production run, the XJ was built on several continents for world wide exposure, offered in either a 2-door or 4-door configuration, available in several different trim levels along with either a 2wd or 4wd drivetrain. Under the hood featured three different engine options consisting of 2.5L I4 AMC (125hp @ 5400rpm and 150lb/ft of torque @ 3250rpm), 4.0L I6 OHC AMC (193hp@4600rpm and 231lb/ft of torque @ 3000rpm), and a Euro spec only turbo diesel I4 OHV (114hp@3900rpm and 221 lb/ft @ 2000rpm). In 97’, the XJ received a facelift that updated design queues focused on aerodynamics, body stiffness, styling as well as the spare tire being relocated from the rear bumper to inside the cab. The stiffer uni-body construction brought forth improvements in noise cancellation and vibrations while aerodynamics improved engine efficiency.
WB8 HD WILDBOAR™ DRIVESHAFTS:
WB8 HD Wildboar™ front and rear driveshafts feature an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material which reduces flex and fatigue.
1.9 BFGOODRICH ALL-TERRAIN T/A® KO2 TIRES - R35:
What lies between the dirt and metal are the tires - your connection to the trail below. When it comes to tough terrain, adventure seekers reach for BFGoodrich All-Terrain T/A® KO2 tires for their dependability on the roughest backroads.
1.9 METHOD MESH WHEELS:
In an industry that's all about the latest and greatest, while taking advantage of styling trends, sometimes the 'less is more' approach is quite refreshing and the mesh wheel offers just that. Clean, simple and METHOD STRONG! These officially licensed METHOD Mesh Wheels are replicated in true form for durability and a clean line look.
ALL ALUMINUM SUSPENSION LINKS:
The suspension geometry utilizes a 4-Link design for the rear which is optimized to reduce axle steer and torque twist. It also helps with steep off-camber climbs by having the proper amount of anti-squat and roll characteristics. The 4-Link system also aids against suspension wrap-up in high power applications.
SCX10 II™ TRANSMISSION:
Scale looks on the outside, genuine Axial gears on the inside! The SCX10™ transmission received a design makeover with special attention paid towards aesthetics by mimicking a real transmission with a bell housing, oil pan and a 4X4 transfer case! And that’s just the beginning. By sitting the transfer case lower into the chassis and centering the driveshafts with the axle input housings, Axial has created a more efficient driveline with better driveshaft angles which puts less stress on moving parts. Better driveshaft angles coupled with hi-pinion axles IS scale realism backed with performance. Also includes full set of ball bearings and all metal internal gears for strength and durability.- Specs
Product Specifications
Part Number AX90046 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Body Clear Completion Level Kit Drivetrain 4WD Gear Pitch 32-Pitch Ground Clearance 3.0 in (77mm) Height 10.5 in (268mm) Length 22.1 in (562mm) Pinion 15T Shock Type Aluminum Size/Scale 1/10 Spur Gear 56T Vehicle Type Rock Crawler Water-Resistant Yes Weight 4.5 lb (2.04 kg) Wheel Diameter 1.9 Wheelbase 12.3 in (313mm) Width 8.9 in (226mm) - Reviews
