Overview

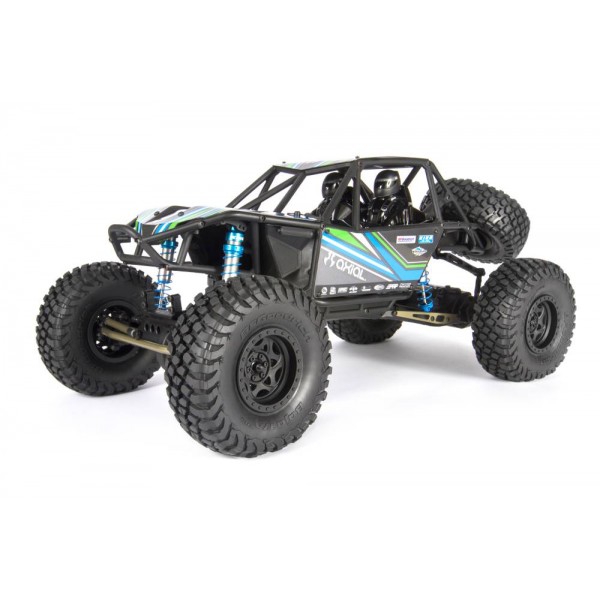

The RR10 Bomber build-it-yourself kit is loaded with features allowing you to customize it and add your own electronics for the ultimate rock racer! Building on the current, successful ready-to-run model, this kit version includes a wide variety of desirable option parts that deliver next level performance and durability. Hard anodized aluminum suspension links, hard anodized aluminum steering links, long travel rear sway bar, hardened steel universal axles allowing up to 50 degrees of steering, aluminum lower link plates, and King adjustable machined aluminum shocks, all riding on sticky BFGoodrich® Baja T/A® KR2 tires wrapped around 2.2 Walker Evans Racing beadlock wheels. We've also included heavy duty bevel gears in the front and rear axles for improved gear mesh, and increased strength.
Includes:
- (1) RTR Axial RR10 Bomber Kit with Tires, Wheels and Interior Detail including two full color decal sheets with enough graphics for two completely unique looks
- (1) User Manual
Requires:
- 2-3S LiPo Battery
- Suitable Charger
- 540 brushed or brushless Motor
- Compatible ESC
- 2-channel Radio with high torque steering servo
- Paint, building and maintenance equipment
features
- Chassis: Licensed Bomber Fabrication scale tube, high-strength composite plastic
- Drive: Four wheel shaft, front universals, HD machined 38/13 differential gears
- Front and Rear Driveshafts: WB8 HD Wildboar, updated design with larger diameter cross pin with a 2mm hex drive for added strength, center splined slider floater tube with added material that reduces flex and fatigue, captured cross pin design offers greater greater durability and easier maintenance than set screw design
- Links: Aluminum upper and lower
- AR60 OCP Axle: High-strength composite material, tubes reinforced with boxed-in axle truss, off-center pumpkin, updated steering knuckles for dual shear & elimination of secondary bolt on plate, updated diff cover and servo mount for new look
- Transmission: RR10 specific all metal internal gears, full ball bearings, single speed w/high gear for higher speed, two-speed component sold separately
- Slipper Clutch: Dual slipper design, 32P 56T spur gear for high- torque applications
- Motor Mount: Integrated with transmission, wide range of movement for endless gearing options
- Shocks: Clear coated machined aluminum body King shocks, precision machined pistons for smooth performance throughout range of travel, super soft blue springs, optional front & rear secondary shock mounts, dual shear shock mounting locations, machined shock caps, machined shock collars
- Suspension: 4-link, rear swaybar, rear upper aluminum links, rear lower link stiffening plates
- Wheels: 2.2" Walker Evans Racing, black in color, beadlocks, 12mm hex
- Tires: BF Goodrich Baja T/A KR2, R35 compound
- Steering: Direct, updated knuckles for dual shear, eliminates secondary bolt-on plate, aluminum steering tierod and drag link
- Body: Clear
- Interior: Polycarbonate tray w/driver figures and dashboard, three pairs of black styrene helmets (motorsport, open skull face & motorcross), scale molded shock reservoirs
- Battery Tray: Forward mount easy access
Completion Level: KitSpecs
Drivetrain: 4WD
Gear Pitch: 32-Pitch
Ground Clearance: 2.8 in (72mm)
Height: 9.0 in (230mm)
Length: 22.4 in (570mm)
Shock Type: Aluminum
Size/Scale: 1/10
Tire Compound: R35
Vehicle Type: Rock Racer
Water-Resistant: Yes
Weight: 6.25 lb (2.83 kg)
Wheel Diameter: 2.2
Wheelbase: 14.75 in (375mm)
Width: 11.0 in (280mm)Product Videos
HARD ANODIZED MACHINED ALUMINUM STEERING LINKS:Features Overview
Our machined aluminum steering links give you more precise steering feel and response to help keep your rig pointed in the right direction. They’re hard anodized and use larger and stronger M4 hardware for durability.
KING ADJUSTABLE MACHINED ALUMINUM SHOCKS:
The included aluminum King Shocks feature precision machined pistons which offer smooth performance throughout the range of travel. Made to tight tolerances, these aluminum shocks feature clear coated polished aluminum bodies, machined aluminum caps and aluminum preload spacers for precision shock adjustments. The rear shocks are mounted on the links rather than at the axle, allowing for more suspension travel which is better for high speed handling.
EASY ACCESS TO ELECTRONIC COMPONENTS:
All electronics are routed and part of skid plate assembly. Simply drop the skid plate and remove the shocks at the chassis to gain access to the electronic components.
WB8 HD WILDBOAR™ DRIVESHAFTS, FRONT AND REAR:
The WB8 HD driveshafts feature an updated design with a larger diameter cross pin (2x11mm) along with an M4 Screw Shaft (2mm hex drive) for added strength. A center splined slider floats between each end and features added material which reduces flex and fatigue.
AR60 OCP-AXLE™:
The AR60 OCP-Axle™ is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle.
BFGOODRICH® BAJA T/A® KR2 TIRES - R35 COMPOUND:
In the full-size world of off-road racing, BFGoodrich® tires have proven to be the ‘go-to’ tire for numerous racing victories, including Randy Slawson piloting them to victory at the 2013 and 2015 King of the Hammers. Axial’s version of this tire captures the same aggressive look and provides remarkable performance on a wide variety of surfaces. This is the perfect tire for this style of vehicle due to its high level of performance and diversity.- Specs
Product Specifications
Part Number AX90053 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Completion Level Kit Drivetrain 4WD Gear Pitch 32-Pitch Ground Clearance 2.8 in (72mm) Height 9.0 in (230mm) Length 22.4 in (570mm) Shock Type Aluminum Size/Scale 1/10 Tire Compound R35 Vehicle Type Rock Racer Water-Resistant Yes Weight 6.25 lb (2.83 kg) Wheel Diameter 2.2 Wheelbase 14.75 in (375mm) Width 11.0 in (280mm) - Reviews
