- Overview
Overview

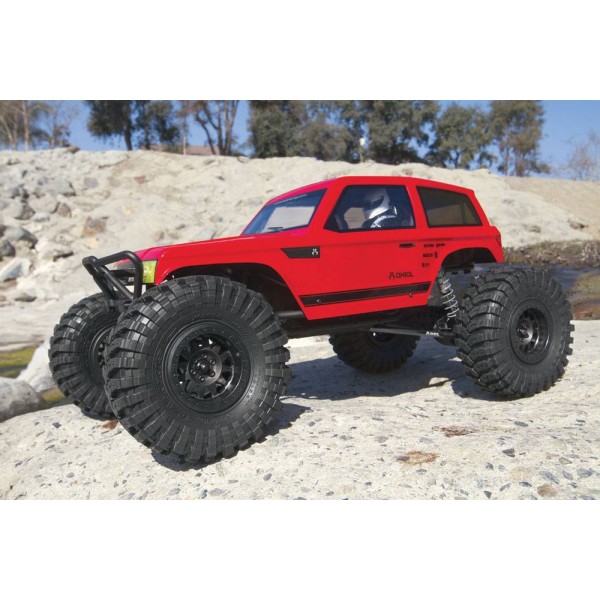

The Axial Wraith™ Spawn kit version is packed with performance features and option parts that you add as you build it. The virtually bulletproof AR60 OCP axles are ready to take the Spawn through its paces whether blasting through the wide open desert or hammering its way through the toughest rock trails. The 2.2 Maxxis Trepador tires are a proven true grip standard, wrapped around industry proven Method IFD™ beadlock wheels. Whether you are rock racing or backyard bashing, the Wraith™ Spawn is ready for action.
Length: 19.25" (490mm)Specs
Width: 11.2" (285mm)
Height: 9.1" (232mm)
Wheelbase: 14" (355mm)
Ground Clearance: 2.8" (72mm)
Weight: 5.45lbs (2.47kg) with electronicsProduct Videos
AXIAL WRAITH™ ROCK RACER:Features Overview
The Wraith™ Spawn is ready for rock spitting, dirt slinging, action. It's designed to tackle the rocks with ease and blast across open desert at full attack speed. The bottom line, the Wraith™ is tough as nails and prepared for any terrain.
FULL TUBE FRAME COMPOSITE CHASSIS:
The Wraith™ Spawn 1/10th Scale Electric 4WD Rock Racer features a realistic full tube-frame chassis design that is manufactured with high strength composite materials. The Wraith™ IS BUILT TO GO FAST and is not just a low speed rock crawler.
REALISTIC SCALE DETAILS:
The Wraith™ Spawn includes a realistic driver figure complete with a race suit and three interchangeable helmets. A motocross, open skull-face or motorsport version of the helmet are included. Choose your favorite style! And, the Spawn body is compatible with Wraith, AX10 and SCX10 chassis, and it comes clear with window masks and a complete set of decals so you can customize it however you'd like.
2.2 MAXXIS TREPADOR TIRES:
These fully licensed tires are molded in our performance proven S30 compound for excellent grip on any off-road surface. The aggressive tread pattern provides excellent traction on mud, rock, sand and everything in between, just like their 1:1 counterpart. These tires also feature a multi-stage staggered shoulder pattern providing improved control, even in the most difficult off-road terrain.
RECEIVER BOX, WATERPROOF:
The waterproof receiver box utilizes three different silicone seals: one for the antenna, one for the servo wires (includes three slots for three channels), and one acts as a gasket for the receiver box cover. No more stress when running in mud, water, or snow!
4-LINK SUSPENSION:
The suspension geometry utilizes a 4-Link design which is optimized to reduce axle steer and to have the proper amount of anti-squat and roll characteristics. The 4-Link system also aids against suspension wrap-up in high power applications. The lower suspension links are machined from aluminum to reduce flex and provide precise control over the roughest terrain. Measuring 7x87.5mm, these 7mm oversized diameter aluminum tubes are threaded at both ends for easy assembly and make for a durable 4-link suspension.- Specs
Product Specifications
Part Number AX90056 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Length 19.25" (490mm) Width 11.2" (285mm) Height 9.1" (232mm) Wheelbase 14" (355mm) Ground Clearance 2.8" (72mm) Weight 5.45lbs (2.47kg) with electronics - Reviews
