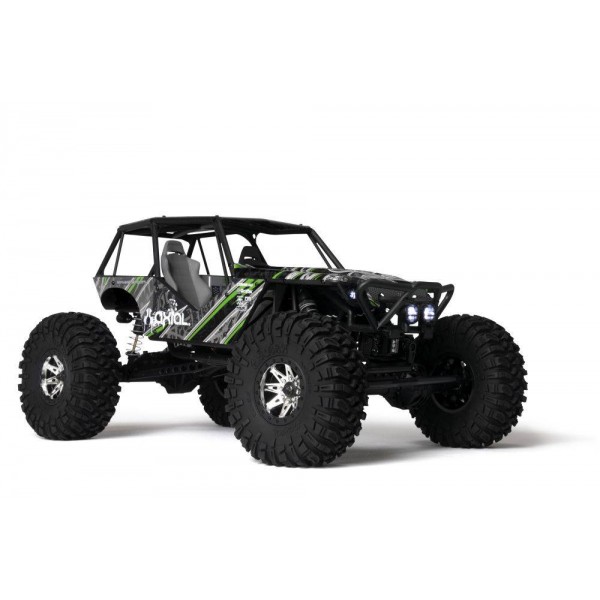

Axial Wraith 1/10 Electric 4WD RTR Rock Racer

The Wraith™ Ready-to-Run 1/10th Scale Electric 4WD Rock Racer is another "FIRST" for Axial with the first and most realistic full tube-frame chassis design that is manufactured with high strength composite materials. The Wraith™ IS BUILT TO GO FAST and is not just a low speed rock crawler.

• Chassis: Full tube composite construction with composite skidplate
• Drive: Four wheel shaft with splined plastic slider and screw shaft for a more positive lock to the output shaft
• Radio: AX-3 2.4GHz 2-channel with throttle and steering reverse and trim, metal gear steering servo and waterproof receiver box
• Motor: 20T
• ESC: AE-2 forward and reverse with drag brake
• Transmission: Steel output gears and slipper clutch equipped, upgradable for three function Dig feature
• Differentials: Locked type with easy access for rebuilding and maintenance
• Suspension: Four link
• Shocks: Oil-filled with silicone diaphragms and bushings and 3.5mm titanium nitride coated shafts
• Cockpit: Console and gauge detail with licensed Corbeau LG1 race seats
• Battery Tray: Sized for 6-cell 7.2V standard stick packs or 2S LiPo pack up to 1.8" (47mm) wide, 5.9" (150mm) long, 1.1" (28mm) high
• Tires: 2.2" Ripsaw
• Wheels: 8-spoke 2.2" Raceline Renegade black and chrome, 12mm hex mount
• Lights: Four front and two rear with 14 included light buckets that hold 3mm and 5mm lights (additional LEDs not included)

Completion Level: Ready-To-Run
Drivetrain: 4WD
Ground Clearance: 3.15 in (80mm)
Height: 9.3 in (237mm)
Length: 19.0 in (483mm)
Motor Type: 20T Brushed
Size/Scale: 1/10
Weight: 5.44 lb (2.48 kg)
Wheel Diameter: 2.2
Wheel Hex Size: 12mm Hex
Wheelbase: 13.9 in (353mm)
Width: 11.0 in (380mm)
GO FAST - GO EVERYWHERE!:
The realistic looks, drivability and ready-to-run ease make this vehicle the perfect blank canvas for the enthusiast looking for a vehicle to build upon. The Wraith™ can go in so many directions; desert sand, mountain trail runner, rock racer, mud bogger and any form of backyard bashing that can be dreamed up!

AXIAL AR60 OCP-AXLE™ (OFF-CENTERED PUMPKIN DESIGN):
True 4-wheel drive locked differentials are included for improved traction and an offset pumpkin provides more ground clearance and a better driveshaft angle. Additionally, the rear axle has been shaved of any unnecessary items and steering linkages that normally stick down have been removed for as much ground clearance as possible. The AR60 OCP-Axle™ is constructed from high strength composite material which has a low flex rate but is not as brittle as standard glass filled nylon. The AR60 OCP-Axle™ tubes are reinforced and beefed up with a boxed-in axle truss to distribute stress over a larger area. The combination of our axles and a true 4-link suspension gives you optimal performance for any terrain with the look of a real 1:1 vehicle.

DIG CAPABLE TRANSMISSION:
The Wraith™ transmission is easily upgradable for Dig (patent pending) function which, when installed, gives you a three function transmission. The transmission also includes all steel outputs. SPUR GEAR COVER
The protective transmission spur gear cover helps keep dirt and debris out of your pinion and spur gear for a quiet and efficient drivetrain. SLIPPER CLUTCH
Allows the motor to work more efficiently and greatly enhances the durability of the drivetrain allowing the transmission to slip in hard binds.

FULL TUBE FRAME CHASSIS:
The most realistic high strength composite tube frame chassis on the market. Our high strength composite plastic is impact resistant to help protect the Wraith™ from crash damage.

2.2 RIPSAW™ TIRES:
Ripsaw™ tires are mounted and pre-glued to 8-spoke Raceline Renegade Wheels right from the factory. The Axial 2.2 Ripsaw™ tire offers both a realistic and aggressive tread design for the ultimate scale appearance and performance. 2.2 RACELINE RENEGADE WHEELS
Pre-mounted 2.2 Raceline Renegade Wheels with 12mm hex mount which is reinforced with additional material and ribbing. Finished in a two-tone Black/Chrome scheme for great looks. VERTICALLY MOUNTED ESC
The AE-2 ESC is held in place vertically by a secure, clip-in style plastic mounting system just behind the radio box. Facing the rear of the truck helps keep debris and water away from the ESC.

20T MOTOR:
Tear up the terrain, be it flat out desert, rocky roads or crawling! Easy operation: no tuning, no fuel, no loud exhaust noise. Just plug 'n' go! Our design allows for optional 550 size motors to fit as well.

ESC WITH DRAG BRAKE:
The Axial AE-2 ESC was developed in partnership with Castle Creations and features LiPo cutoff, drag brake for tough crawling situations, a Tamiya style plug connector and is programmable via Castle Link™ (Castle Link™ not included).
