- Overview
Overview

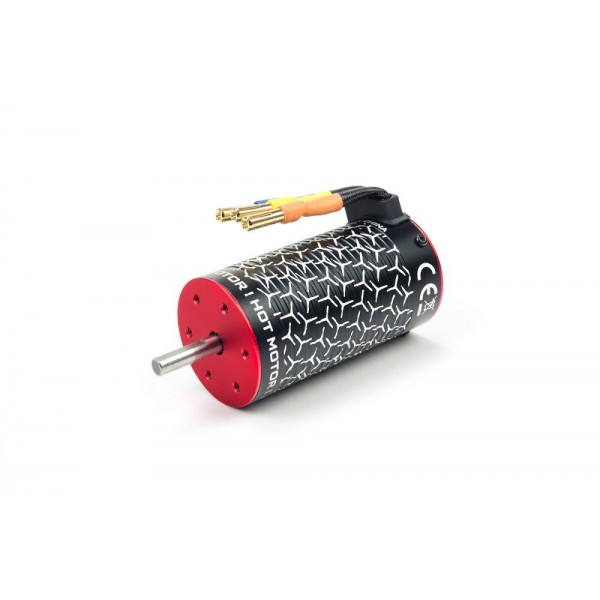

The BLX 3668 2400Kv brushless motor provides lots of speed and torque, and is perfectly balanced for use with the ARRMA BLX120 ESC unit.
Includes:
- (1) BLX 3668 2400Kv Brushless Motor
Notes:
Recommended for use with AR390264 - BLX120 BRUSHLESS 4S ESC
features
- A beautifully etched black aluminum motor can provides a premium look, while a 4 pole internal configuration keeps the power supply smooth and consistent
- Gold bullet connectors ensure fast and easy wire removal when you need to clean your vehicle
- The aluminum motor can provides increased heat dissipation via the finned body section
Motor Type: BrushlessSpecs
Motor Kv: 2400
Poles: 4 Pole
Motor Length: 68mm / 2.68"
Diameter: 36mm / 1.42"
Shaft Length: 18.5mm / 0.73"
Shaft Diameter: 5mm / 0.2"
Motor Mounting Hole Diameter: M3
Motor Cable Length (Including Connector): 45mm / 1.77"
Motor Connector Diameter: 4mm / 0.16"
Motor Weight: 228g / 8.04 oz- Specs
Product Specifications
Part Number AR390265 Motor Type Brushless Motor Kv 2400 Poles 4 Pole Motor Length 68mm / 2.68" Diameter 36mm / 1.42" Shaft Length 18.5mm / 0.73" Shaft Diameter 5mm / 0.2" Motor Mounting Hole Diameter M3 Motor Cable Length (Including Connector) 45mm / 1.77" Motor Connector Diameter 4mm / 0.16" Motor Weight 228g / 8.04 oz - Reviews
