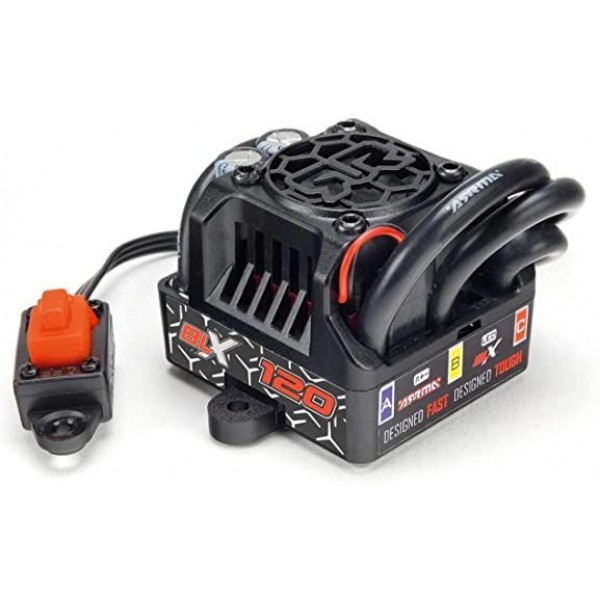

Arrma BLX120 Brushless Waterproof 4S ESC with 4mm Bullet Connector

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.

• Fitted with super-reliable EC5 connectors
• built-in cooling fan for reduced heat during intense driving action
• over voltage protection
• wo-stage LiPo cut off for added cell management
• The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.

Battery usage: 3S LiPo (11.1V) or 4S LiPo (14.8V)
Low Voltage Cut-Off (LVC): 3.4V per cell
Thermal Protection Temperature: 125°C / 257°F
Over-Voltage Protection: Over 17.2V
BEC Voltage: 6V
BEC Current: 3A
ESC Length: 43mm / 1.69"
ESC Height: 34mm / 1.34"
ESC Width: 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight: 150g / 5.3 oz
Receiver Wire Length: 170mm / 6.70"
Battery Wire Length: 225mm / 8.86"
Motor Wire Length (Including Connector): 200mm / 7.87"
Switch Length: 21mm / 0.83"
Switch Width: 13.3mm / 0.52"
Switch Height: 16mm / 0.63"
Motor Bullet Connector Size: 4mm / 0.16"
Wire Specifications: 12AWG
ESC Battery Connector Type: 2xEC5
