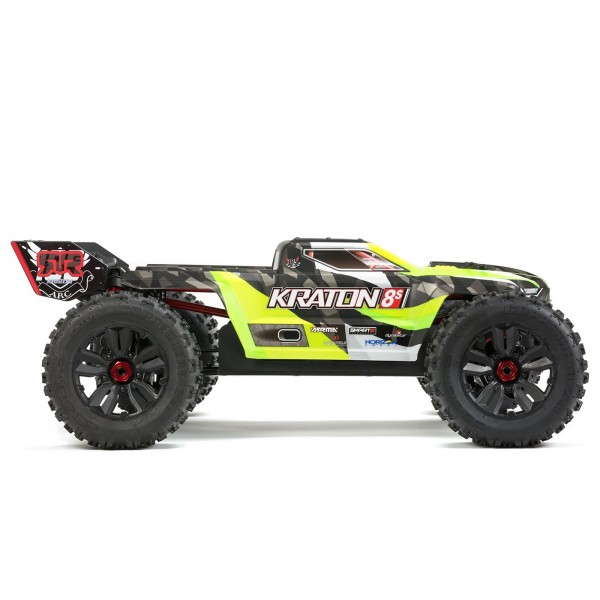

Arrma 1/5 KRATON 4WD 8S BLX Speed Monster Truck RTR: Green

Experienced bashers can shred big-time with the 1/5 scale ARRMA® KRATON™ 8S BLX 4WD Speed Monster Truck. DESIGNED FAST and DESIGNED TOUGH, it’s ready-to-run out of the box and comes with nearly everything you need — just add your preferred batteries and charger. The supplied Spektrum™ DX2E Active® transmitter and SR6100AT AVC® (Active Vehicle Control®) receiver take full advantage of the innovative telemetry technology found in the included Spektrum™ Smart Firma™ brushless motor and ESC. Download the free Spektrum™ Dashboard App to your mobile device to view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time. Dial-in extra stability with the radio’s AVC® system to carve corners and nail jumps without letting up on the throttle. The KRATON 8S BLX 4WD is capable of 55+ MPH speeds in optimum driving conditions using an 8S LiPo (2 x 4S LiPo batteries) and optional pinion gear (available separately). The speed potential is amazing — and you’ll be able to use it all.

Bigger than big and engineered for brute power and toughness, the ARRMA® 1/5 scale KRATON™ 8S BLX 4WD Speed Monster Truck takes your bashing ability to the next level. Its metal-reinforced design lets you blast up, over, and through bruising obstacles without worry. Metal shafts, turnbuckles and outdrives, plus all-metal internal gears, give the drivetrain and suspension system unstoppable strength. The anodized aluminum chassis plate features composite side pods and a triangular center brace for maximum durability. Ultra-thick composite front and rear shock towers hold massive 20mm bore, oil-filled adjustable shocks that soak-up bumps and jolts.

The power that sends the KRATON™ 8S BLX 4WD Speed Monster Truck charging easily over challenging terrain comes from its 1250Kv Spektrum™ Firma™ brushless motor. The torque and acceleration is incredible. For quick access, the motor is mounted with three bolts onto a sliding aluminum mount.

The waterproof electronics module — also designed for easy access — houses and protects more innovative Spektrum™ equipment. ARRMA® has equipped the KRATON™ 8S BLX 4WD Speed Monster Truck with a state-of-the-art Firma™ Smart 160A ESC and SR6100AT AVC® (Active Vehicle Control®) receiver. Innovative connectivity enables all the Smart electronics to send valuable telemetry data to the included Spektrum™ DX2E Active® transmitter without requiring multiple wires, sensors, modules and links. Just download the free Spektrum™ Dashboard App to your mobile device, which connects wirelessly via Bluetooth to the DX2E transmitter. Then you can view motor RPM, ESC temperature, receiver voltage, drive pack voltage and more data in real-time.

The ultra-tough KRATON™ truck body with high-downforce wing is available factory trimmed, painted and decaled in two striking color schemes. A center protection tower on the chassis interfaces with the roll cage for increased body durability. It all rides on multi-split spoke wheels with strong, durable aluminum wheel hubs, and multi-terrain dBoots® COPPERHEAD™ 2 SB tires with a tread pattern designed for extreme, all-terrain action.

• Laser-etched aluminum anodized chassis plate
• Strong composite chassis side pods
• Triangular structured center brace system for maximum durability
• Oil-filled adjustable shocks with massive 20mm bore
• Ultra-thick composite front and rear shock towers
• Easy-access 3-bolt sliding motor mount for quick motor removal
• Aluminum motor mount and hubs
• Heavy-duty drivetrain
• Durable steel driveshafts throughout
• Easy-access front and rear diff module design
• All-metal diff outdrives and gearbox internals
• Easy-access waterproof electronics module
• Heavy-duty dual spring servo saver
• Multi-split spoke wheels
• Durable wheel hubs for increased strength
• Multi-terrain dBoots® COPPERHEAD™ 2 SB tires
• Ultra-tough truck body and decals
• High downforce wing
• Integrated internal body protection tower
• Spektrum™ DX2E Active® 2.4GHz Radio with SR6100AT AVC® Receiver
• Spektrum™ Firma™ 160A Smart ESC
• Spektrum™ Firma™ 1250Kv Brushless Motor
• Spektrum™ S905 Metal-Geared Digital Servo
• 2-year limited warranty

Approximate Assembly Time: Less than 1 Hour
Ball Bearings: Full set
Batteries: Sold separately, Two Spektrum 4S 5000mAh50C Smart LiPos w/IC5 connector recommended
Body: Painted decaled and trimmed
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: 6061-T6 aluminum 0.16" (4mm) thick
Completion Level: Ready-To-Run
Differential: Bevel gear
Drivetrain: 4WD Shaft Drive
Final Drive Ratio: 25.06:1
Gear Pitch: 1.0 Module
Height: 10.47" (266mm)
Internal Gear Ratio: 9.06
Length: 29.92" (760mm)
Max Battery Dimensions: 5.47 x 1.8 x 1.4" (139 x 46 x 38mm)
Motor Size: 4985, 1250Kv
Motor Type: Brushless
Pinion: 17T
Radio: Spektrum DX2e 2-ch, w/SR6100AT AVC 3-ch receiver
Servos: Spektrum S905 high torque metal gear digital heavy-duty steering servo, 500 oz-in (36 kg-cm), 0.20 sec speed at 6V
Shock Type: Oil-filled coil-over
Size/Scale: 1/5
Speed Control: Spektrum Firma 160A Smart
Spur Gear: 47T
Suspension: Independent
Tire Diameter: 7.99" (203mm)
Tire Tread: dBoots Copperhead 2 SB
Track: Front and Rear 23.70" (602mm) distance between outer edges of wheels measured side-to-side
Vehicle Type: Monster truck
Water-Resistant: Yes
Weight: 24.2lbs (11kg)
Wheel Diameter: 4.88" (124mm)
Wheel Hex Size: 24mm Hex
Wheel Type: MT, 24mm hex
Wheel Width: 3.54" (90mm)
Wheelbase: 19.33" (491mm)
Width: 23.70" (266mm)
SPEKTRUM 2.4GHz DX2E ACTIVE RADIO & SR6100AT RECEIVER:
Ergonomic steering wheel for precise control
On-the-fly adjustable AVC® gain for personalized handling
Lightweight and ergonomic design for long bashing
2 channel radio system
2.4GHz technology built around DSMR technology
Full-range telemetry capabilities

SERVO:
Full-size 1/5th scale servo
Strong, metal gears used throughout
Waterproof and dustproof case
15 tooth output spline
Torque: 38kg-cm @6V
Speed: 0.20sec/60degree @6V
Dimensions: 2.36 x 1.14 x 2.17" (60 x 55 x 29mm)

SPEKTRUM™ FIRMA™ 4685 1250Kv BRUSHLESS MOTOR:
Beautifully etched aluminum can
4-pole construction for smooth and consistent power
6.5mm gold bullet connectors for reliable and efficient connection
Black anodized aluminum motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

SPEKTRUM™ FIRMA™ 160 AMP BRUSHLESS SMART ESC:
Waterproof and dustproof design
160A, 8S LiPo ready (3S*, 4S*, 6S* and 8S LiPo compatible)
Spektrum® Smart Technology
Fitted with reliable IC5™ connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, LVC sensitivity, reverse speed and motor timing settings
*3S, 4S and 6S are not recommended for the KRATON 8S BLX model
