- Overview
Overview

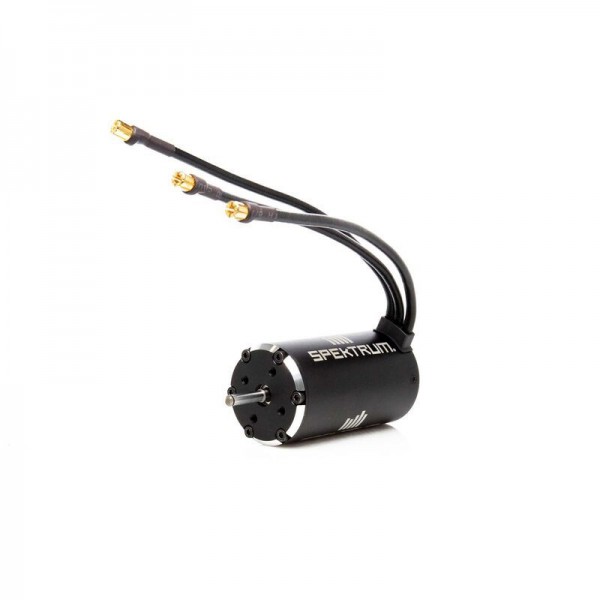

Perfect option for larger scale models looking to run a 8S Lipo powered setup. Low cog 4-pole 8-magnet rotor design, CNC machined aluminum housing, insulated high purity copper windings, high-quality alloy steel 5mm output shaft, and high-precision bearings for high durability and smooth rotation. Preinstalled with 6.5mm gold plated bullet connectors. Perfectly matched to the Firma 160 Smart ESC.
features
- Perfect upgrade for the ARRMA Limitless Speed Roller
- Hgh Efficiency Design
- High-quality 4-pole sintered rotors
- Includes 6.5mm gold plated bullet connectors
- Precision ball bearings and hardened steel 5mm shaft
Bushing Or Bearing: BearingSpecs
Cells: 4-8 cell LiPo
Connector Type: 6.5mm Bullet
Efficiency: 90%
Input Voltage: 12-35.2V
Maximum Continuous Current: 180A
Motor Design: Inrunner
Motor Type: Brushless
Number of Poles: 4
Outer Diameter: 1.9 in (49mm)
Output: 6300W
Overall Length: 3.3" (85mm)
Product Weight: 26.1oz (740g)
Recommended Speed Control: Spektrum Firma 160 Smart ESC
RPM/Volt (kV): 1250kV
Shaft Diameter: 3/16" (5mm)
Wire Gauge: 10 AWG- Specs
Product Specifications
Part Number SPMXSM1200 Bushing Or Bearing Bearing Cells 4-8 cell LiPo Connector Type 6.5mm Bullet Efficiency 90% Input Voltage 12-35.2V Maximum Continuous Current 180A Motor Design Inrunner Motor Type Brushless Number of Poles 4 Outer Diameter 1.9 in (49mm) Output 6300W Overall Length 3.3" (85mm) Product Weight 26.1oz (740g) Recommended Speed Control Spektrum Firma 160 Smart ESC RPM/Volt (kV) 1250kV Shaft Diameter 3/16" (5mm) Wire Gauge 10 AWG - Reviews
