Wildcat EP Brushless RTR Catamaran


LOADING IMAGES
Wildcat EP Brushless RTR Catamaran
$199.99

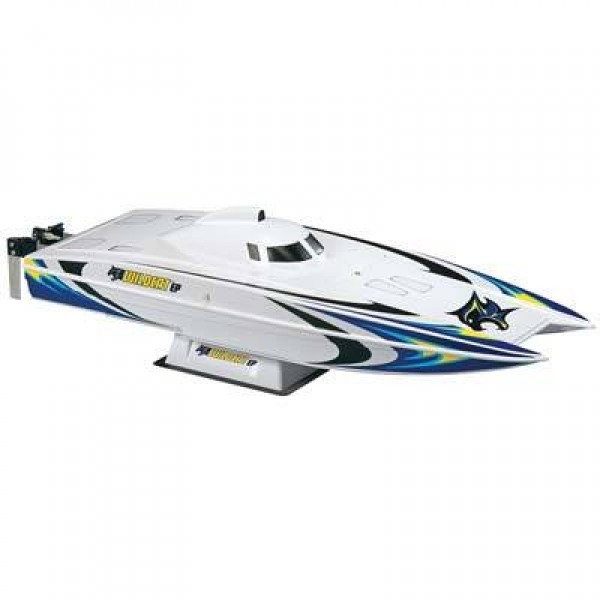

This is the Aquacraft Wildcat Brushless Catamaran. Built for speed and durability, it's a blast to control. A break-away rudder prevents being stranded during an impact while at high speeds capable from the Brushless motor.

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

High speed water action

Let the Wildcat EP loose and watch it fly! An 1800kV outrunner brushless motor delivers speed and efficiency. There's also a water-cooled LiPo-compatible 50A brushless controller with low-voltage cutoff, a stutter bump and Deans Ultra Plug connector. A Tactic TTX300 SLT radio system provides first-class control, and a “break-away” rudder system swings back upon impact to prevent damage to the hull.

Includes:

  • RTR Wildcat Catamaran
  • Motor
  • Radio
  • Steering Servo
  • ESC
  • Stand
  • Instruction Manual

Requires:

  • AA Batteries: Four for transmitter
  • LiPo Battery: 3S 11.1V at least 2000mAh
  • Battery Charger: Compatible with selected battery
  • LiPo Charging Sack and Shore Equipment

features

  • Hull: Molded ABS plastic with transom drain plug and preapplied graphics
  • Motor: 35-36-1800Kv brushless outrunner
  • Motor Mount: Water cooled aluminum with transom mounted water pickup
  • Drive System: Surface drive propeller system with 1/8" (3.2mm) shaft
  • Radio: Tactic SLT 2.4GHz TTX300 3-channel with fail safe, steering & throttle trim, servo reversing and steering rate adjustment, TR325 receiver
  • Electronic Speed Control: 50A water coooled, LiPo compatible, low voltage compatible and star plug
  • Propeller: Two blade 42mm diameter FRP (fiber reinforced plastic)
  • Rudders: Two aluminum construction with breakaway shear bolt design

Specs

* Boat
Length: 26.5" (673mm)
Overall: 29" (737mm)
Beam: 9" (229mm)
Height: 5.5" (140mm)
Weight: 32oz (89grams) RTR w/o batteries
* Motor
KV Rating: 1800kv
Operating Current: 3.8A, 8V/DC (without loading, 8V/DC)
Input: 3-S LiPo battery
Max Current: 55A/15S
Shaft Diameter: 4mm
Motor Resistance: 37 miliohms
Dimension: 1.4x1.42" (35mmx36mm)
Weight: 3.77oz (107g) ±.35oz (10g)
Plugs: 4mm
*ESC
Amps: 50 amp continuous
Max Amps: 65A 10 sec
Voltage Range: 9V-12.6V
BEC: 5V 2A
Motor Connectors: 4mm bullet (3)
Battery Connector: Star
Stutter Voltage: 9.7 volts
LVC: 9 volts
Wire Gauge: #14
Max Output Power: 500 watts
On-Resistance: 0.0015 ohms
Operating Frequency: 8KHZ PWM, 16MHZ MCU
Timing Angle: Auto
Specs

Product Specifications

Part NumberAQUB1811
Kit TypeRTR
Length26.5" (673mm)
Overall29" (737mm)
Beam9" (229mm)
Height5.5" (140mm)
Weight3.77oz (107g) ±.35oz (10g)
KV Rating1800kv
Operating Current3.8A, 8V/DC (without loading, 8V/DC)
Input3-S LiPo battery
Max Current55A/15S
Shaft Diameter4mm
Motor Resistance37 miliohms
Dimension1.4x1.42" (35mmx36mm)
Plugs4mm
Amps50 amp continuous
Max Amps65A 10 sec
Voltage Range9V-12.6V
BEC5V 2A
Motor Connectors4mm bullet (3)
Battery ConnectorStar
Stutter Voltage9.7 volts
LVC9 volts
Wire Gauge#14
Max Output Power500 watts
On-Resistance0.0015 ohms
Operating Frequency8KHZ PWM, 16MHZ MCU
Timing AngleAuto
