- Overview
Overview
Full aluminum case low profile servo for 1/10 applications! Featuring near 10kg's worth of Torque at 7.4v, and a speed of under a tenth of a second will make this servo fit for drift and on-road racing! Full aluminum case ensures all the heat gets dissipated!

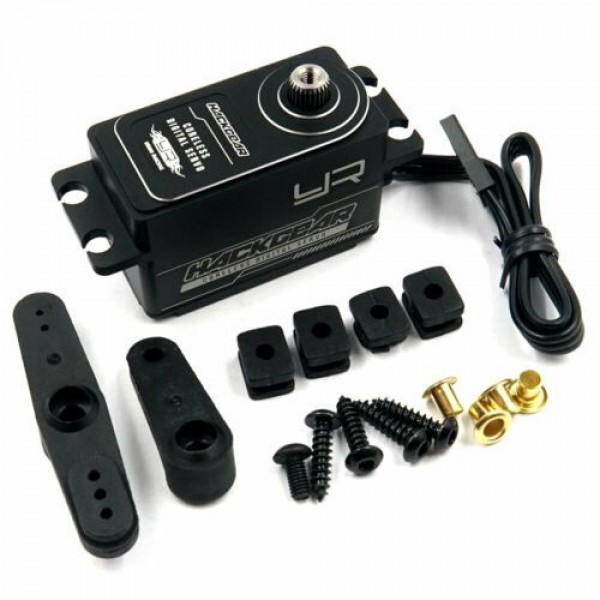

Includes:
- (1) Hackgear Aluminum Low Profile Servo
- (1) Servo Horns
- Mounting Hardware
features
- For: 1/10 Drift, On Road RC
- Material: Aluminum Case
- Premium Value at lower price point
- Long wears titanium gear and copper gears
- Digital precision provides great accuracy and performance
- Ball bearing-supported output 25T shaft
- Compatible with all types of Radio system
- ESC Min BEC Output Recommendation: 5.75@3A
Type: DigitalSpecs
Operating Voltage Range: 4.8 -6.0Volts DC
Bearing Type: Dual Ball Bearings
Speed (s/60¢X@4.8V/6.0V): 0.10/ 0.09
Torque kg./cm. (4.8V/6.0V): 6.72/7.94
Size: 40.9mm x 20mm x 25.2mm
Motor Type: Coreless
Dead Band Width: 2µs
Connector Wire Length: 11.8 in. / 300 mm.
Connector Wire Gauge: 25 AWG Black Wire
Connector Type: Futaba
Gear Type: Titanium Gears + Copper Gears
Frequency: 330Hz
Shaft: 6mm 25T- Specs
Product Specifications
Part Number YEA-YE-0033BK Type Digital Operating Voltage Range 4.8 -6.0Volts DC Bearing Type Dual Ball Bearings Speed (s/60¢X@4.8V/6.0V) 0.10/ 0.09 Torque kg./cm. (4.8V/6.0V) 6.72/7.94 Size 40.9mm x 20mm x 25.2mm Motor Type Coreless Dead Band Width 2µs Connector Wire Length 11.8 in. / 300 mm. Connector Wire Gauge 25 AWG Black Wire Connector Type Futaba Gear Type Titanium Gears + Copper Gears Frequency 330Hz Shaft 6mm 25T - Reviews
