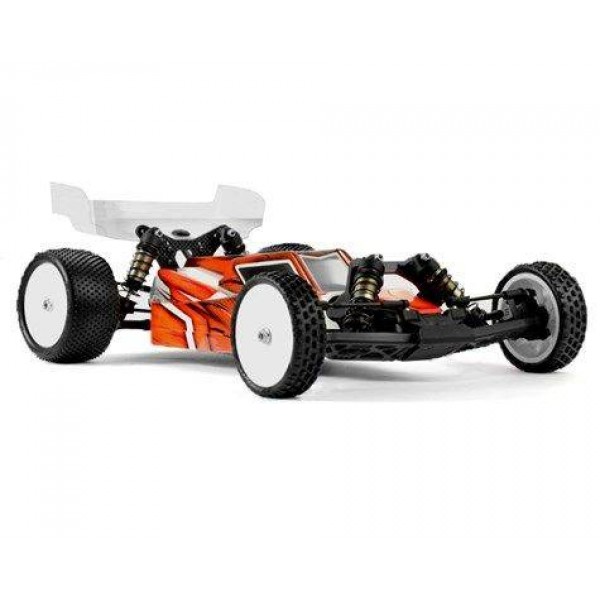

Xray XB2 2019 Carpet Edition 2WD Off-Road Buggy Kit

The XRAY XB2C 2019 Carpet Edition 2WD Off-Road Buggy Kit is the epitome of high-performance and distinctive design. The XB2 offers highest performance, responsive handling, and traditionally exceptional XRAY quality, engineering, and design. The superb craftsmanship and attention to detail are clearly evident everywhere on the XRAY XB2.

XB2 was designed around a no compromise platform; the attention to detail creates a low maintenance, extra long life electric buggy. The ultra-low center of gravity (CG) and optimized weight balance makes set-up, driving, and maintenance easy and quick.

The XRAY XB2 was created by blending highest-quality materials and excellent design. On high-speed flat tracks or bumpy tracks, whether driving for fun or racing to win, the XB2 delivers outstanding performance, speed, and precision handling.

• XB2 2019 Updates:
• All-new Redesigned multi-function rear upright helps to generate more traction & increase stability
• All-new Redesigned longer rear driveshafts with 2.5mm pins for smoother operation
• All-new Redesigned rear wheel axle with safety collar, featuring XRAY's unique multi-position driveshaft adjustment to vary driveshaft length
• All-new Redesigned longer rear camber link to accommodate all roll center alternatives
• All-new Redesigned SLP (Super Low Profile) front & rear shock towers for increased cornering speed
• All-new Redesigned SLP (Super Low Profile) front body shocks & shock shafts
• All-new Redesigned SLP (Super Low Profile) front & rear shock springs for improved ride height setting
• All-new Redesigned spur gear cover protects the body shell from the spur gear
• All-new Redesigned body gives increased speed & improved handling
• Hard suspension blocks with 1-slot steering block extensions for improved steering characteristics
• All-new Redesigned rear wheels with deeper recesses for the wheel nuts
• Greased ball-bearings for front steering blocks and rear uprights increase lifespan in dusty conditions

Class: 1/10 electric 2WD off-road car
Width: Adjustable 245-250mm
Length: 274mm (394 with wing)
Wheelbase: Adjustable 282-285mm
Weight (approx ready-to-run weight): 1520g
XB2 Concept:
The XB2 is typically XRAY–premium, professional, high competition R/C car for the most demanding racers, developed with attention to the smallest details and backed by premium service & support…a luxury masterpiece.

USA Champion:
At one of the world’s most competitive off-road race – the ROAR National Championship, it was XRAY’s Ty Tessmann who brought the first ROAR National Champion title to the XB2 platform. Tested and successfully run in the highest competition races now you can enjoy the winning platform.

Multi-Adjustable Rear Suspension:
All-new redesigned adjustable rear suspension features the new rear upright, unique multi-length adjustable CVD drive shafts, and longer camber link. This new system creates a huge variety of roll center adjustments for different track conditions. Changing roll center has never been quicker or easier.

Rear Uprights:
All-new rear uprights feature multiple set-up options for upper & lower roll centers. The upper roll center is adjusted at the camber linkage via shims (up/down & in/out), while the lower roll center is adjustable via eccentric inserts for 9 different positions (up/down & in/out).
The multi-function uprights have the upper roll center position in the middle of axis of the connecting joint of the drive shaft to help generate more traction and increase stability.
There are three different uprights available: hard (included), graphite (optional), and aluminum (optional), each suitable for particular track conditions.

Drive Shafts:
To accommodate the new, fully-adjustable rear upright configuration, the all-new drive shafts are longer. The all-new safety collar eliminates the clearance of the drive shaft and prevents the drive pin from getting loose.
XB2 constant velocity drives (CVDs) are manufactured from world-renowned HUDY Spring Steel™ and feature 2.5mm drive pins for maximum drivetrain efficiency. The drive shafts are some of the world‘s thinnest yet most durable drive shafts used in electric off-road cars. Hardened with a proprietary hardening process, the drive shafts provide unbeatable lifespan and reliability.

Camber Link:
With the all-new multiple roll center adjustment possibilities, the rear camber link is longer to accommodate all the different roll center position alternatives.

Steering Blocks:
The XB2 now includes the popular hard suspension blocks and 1-slot steering block extensions to improve steering characteristics.
The tiny-yet-tough steering blocks are comprised of composite steering blocks and graphite extensions for variable Ackermann positions.
There are three different steering blocks available – medium (optional), hard (included), and graphite (optional), each suitable for particular track conditions.

Shocks:
All-new SLP (Super Low Profile) shock absorbers offer superior performance, especially for high-traction conditions where together with the SLP shock towers there is a reduced roll of the car, thus allowing the use of more droop for better landings. Both front shock bodies and shock rods were lowered.
The shocks are membrane-free while still allowing for easy, consistent building and rebound setting using a bleed-screw shock cap design.
Downstop is adjusted using composite shims under the pistons. Upstop travel is adjusted using composite shims under the shock collar.
The aluminum body, lower nut, and bleeder shock caps are all machined from premium Swiss 7075 T6 aluminum.
Shock rods are machined from special steel material, precision hand-ground for maximum smooth operation, and additionally hardened for improved lifespan.

Wheels:
The included XB2 wheels feature a new, redesigned countersunk center area to allow the wheel nut to be sunk deeper.
The wheels are perfect for high-competition racing. The wheels are made from a very flexible material, while still being ultra-durable to withstand impacts. The side of the wheel is aerodynamic for maximum performance. The wheels were designed to provide maximum traction.
Internal reinforcement ribs make the wheels as stable as possible and eliminate deformation. The wheels feature a 12mm internal hex.
