- Overview

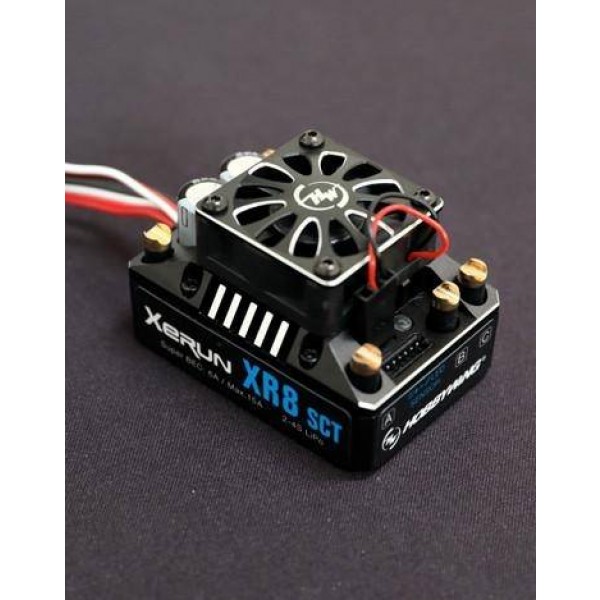

The Hobbywing XERUN XR8 SCT Pro Brushless ESC
features
- Next generation of Xerun SCT PRO ESC (HOBBYWING Best seller product)
- Super built-in BEC with the peak output current of up to 15A and switchable output voltage of 6V/7.2V;
- Advanced electronic switch with the lifespan of over 50000 times of switching on & off;
- High-efficiency heat-dissipating system;
- Special dynamic timing control program is available when this ESC runs in full-sensored mode*
- Innovative coasting function (patent pending)
- ESC customization by a LCD program box (Purchase separately) or Wifi Express Module (Purchase separately)
Cont./Peak Current: 140A/880ASpecs
Motor Type: Sensored / Sensorless Brushless Motor
Main Applications: 1/8th Buggy Competition, 1/10th STC, Monster Truck, On-road, Buggy, Truggy for High-level Races
Motor Limit: 2S LiPo ≤6000kv (36XX size)
Motor Limit: 3S LiPo ≤4000kv (36XX size)
Motor Limit: 4S LiPo ≤3000kv (36XX size)
LiPo/NiMH Cells: 2-4S LiPo, 6-12Cell NiMH
BEC Output: 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC)
Cooling Fan: Powered by the stable BEC output voltage of 6V/7.2V
Size/Weight: 54.1(L) x 37.2(W) x 36.1(H w/fan) / 90.5g (W/O Wires)
Programming Port: FAN/PRG Port
ESC programming: LCD Program box, WiFi module enabledProduct Videos
- Specs
Product Specifications
Part Number HWI30113301 Cont./Peak Current 140A/880A Motor Type Sensored / Sensorless Brushless Motor Main Applications 1/8th Buggy Competition, 1/10th STC, Monster Truck, On-road, Buggy, Truggy for High-level Races Motor Limit 4S LiPo ≤3000kv (36XX size) LiPo/NiMH Cells 2-4S LiPo, 6-12Cell NiMH BEC Output 6V/7.2V Switchable, Continuous Current of 6A (Switch-mode BEC) Cooling Fan Powered by the stable BEC output voltage of 6V/7.2V Size/Weight 54.1(L) x 37.2(W) x 36.1(H w/fan) / 90.5g (W/O Wires) Programming Port FAN/PRG Port ESC programming LCD Program box, WiFi module enabled - Reviews
