Venom 430mAh 2S 7.4V 30C LIPO , JST

Overview

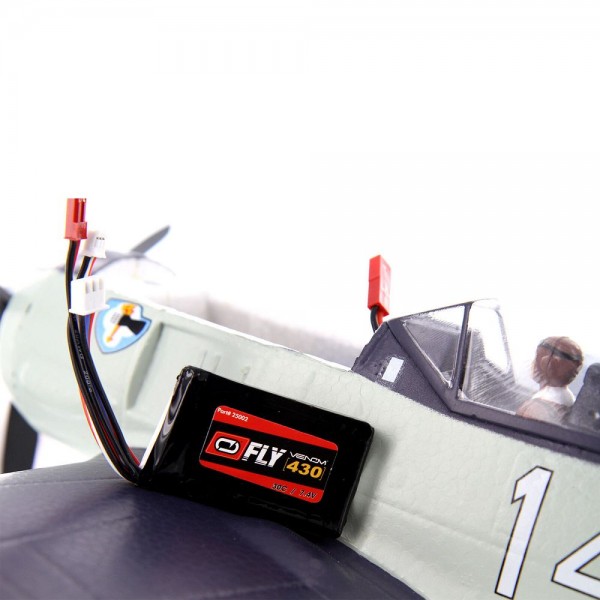

Venom part #VNR25002, 7.4V 430mAh 2S 30C FLY LiPo Battery: JST, PH

Specs

Battery Balance Connector: JST-XH
Battery Type: LiPo (3.7V per cell)
Battery Voltage: 7.4V
Capacity: 430mAh
Connector Type: JST
Hard Case: No
Maximum Charge Current: 2.15A
Maximum Charge Rate: 5C
Maximum Continuous Discharge Current: 12.9A
Maximum Continuous Discharge Rate: 30C
Normal/Standard Charge Current: 0.43A
Normal/Standard Charge Rate: 1C
Height: 0.4 in (11mm)
Length: 2.2 in (56mm)
Weight: 1.2 oz (35g)
Width: 1.2 in (31mm)
Watt Hours: 3.18
Wire Gauge: 20 AWG

Specs

Product Specifications

Part Number	VNR25002
Battery Chemistry	LiPo
Battery Voltage	7.4V (2-cell)
Capacity mAh	430
Discharge Rate	30
Connector Type	JST
Battery Balance Connector	JST-XH
Battery Type	LiPo (3.7V per cell)
Battery Voltage	7.4V
Capacity	430mAh
Connector Type	JST
Hard Case	No
Maximum Charge Current	2.15A
Maximum Charge Rate	5C
Maximum Continuous Discharge Current	12.9A
Maximum Continuous Discharge Rate	30C
Normal/Standard Charge Current	0.43A
Normal/Standard Charge Rate	1C
Height	0.4 in (11mm)
Length	2.2 in (56mm)
Weight	1.2 oz (35g)
Width	1.2 in (31mm)
Watt Hours	3.18
Wire Gauge	20 AWG
