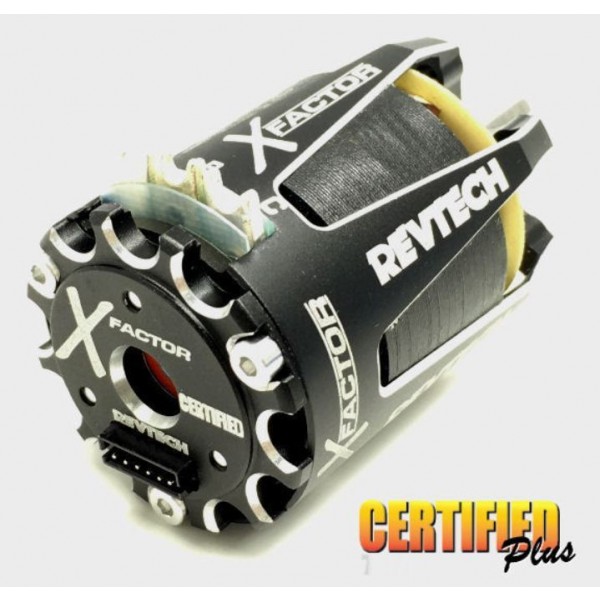

Name: Trinity X-Factor 13.5T Certified Plus Spec Off-Road Brushless Motor
Brand: Trinity (TRI)
SKU: TRIREV1102XOT
Price: 164.99 USD
Availability: OutOfStock

Home /
Trinity X-Factor 13.5T Certified Plus Spec Off-Road Brushless Motor

Overview

features

Certified Plus SPEC Featured Upgrades:

Certified Red Seal Ceramic Bearings (TEP1738 Installed)
Special Certified Black Anodized End Plate (Only Available with a Certified Motor)
Complete 6pc Silver Aluminum Screw Kit (REV1131 Installed)
Revtech Blue Chrome Motor Box
Top 5% Stator and Rotor

Certified Plus:

Custom built and hand assembled just like our Team Driver Motors
Buying a Certified Motor is the closest anyone can get to buying a Trinity Team Motor. Example: Asymmetry in a brushless motor could be anywhere from "0" to "30 plus". Certified Plus will have no higher than a "4" so you never see a rotor higher than a "4" in the "PLUS" line.
The other advantage will be each and every CERTIFIED Plus SPEC motor will come with a complete print-out after running the motor on the Motolyser.
Rotor precision shimmed and aligned
Sensor Board adjustment and timing set for motor application
Each Motor with come Built with a CERTIFIED Top 5% Rotor and Stator

Standard X Factor:

10% Lighter than Previous Motors
Weight (144g avg)
Composite Sensor Board
0 - 60 Degrees of Timing adjustment
Revolutionary timing ring & locking end plate systems saves weight Only 6 short screws (no long screws)
X-Flow Cooling which pulls more air through the can, reducing motor temps
2pc CNC Machined Aluminum can allows for more accurate deviation readings
2mm Ultra Low Resistance Solder Tabs
Stator Design provides a more efficient power curve NO FADE!
2100Kv this number is approximate set as Zero Degrees of Timing. Sensored Brushless Motors are not rated in Kv's due to the fact that timing and voltage can effect the Kv number.

Specs

Weight: (144g avg)
Dimensions: 12.5x25.5mm Long
Rotor: Copper

Specs

Product Specifications

Part Number	TRIREV1102XOT
Weight	(144g avg)
Dimensions	12.5x25.5mm Long
Rotor	Copper
