Traxxas TRX-4M Brushless Power System

The TRX-4M Brushless Power System gives you up to 50% more speed, more crawling torque, and greater precision than brushed power systems. Rip wheelies in your monster truck or navigate a technical crawling course in your custom High Trail rig. The new TRX-4M Brushless Power System gives you the best of both worlds!

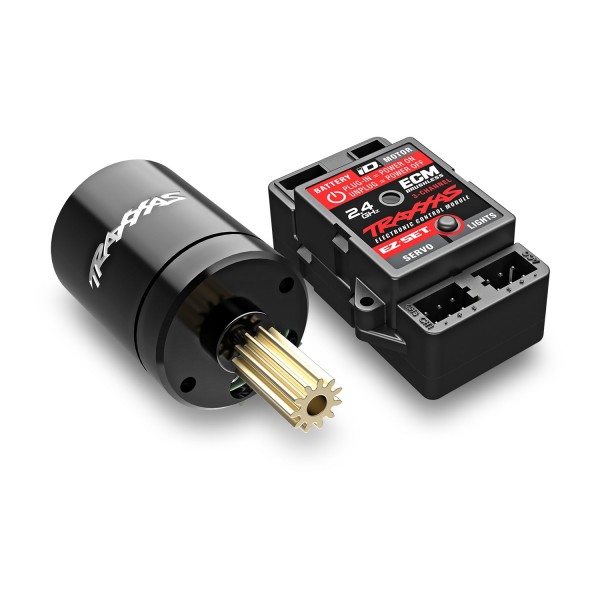

• Brushless outrunner motor
• More torque and low speed control than conventional designs
• 3350 Kv
• Laser-etched can
• Includes 11-tooth pinion gear
• Brushless ECM
• Retains all standard ECM features including Pro Scale lighting controls
• Field Oriented Control (FOC)
• Compatible with 2s LiPo power
• Works with both TQ™ and TQi™ transmitters
• Three drive modes:
• Sport (100% FWD, 100% Brake, 100% REV)
• Trail (100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral)
• Crawl 100% FWD, 100% Instant REV, 100% Brake on Neutral)
• Same footprint and mounting points
• True plug-and-play compatibility

Brushless Outrunner Motor:
At the heart of the system is the all-new 3350 Kv brushless outrunner motor. Designed for 2s LiPo power, the brushless motor offers exceptional torque and low speed control to climb over any obstacle. In the open, the motor delivers high-rpm performance for dramatically improved speed and wheelie-popping power. A black high gloss can with laser etching gives the motor a striking appearance.

Brushless ECM:
The new brushless ECM offers all the same great features as the standard ECM, but with even more compatibility. The integrated lighting control module and receiver maintain all existing functionality with existing Pro Scale light kits and works with both TQ and TQi transmitters. New field-oriented control (FOC) programming allows the ESC to monitor the motor’s position for ultra-precise control. The brushless ECM offers two servo output ports and two Pro Scale lighting ports and even uses the same battery connections and mounting bosses for true plug-and-play capability.

Easy To Install:
The TRX-4M Brushless System is quick and easy to install. The ECM uses the same mounting bosses as the standard system with no modifications required. The system works with all existing TRX-4M parts and accessories including Pro Scale LED light kits and high/low two-speed transmissions. To get the most performance from your truck, consider the upgrades listed below for improved compatibility and toughness.
