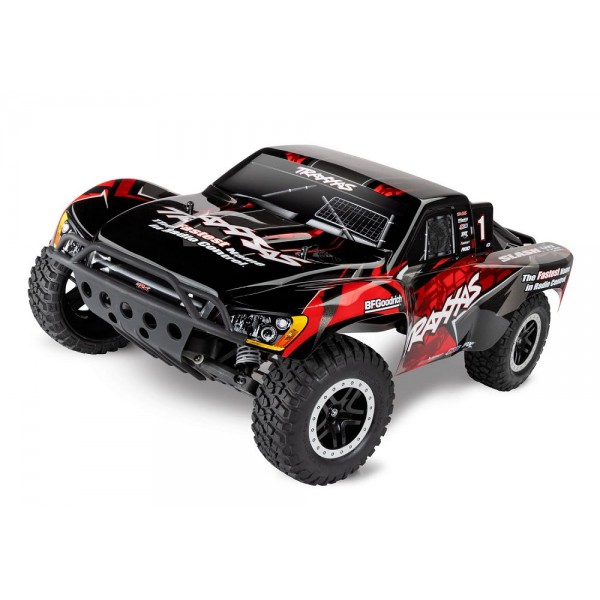

Traxxas Slash VXL 1/10 2WD Magnum 272R Short Course Truck, Red

The Traxxas Slash VXL puts you in the driver’s seat for intense fender-to-fender, high-flying off-road action. Since its introduction, the Slash has set the standard for durability, performance, and technology. Traxxas Stability Management® puts Slash VXL’s tire-shredding power to the ground while making it incredibly agile and easily controllable. Extreme Velineon brushless power provides screaming 60+mph† speed while the advanced TQi™ radio system keeps everything under precise control. With just one drive you will see why the Traxxas Slash VXL elevates short course performance to a whole new level.

Pro Series Magnum 272R™ Transmission
The Magnum 272R uses a new low-profile housing with a rock-solid 3.2 mm aluminum motor plate. A hardened steel top shaft and all-metal gears send power to a sealed, silicone-filled 4-gear differential for maximum traction. A removable panel gives you easy access to the differential for tuning with different viscosity fluids. Originally developed for the hard-hitting Drag Slash, the Magnum 272R delivers competition-grade performance for your Slash VXL.

• Traxxas Stability Management® (TSM)
• The Slash VXL reaches speeds in excess of 60+mph*
• Powered by the Velineon® Brushless Power System
• Velineon VXL-3s Electronic Speed Control
• LiPo and NiMH compatible with two-stage low-voltage detection
• Sport Mode: Forward / Brake / Reverse
• Race Mode: Forward / Brake
• Training Mode: 50% Forward / Brake / 50% Reverse (patented)
• Velineon 3500 Brushless Motor:
• Consistent, high-power output, run after run
• Low-maintenance design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• TQi 2.4GHz transmitter:
• Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver (#6533) with fail-safe security, integrated telemetry ports and TSM
• Race in dirt, mud, water, and snow thanks to Traxxas’ innovative waterproof electronics
• Digital high-torque waterproof steering servo
• 125 oz-in of torque and 0.16-second speed
• O-ring sealed watertight receiver box
• Speed control, receiver, and steering servo are securely fastened to chassis
• Long-wheelbase fiber-composite chassis
• 13.2 inch wheelbase
• Easy access battery compartment
• Adjustable battery hold down accepts 6- and 7-cell flat packs and 7-cell hump packs
• Chassis nerf bars absorb impact and support the body
• Scale front and rear tube-style bumpers
• Body mounts incorporate reinforced washers for additional body support
• High Performance Magnum 272R transmission:
• All-metal internal gears
• Sealed beveled-gear differential
• 3.2 mm aluminum motor plate
• Low-profile case
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control slipper clutch system
• External gear cover with easy slipper access
• Heavy-duty telescoping U-joint driveshafts and yokes
• Heavy-duty 4 mm steel turnbuckles and captured rod ends
• Captured rod ends won't pop off for superior durability
• Precision hex hardware throughout
• Efficient rubber-sealed ball bearings
• Fully adjustable Ultra Shocks with X-ring technology
• Progressive rate white powder coated shock springs feature a race-tuned responsive spring rate
• Dual-bellcrank steering with integrated servo saver
• ProGraphix® multi-colored painted body are available in officially licensed (paint and graphics) race replica versions

Length: 22.4 inches (568 mm)
Front Track: 11.65 inches (296 mm)
Rear Track: 11.65 inches (296 mm)
Weight: 90.4 ounces (2.56 kg)
Height (overall): 8.43 inches (214 mm)
Wheelbase: 13.2 inches (335 mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires: Slash 2.2 (Pre-Glued with Inserts)
Rear Tires: Slash 2.2 (Pre-Glued with Inserts)
Front Wheels: 2.2" Satin or Chrome-Finish
Rear Wheels: 2.2" Satin or Chrome-Finish
Speed Control Type: VXL-3s™ Electronic Speed Control
Motor (electric): Velineon® 3500 Brushless
Gear Ratio (internal): 2.72 (final drive: 10.2)
Differential Type: Steel Composite Planetary
Gear Pitch: 48-Pitch
Transmission: Metal Gear Magnum 272™
Steering: Bellcrank
Chassis Type: Long-wheelbase fiber-composite chassis
Chassis Material: Composite Nylon
Center Ground Clearance: 3.5 inches (89 mm)
Top Speed: 60+mph
Skill Level: 1
Radio System (transmitter): TQi™ 2.4GHz (2-channel)
Radio System (receiver): Traxxas Stability Management® ( tra6533 )
Officially-Licensed Race Replicas: Traxxas, Race Edition (Traxxas Blue)
Traxxas, Race Edition (Traxxas Red)
**Battery Tray Dimensions: 165 mm x 49.5 mm x 23 mm, 25 mm
Required: NiMH or LiPo Battery, Charger, 4 "AA" batteries (transmitter)

**Battery expansion kit available ( tra5827X ).

Traxxas Stability Management:
Micro Receiver, TQi 2.4GHz with Traxxas Link and TSM (5-channel) (#6533) (three-quarter view)Traxxas Stability Management TSM® makes it easier to control your vehicle on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM senses the vehicle’s direction and makes steering corrections to provide straight-ahead full throttle acceleration without loss of control. When cornering, TSM makes intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. TSM also improves braking performance by keeping the front wheels arrow straight until they come to a complete stop.

Traxxas Stability Management:
Traxxas Stability Management TSM® makes it easier to control your vehicle on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM senses the vehicle’s direction and makes steering corrections to provide straight-ahead full throttle acceleration without loss of control. When cornering, TSM makes intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. TSM also improves braking performance by keeping the front wheels arrow straight until they come to a complete stop.

Traxxas Link Wireless Module Compatible:
The TQi's most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn mobile device into a powerful tuning tool. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

5-channel Micro Receiver with Fail-Safe Security:
The TSM TQi 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding. A two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4Ghz Traxxas Link enabled transmitters. In the event of signal loss, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is conveniently built-in and does not need to be set or activated. The 5-channel receiver features three telemetry ports to allow real-time data to be transmitted from your vehicle to the TQi transmitter.

Sealed Watertight Receiver Box:
Slash VXL's receiver is fully enclosed for protection from the elements. The antenna and servo wires route neatly through a special watertight seal, and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the patented receiver box.

Traxxas High-Current Connector:
The patented Traxxas High-Current Connectors are designed to handle high-current applications and funnel maximum power to your vehicle’s electronics. Traxxas High-Current Connectors let you get the quickest, safest charge for your battery so you can unleash the maximum power and runtime for your Traxxas vehicle.

Maxx Cable 12-Gauge Wire:
This super-flexible, high-current, low-resistance 12-gauge, wire acts like a series of giant pipes, flowing energy in and out of the electronic speed control. The patented Traxxas Connector combined with Maxx cable is a better engineered solution for extracting all the power your battery has to give.

New Heavy-Duty Driveshafts:
Brutal brushless horsepower would stress ordinary drivetrain components to their limits, so Slash VXL steps up with extra-strong telescoping universal-joint driveshafts. The Traxxas-Tough driveline makes certain every watt of Velineon power is transformed into rocket-like thrust.

Adjustable Battery Hold Down:
The unique chassis design allows the use of 6-cell stick or side-by-side style battery packs and 7-cell stick, side-by-side, and hump battery packs for unmatched versatility. (Batteries sold separately) The extended chassis enables the various battery packs to be positioned forward or backward for front/rear weight bias tuning. An optional battery hold down kit is available for use with oversized batteries.

Precision Transmission Case:
Slash's Pro Series Magnum 272R transmission is engineered for extreme strength with its rugged, reinforced case. The case halves engage precisely to seal out dirt and debris, and create a rigid structure to support the motor, suspension arms, and optional wheelie bar. The thick 3.2 mm T-6 aluminum motor plate resists flex and acts as a heatsink.

All-Metal Internal Gears:
Slash VXL's race-ready Magnum 272R transmission is built for massive torque with high-strength steel input, idler, and differential gears and large-diameter bearings. The input gear is keyed and press fit onto the top shaft for greater precision and strength than a pin-mounted gear.

Removable Differential:
The Magnum 272R's easily removable differential makes maintenance and tuning easier than ever. Disconnect the driveshafts and open the hatch to release the differential in just minutes.

Heavy-Duty Hub Carriers & Steering Blocks:
The Slash VXL features heavy-duty ball bearing front steering blocks and rear hub carriers. They utilize large 5x11 mm ball bearings for long-term precision performance, smooth operation, and increased durability.

Oil-Filled Ultra Shocks™:
The Slash VXL's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.

Rubber-Sealed Ball Bearings:
Precision rubber-sealed bearings offer the ultimate in super low-friction performance and maximum protection in dusty environments. They are used in all exposed locations on the truck and are virtually maintenance free.
