OverviewGo Ultimate with the Traxxas Slash!

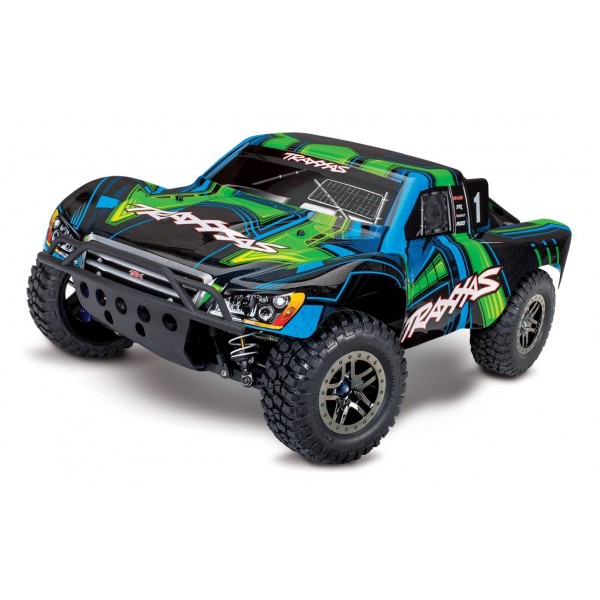

Experience the pinnacle of short course truck performance with the Slash 4X4 Ultimate. Fully loaded out of the box, the Slash Ultimate features brutal Velineon® brushless power and Traxxas Stability Management™ (TSM) with a high-speed metal gear servo. Carve corners like a pro thanks to the low-CG chassis, installed sway bars, and ultra-smooth blue PTFE-coated aluminum GTR shocks. Slash 4X4 Ultimate packs a full complement of aluminum hop-up parts and performance accessories for added strength and show-stopping looks. Slash 4X4 Ultimate arrives fully assembled with factory-installed telemetry sensors and a Wireless Link equipped TQi™ 2.4GHz radio system. Simply add the battery of your choice (sold separately) and you’re ready for intense tire-scorching action.
- Slash Ultimate Fully assembled Ready-To-Race® with Traxxas Stability Management®
- 2.4GHz radio system with Traxxas Link™ Wireless Module
- Velineon® Brushless Power System
- ProGraphix™ painted body.
- Traxxas battery pack w/iD connector
- Traxxas iD charger
- (4) "AA" batteries (for transmitter)
Length: 22.36 Inches (568mm)
- Traxxas Stability Management® System (TSM)
- Powered by the Velineon® Brushless Power System
- Slash 4X4 Ultimate reaches speeds in excess of 60mph!*
- Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
- Maxx® Cable 12-gauge wire
- Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
- Velineon VXL-3s Electronic Speed Control
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Velineon 3500 Brushless Motor
- Consistent, high-power output, run after run
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- TQi 2.4GHz transmitter
- Traxxas Link Wireless Module
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
- Factory-equipped with speed/RPM, temperature, and voltage telemetry sensors
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- TQi 2.4GHz 5-channel micro receiver ( tra6533 ) w/Traxxas Stability Management and integrated telemetry ports
- Durable steel turnbuckles and captured rod ends
- Single-screw motor access makes gear-mesh adjustments fast and easy and the motor can be removed in just seconds
- Performance-optimized dark charcoal gray low-CG chassis
- Speed control and receiver are securely fastened to chassis
- Integrated personal transponder mount
- Versatile battery compartment easily adapts to multiple styles of batteries; 6 or 7-cell NiMH battery packs and various configurations of Lithium Polymer packs are no problem for Slash 4X4 Ultimate
- Digital high-speed tra2075R waterproof metal gear servo
- Waterproof, O-ring sealed receiver box
- Sealed, silicone-filled differentials
- Torque-Control™ slipper clutch system
- High-volume GTR shocks with adjustable-collar blue PTFE-coated aluminum bodies and TiN coated shafts
- Upgraded Extreme-Duty driveshafts
- Heavy-duty suspension arms
- White powder coated shock springs feature a responsive spring rate
- Telescoping universal-joint driveshafts
- Rubber-sealed ball bearings
- Pre-glued soft-compound S1 rubber tires for realistic performance and exceptional grip
- ProGraphix® painted body
- Full line of genuine Traxxas accessories available
- Slash 4X4 Ultimate is backed by unparalleled Traxxas support and parts availability
Front Track: 11.65 Inches (296mm)
Rear Track: 11.65 Inches (296mm)
Center Ground Clearance: 1.85 Inches (47mm)
Weight: 80.4oz (2.28kg)
Height (overall): 7.60 Inches (193mm)
Wheelbase: 12.75 Inches (324mm)
Shocks: GTR threaded aluminum-body with titanium-nitride shafts
Shock Length: GTR Long (front), XX Long (rear)
Tires: 2.2/3.0", S1 compound, pre-glued with foam inserts
Tire Diameter: 4.31 Inches (109.5mm) (front and rear)
Wheels (front/rear): 2.2/3.0" Split-Spoke, Black Chrome
Wheel Diameter: 2.2 Inches (56mm) Outer
3.0 Inches (76mm) Inner
Speed Control Type: VXL-3s™ Electronic Speed Control
Motor (electric): Velineon® 3500 Brushless
Overall Drive Ratio: 11.82 (stock, out-of-box)
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32
Chassis Structure/Material: Molded tub / nylon composite
Drive System: Shaft-driven, direct drive 4WD
Steering: Dual-bellcrank with integrated servo saver
Radio System: TQi 2.4 GHz radio system with Traxxas Stability Management®
Body: ProGraphix® pre-painted
Top Speed: 60+mph*
Battery Tray Dimensions: ** 165mm x 49.5mm x 23mm, 25mm
Required Items: Traxxas battery pack, Traxxas iD charger, 4 "AA" batteries (for transmitter)
*With optional gearing and 3S LiPo battery (items sold separately).
**Battery expansion kit available
Product VideosTraxxas Stability Management:
Micro Receiver, TQi 2.4GHz with Traxxas Link and TSM (5-channel) ( tra6533 ) (three-quarter view)Traxxas Stability Management (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it!
Everything is waterproof and Traxxas-tough as you’d expect. This is short course performance on a whole new level!
The World's Most Advanced Ready-To-Race® Radio System:
Now Connects Wirelessly to the Traxxas Link App
TQi 2.4GHz (tra6509X/ tra6528 ) Compatible with Traxxas Link Wireless Module (2-Ch)The Traxxas TQi paired with the Traxxas Link App is the most advanced, feature-rich, Ready-to-Race® radio system available. Now, TQi connects wirelessly to the latest Traxxas Link App for the ultimate in ease-of-use and control. The TQi radio system is equipped with the Traxxas Link Wireless Module to unlock exciting features such as instant Bluetooth® connectivity; access to the full range of powerful TQi tuning and telemetry tools through an intuitive high-definition graphical interface; and the ability to have a friend remotely monitor real-time telemetry while you focus on mashing the throttle. Your co-driver can even make adjustments for you, remotely, while you drive. No other radio system can do that. Just like the speed and performance Traxxas engineers into the vehicles, the power and capability of TQi and Traxxas Link expands your fun into all-new territory. Only from Traxxas, The Fastest Name in Radio Control®.
Factory-Equipped Real-Time Telemetry:
Slash 4X4 Ultimate includes factory-installed telemetry sensors enabling Traxxas Link to collect and record real-time telemetry data as you drive. The Traxxas Link dashboard comes to life showing you speed, battery voltage, RPM, and temperature. The application automatically detects and recognizes Traxxas Link sensors for easy set up and configuration. The dashboard is fully customizable with either dial or digital readout gauges. Up to nine gauges can be displayed at once. Set threshold warnings and log maximums, minimums, or averages. Use the recording function to document your dashboard view, with sound, so that you can keep your eyes on your driving and not miss a single apex. If you forget to record, simply touch Instant Replay anytime to capture the previous minute of fun and unexpected triumphs. The recordings can be named, saved, and shared with others. The powerful Traxxas Link App is available on Google Play and the App Store.
5-channel Micro Receiver with Fail-Safe Security:
The TQi 2.4GHz micro receiver uses an integrated LINK button for fast and easy binding to the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4GHz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.
High-Output Brushless Power:
Slash 4X4 Ultimate's Velineon Brushless Power system unleashes outrageous electric power without limitations or boundaries. Pour in the voltage and out comes the speed in tidal waves of force harnessed by precision throttle control. Sheer, brutal power combined with four-corner grip results in tire-melting acceleration and lightning fast speed. The Velineon 3s Brushless Power System's components work together as an optimized package, from the patented Traxxas High-Current connector to the custom-wound motor. Engineered to perform, the Velineon system delivers the ultimate in efficiency, speed, and run-time with precision throttle response and refined control. It's brushless performance the Traxxas way: wicked fast and easy to use. Just plug it in and it works, no special knowledge or programming skills required.
Velineon® VXL-3s ESC:
The Velineon VXL-3s speed control is loaded with high-grade technology to precisely deliver maximum power to the motor. It's engineered for today's battery technology and beyond. Two-stage low voltage detection allows full LiPo compatibility, including powerful 11.1-volt 3S packs!
Velineon® 3500 Brushless Motor:
Extreme performance is standard equipment with the sensorless Velineon motor. Ultra high-temperature Neodymium magnets, high-speed ball bearings, and a precision balanced rotor deliver power and long life with near zero maintenance. Since there are no brushes or commutator to wear out, you always get the same blistering acceleration and ballistic top speed run after run.
Old designs made servicing of 4-wheel drive vehicles cumbersome and time-consuming. Traxxas has a better way. The Slash 4X4 Ultimate's modular design allows the entire front section to be removed with just five screws, and the rear assembly with just four screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.
High-Speed Metal Gear Servo:
The Slash 4X4 Ultimate needs a fast and powerful servo to match its lightning-quick reflexes. New to the Slash Ultimate is the fully waterproof #2075R digital metal gear servo. This servo combines commanding steering authority with the superior durability of all-metal gears for the ultimate driving experience.
Ultra Efficient Shaft-Driven 4WD:
The Slash 4X4 Ultimate uses just three gear meshes to drive all four wheels, eliminating the need for a multi-gear transmission. The highly efficient drivetrain spins effortlessly on rubber-sealed ball bearings, and is integrated seamlessly into the Slash 4X4 Ultimate's unique low-CG chassis for optimum performance and easy maintenance. The center driveshaft is formed from extruded aluminum and extremely lightweight, contributing to the Slash 4X4 Ultimate's right-now acceleration. There are no dogbones to wear, no drive cups to wobble and the shaft runs perfectly straight and true with superior rigidity and durability.
Slash 4X4 Ultimate's performance refinements begin with a dark charcoal gray low-CG (low center of gravity) chassis. The battery and electronics are held as deep in the chassis as possible to position weight low in the chassis. Arrow-straight, hard-charging acceleration with Extreme Brushless Power and 4WD requires a chassis that won't flex under load. To offer the necessary rigidity, the chassis is reinforced by integrated ribs that form a triangulated structure optimized for the loads imparted by the suspension and powertrain. Underneath, the chassis is ultra-smooth to reduce drag and prevent snags whether you're blasting through whoops on the track or blazing trails in your backyard. The low-CG design dramatically increases corner speed and stability no matter where you drive. On the race course, Slash 4X4 Ultimate's low center of gravity allows high-output Velineon brushless power to be channeled into the track with superior traction, resulting in harder launches and faster lap times.
High-Capacity GTR Shocks:
Traxxas GTR shocks represent the peak of suspension technology. The blue PTFE-coated aluminum shock bodies have 13mm bores to hold over 70% more oil than the standard Slash Ultra Shocks and their slick titanium-nitride coated shafts resist scuffing, increase durability, and eliminate "stiction." The shocks are sealed by X-rings to keep oil in and dirt out for smooth, consistent damping, and plush suspension action, lap after lap. Between runs, spring preload and ride height changes are as simple as turning the threaded spring collars--no clips or spacers required.
Race Anywhere With Waterproof Electronics:
Only Traxxas lets you experience brushless-powered 4WD short course excitement year-round, no matter what mother nature has to offer. Water, mud, and snow don't slow down full-size full racers or the Traxxas Slash 4X4 Ultimate. Its VXL-3s speed control and high-torque digital steering servo are waterproof, and the 5-channel Traxxas Link receiver is housed in an O-ring sealed enclosure for no-worry fun in wet conditions that add excitement to short course racing in any scale. Drive the Slash 4X4 Ultimate where you want, when you want—the only limit is your imagination.
High Strength Machined Aluminum C-Hubs:
Slash 4X4's unique C-Hub design is already Traxxas Tough; this artfully machined aluminum version is stronger still, and preserves the carefully engineered steering and suspension geometry for track-ready performance. The brilliant-blue anodized finish adds high-tech style, and the laser-etched logos show your truck is equipped with genuine Traxxas performance parts.
Aluminum Steering Blocks:
Precision-machined for total steering accuracy and bulletproof strength, Traxxas Aluminum Steering Blocks further refine Slash 4X4 Ultimate's razor-sharp handling. Solid 6061 aluminum construction guarantees race-ready strength and stiffness.
Machined Aluminum Rear Hub Carriers:
Traxxas aluminum stub axle carriers add both strength and beauty to the Ultimate without compromising the track-bred suspension geometry built into Slash 4X4.
Front and Rear Sway Bars:
Sway bars reduce chassis roll and increase corner speed on high-traction surfaces—perfect for hard-packed tracks and pavement running. Slash 4X4 Ultimate features installed silver sway bars, and a stiffer set of black 'bars for extra-high-grip surfaces. The bar thicknesses are precisely tuned, and are easily adjusted for maximum cornering performance.
Heavy-Duty Composite Arms:
All-new heavy-duty suspension arms are stronger than ever before. Molded from a tough new composite material, the arms stand up to even the most punishing drivers and resist breakage for non-stop fun behind the wheel.
Extreme Heavy-Duty Driveshafts:
Slash 4X4 Ultimate's extreme heavy-duty driveshafts are beefed up in critical areas for even more outrageous power handling. The larger diameter half shafts offer the same articulation and suspension travel, but are rated for even more tire-shredding torque.
Authentic Short Course Style:
Traxxas Slash sets the standard for short course RC style. Slash 4X4 Ultimate carries it to the next level with an even more aggressive and realistic stance. Sharper edges and bolder curves scream speed and reflect the horsepower that lurks beneath. Slash 4X4 Ultimate rides on soft-compound S1 rubber, giving it realistic performance and enhanced control. Black Chrome SCT wheels complete the look with equal parts style and strength.
Part Number TRA68077-4-GRN Scale 1/10 Drivetrain 4WD Kit Type RTR Length 22.36 Inches (568mm) Front Track 11.65 Inches (296mm) Rear Track 11.65 Inches (296mm) Center Ground Clearance 1.85 Inches (47mm) Weight 80.4oz (2.28kg) Height (overall) 7.60 Inches (193mm) Wheelbase 12.75 Inches (324mm) Shocks GTR threaded aluminum-body with titanium-nitride shafts Shock Length GTR Long (front), XX Long (rear) Tires 2.2/3.0", S1 compound, pre-glued with foam inserts Tire Diameter 4.31 Inches (109.5mm) (front and rear) Wheels (front/rear) 2.2/3.0" Split-Spoke, Black Chrome Wheel Diameter 2.2 Inches (56mm) Outer Speed Control Type VXL-3s™ Electronic Speed Control Motor (electric) Velineon® 3500 Brushless Overall Drive Ratio 11.82 (stock, out-of-box) Differential Type Hardened steel bevel, sealed, limited slip Gear Pitch 32 Chassis Structure/Material Molded tub / nylon composite Drive System Shaft-driven, direct drive 4WD Steering Dual-bellcrank with integrated servo saver Radio System TQi 2.4 GHz radio system with Traxxas Stability Management® Body ProGraphix® pre-painted Top Speed 60+mph* Battery Tray Dimensions ** 165mm x 49.5mm x 23mm, 25mm Required Items Traxxas battery pack, Traxxas iD charger, 4 "AA" batteries (for transmitter)
Customer Reviews 1 item(s)
- Most versatile platform
I bought this more for outdoor track use and bashing. I've turned this Slash into a monster truck (body, body mount posts and tires) and rally car (Front and rear bumpers, body mount posts and body). The Traxxas Slash has an abundance of OEM and aftermarket part support.
