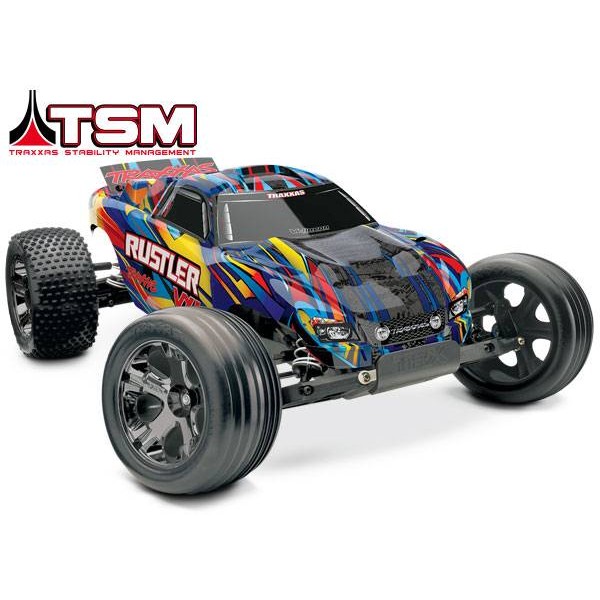

Rustler VXL 1/10 Scale Stadium Truck with TQi Traxxas Link & TSM

Rustler VXL combines Traxxas Stability Management® (TSM) and Velineon® extreme horsepower with the proven fun and durability that made Rustler the number-1 selling electric stadium racer. The Velineon Brushless Power System launches Rustler VXL to new heights with speeds of 70mph and beyond! Hardcore, wheel-standing acceleration completely blows everything else away. Rustler’s low, wide stance provides razor-sharp handling and phenomenal grip with TSM keeping you in firm control. Go ahead, rip full throttle! Rustler kicks up towering roosts of mud and its waterproof electronics ensure that no adventure is out of reach, no matter how extreme!

• Traxxas Stability Management®
• Powered by the Velineon® Brushless Power System
• Rustler VXL reaches speeds in excess of 70mph!*
• Patented Traxxas High-Current Connector transfers maximum voltage to the Velineon Brushless Power System
• Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow
• Maxx® Cable 12-gauge wire
• Velineon VXL-3s Electronic Speed Control
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Sport Mode – forward / brake / reverse
• Race Mode – forward / brake
• Training Mode™ - 50% forward / brake / 50% reverse (patented)
• Velineon 3500 Brushless Motor
• Consistent, high-power output, run after run
• Low-maintenance, unique Traxxas design
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• TQi 2.4GHz transmitter
• Compatible with optional Traxxas Link Wireless Module ( tra6511 ) to access full Traxxas Link app functionality
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, "model selection" is not required
• Multi-Function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• High 13ms frame rate and near-zero latency for responsive control
• TQi 2.4GHz 5-channel micro receiver with Traxxas Stability Management (TSM) ( tra6533 ), fail-safe security and integrated telemetry ports
• Digital high-torque Traxxas 2075 waterproof steering servo
• Durable steel turnbuckles and captured rod ends
• Efficient Magnum 272™ steel-gear transmission with ball bearings
• Sealed gearbox protects the transmission with beefed up motor guard for extra protection
• Torque-Control™ slipper clutch system
• External gear cover with easy slipper access
• Reliable composite planetary gear differential
• Updated heavy-duty telescoping U-joint driveshafts and yokes
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Easy access battery compartment
• Fully adjustable Ultra Shocks™ with X-ring technology
• White powder coated shock springs feature a responsive spring rate
• Alias™ step-pin rear tires and Alias ribbed front tires offer superior off-road traction
• Rustler's tires include performance foam inserts and come pre-glued on black chrome 2.8" All-Star™ wheels
• Tough ProGraphix® pre-painted body
• Wing attaches securely to the body with precision hex hardware
• Rustler is backed by unparalleled Traxxas support and parts availability

Length: 17.5" (445mm)
Front Track: 12.25" (311mm)
Rear Track: 12.25" (311mm)
Weight: 59.6oz (1.69 kg)
Height (Overall): 7" (178mm)
Wheelbase: 11.375" (289mm)
Front Shock Length: Long
Rear Shock Length: XX-Long
Front Tires (Pre-Glued): Alias™ Ribbed 2.8"
Rear Tires (Pre-Glued): Alias™ Step-Pin 2.8"
Front Wheels: 2.8" Black-Chrome (All-Star™)
Rear Wheels: 2.8" Black-Chrome (All-Star™)
Electronic Speed Control: VXL-3s™ Electronic Speed Control
Motor (Electric): Velineon® 3500 Brushless
Gear Ratio (internal): 2.72 (Final Drive: 9.05)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Bellcrank
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Radio System: TQi™ 2.4GHz Radio System w/TSM Receiver
Top-Speed: 70+mph**
Skill Level: 2
*Battery Tray Dimensions: 139mm x 47.5mm x 28mm

*Battery expansion kit available ( tra3725X ):
**With 3S LiPo battery and optional 31-tooth pinion gear (sold separately):

Traxxas Stability Management:
Traxxas Stability Management (TSM) makes it possible to experience all the extreme power, speed, and acceleration that was engineered into Traxxas models by making it much easier to control the vehicle on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain the vehicle’s line, then hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep Traxxas trucks arrow straight until they come to a complete stop. Traxxas TSM gives all the benefits modern electronic stabilization has to offer without intruding on driving fun or introducing unexpected side effects that can be found on other systems such as drastically reduced turning radius, braking assistance that times out (quits), throttle restrictions, and an overall disconnected driving feel. Traxxas engineers developed superior tuning algorithms that run on high-speed, precision electronic components to create a system that works invisibly, in the background, without ever limiting throttle. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. The result is driving faster, with more ease, and having more fun. In fact, the driver may not even realize how much TSM is helping until it is turned off and their driving skills are tested without it! (click here for more details)

The World's Most Advanced Ready-To-Race® Radio System:
Total Control. Traxxas models deserve the world's most advanced Ready-To-Race® radio system. The radio system is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna.

Traxxas Link Wireless Module Compatible:
The TQi's most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module (#6511, sold separately) and turn your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.

5-channel Micro Receiver with Fail-Safe Security:
The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4GHz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.

Patented Sealed Watertight Receiver Box:
Rustler VXL's receiver is fully enclosed to protect it from the elements. The antenna and servo wires route neatly through a special watertight seal and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.

Rubber-Sealed Ball Bearings:
Precision 5x11mm rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.

Tires and Wheels:
The Rustler VXL features new 2.8" All-Star™ black-chrome wheels.­ Alias™ rear tires feature a step-pin design, front Alias ribbed tires provide superior control, and performance-engineered foam inserts keep the truck firmly planted on extreme off-road terrain.
The black-chrome All-Star wheels feature a lightweight horizontal bead that holds the tire to the rim even under extreme rpm. Performance-designed foam inserts are standard and all tires come pre-glued from the factory to get you rolling right out of the box.

Anaconda 2.8" Tires (sold separately):
Transform your Rustler VXL into a menacing street machine with available Anaconda 2.8" street treads. These sticky, high-traction tires provide aggressive handling on paved surfaces. The Anaconda tires’ large tread blocks provide incredible grip and long-wearing performance. Buy them pre-glued and ready to install for instant on-road action.

Included Optional Pinion Gear:
The Rustler VXL reaches a scorching 70+mph top speed using an optional 31-tooth pinion gear, 76-tooth spur gear, and a 3-cell 11.1V Lithium-polymer battery pack (sold separately). Out of the box, the installed 25-tooth pinion gear is just right for all-around, on or off-road action. Installing the included optional 28-tooth pinion gear opens the door to breakneck 60+mph speeds!

ProGraphix® Body:
Rustler VXL's fully trimmed and painted ProGraphix body comes with pre-applied decals to save you time and get you driving just minutes out of the box. The rear wing mounts to the body using countersunk aluminum hardware for unmatched strength. Traxxas' ProGraphix bodies are the hottest looking bodies around and only available on Traxxas Ready-To-Race® models.

Digital High-Torque Waterproof Steering Servo:
A race truck needs a powerful steering servo for responsive performance. A Traxxas #2075 digital high-torque, ball bearing steering servo comes standard for precise control, quick response, and unmatched torque—all in a waterproof case. It has over 50% more torque than the standard Rustler's 2056 servo and is 25% faster! That's 125 oz-in torque, 0.16-second speed!
