- Overview
Overview

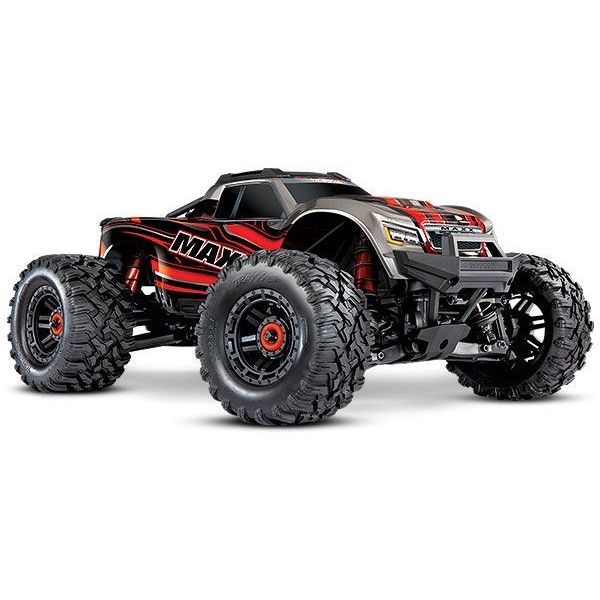

The Traxxas X-Maxx forever changed the face of RC monster trucks. Its radical new design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. There is really nothing else like it… until now. Meet the all-new 1/10 Traxxas Maxx. Maxx expertly packages X-Maxx’s innovative design elements into a lighter, more compact, more ferocious beast that is ready to take speed and strength to new levels of extreme intensity. Let the fun begin!
Extreme power. Extreme durability. Extreme fun! This is the foundation that the Maxx Experience is built upon. With a new Maxx platform that is smaller and lighter, Traxxas engineers took the speed to 60+ mph, tuned it for even higher performance, and doubled-down on strength and durability. Maxx is once again reshaping monster truck fun and excitement.
Traxxas Velineon brushless power hits hard with massive 4s punch and effortless wheelies on demand. Maxx feels like an unstoppable force of nature as top speeds reach an awe-inspiring 60+ mph.** Advanced 32-bit microprocessor-control constantly monitors the output for efficient, long-running performance. The high-output 540XL motor features a beefy, 5mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.
Maxx is engineered to withstand extreme punishment and intense driving action. Impact absorbing suspension arms soak up the hits with ease. The heavy-duty driveline components have been proven in vehicles larger and heavier than Maxx, so there is plenty of strength to spare. The Maxx chassis absorbs and dissipates impact energy across the entire structure. Huge threaded-aluminum GT-Maxx shocks with large diameter shafts manage suspension damping. Maxx invites you to explore new ways to drive hard and have fun!Includes:
- Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
- VXL-4s waterproof electronic speed control with integrated telemetry
- Quick Start Guide
- TQi™ 2.4GHz radio system
- High quality maintenance tools
Requires:
- LiPo Battery: Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
- Charger: EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model TRA2971 ).
- (4) AA batteries for transmitter
features
- VXL-4s™ Waterproof Electronic Speed Control
- 3S–4S LiPo compatible
- Built-in cooling fan
- Real-time telemetry via Traxxas Link™
- Machined heat sinks
- 10-gauge silicone wire
- Integrated protection circuits
- LED status lights
- Waterproof
- Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5mm output shaft
- Aluminum heat sink
- Cooling fan
- 55+ MPH out of the box using single 4S LiPo battery (sold separately)
- 60+ MPH with optional gearing and single 4S LiPo battery (sold separately)
- Traxxas Stability Management™
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
- TQi™ 2.4GHz High Output Radio System
- TQi™ 2.4GHz transmitter
- Traxxas Link™ enabled
- TQi 2.4GHz 5-channel micro receiver ( tra6533 ) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- Telemetry-ready 5-channel micro receiver
- Clipless Body Mount System
- Quick one-hand installation and removal
- Uses pivoting rear latch mechanism
- Eliminates body posts and clips
- Reinforced for extra protection against tearing
- Drivetrain
- Full-time shaft-driven 4-wheel drive
- Torque-Biasing Center Drive™ absorbs shocks and distributes power
- 17mm keyed wheel hex with 5mm nut
- Sealed, silicone fluid-filled diffs with large module ring and pinion gears
- Heavy-duty Cush Drive™
- Extreme-duty telescoping driveshafts
- Splined aluminum center driveshaft
- Secure Motor Mounting System
- Precise, fixed gear mesh adjustments
- Motor retention separate from gear mesh
- Full-length motor cradle
- New Modular Composite Chassis
- Modular chassis design interlocks with front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt and grit
- Easy Battery Access
- Battery is protected deep in the chassis
- Battery hold-downs pivot for easy access
- More secure than conventional retention systems
- Heavy-Duty Steering Bellcranks and Servo
- Large-scale high-output steering servo
- 285oz-in of torque
- 0.18 sec transit speed
- New mounting system to fully support case
- Heavy-duty double-shear bellcranks
- Suspension
- Engineered to optimize suspension travel and steering angles
- All critical suspension points have double shear strength
- Steel pivot balls
- C-hub and steering block geometry maximizes steering angle
- Fixed, high-strength camber and toe links
- Steel upper and lower tie bars
- Full contact sealed bearings used throughout driveline
- New GT-Maxx® Shocks
- Machined aluminum threaded body
- Extra-large bore and capacity
- Large-diameter damper shaft
- Lower seal cartridge with dual X-rings
- Adjustable upper spring retainer
- Plastic shock caps with pivot balls
- Lower spring perches bolted on
- Bumpers
- Tough energy absorbing front and rear bumpers
- Lower front and rear skids for impact and abrasion resistance
- Integrated nerf bars for side impact resistance
- Wheelie bar with integrated carry handle
- Wheels/Tires
- Tough 2.8” wheels with keyed 17mm hex receptor
- Large 5.5” all-terrain dual-diameter tires
- 1-piece foam inserts
- Pre-glued and ready for action
- TSM™ rated
Approximate Assembly Time: No assembly requiredSpecs
Battery Input Lead: IC5
Body: Race inspired scale, trimmed and screen printed
Brakes: Integral with ESC
Bushing Material: Metal
Charger: Sold separately
Chassis: 0.16" (4mm) thick 6061-T6 aluminum
Completion Level: Ready-To-Run
Differential: Sealed spiral cut bevel gear
Drivetrain: 4WD Shaft Drive
Final Drive Ratio: 9.73:1
Gear Pitch: 1.0 Module
Ground Clearance: 1.50" (38.1mm)
Height: 6.89" (175mm)
Internal Gear Ratio: 3.89:1
Length: 21.1" (535mm)
Motor Size: 550
Motor Type: Non-sensored brushless 4-pole 3150Kv
Pinion: 15T,17T
Radio: 2.4GHz Spektrum DX2E Active
Receiver: Spektrum AVC (Active Vehicle Control)
Servos: Spektrum S605 steering servo, 161 oz-in (11.6 kg-cm) @ 6V
Shock Type: Aluminum body, filled w/35wt oil, 12mm
Size/Scale: 1/10
Speed Control: Dynamite Smart 130A Fuze Brushless w/IC3 battery connector
Spur Gear: 40T
Suspension: Independent w/F&R sway bar
Tire Compound: Medium-soft
Tire Diameter: 4.65" (118mm)
Tire Tread: Falken Wildpeak M/T
Track: Front and Rear: 11.5" (292.1mm)
Vehicle Type: Desert buggy
Water-Resistant: Yes
Weight: 6lbs (2.7kg) without battery
Wheel Diameter: 2.2 x 3.0" (56 x 76.2mm)
Wheel Hex Size: 17mm Hex
Wheel Type: Method short course
Wheel Width: 1.63" (41.4mm)
Wheelbase: 13.1" (332.7mm)
Width: 11.7" (297mm)Product Videos
- Specs
Product Specifications
Part Number TRA89076-4-RED Scale 1/10 Drivetrain 4WD Kit Type RTR Approximate Assembly Time No assembly required Battery Input Lead IC5 Body Race inspired scale, trimmed and screen printed Brakes Integral with ESC Bushing Material Metal Charger Sold separately Chassis 0.16" (4mm) thick 6061-T6 aluminum Completion Level Ready-To-Run Differential Sealed spiral cut bevel gear Drivetrain 4WD Shaft Drive Final Drive Ratio 9.73:1 Gear Pitch 1.0 Module Ground Clearance 1.50" (38.1mm) Height 6.89" (175mm) Internal Gear Ratio 3.89:1 Length 21.1" (535mm) Motor Size 550 Motor Type Non-sensored brushless 4-pole 3150Kv Pinion 15T,17T Radio 2.4GHz Spektrum DX2E Active Receiver Spektrum AVC (Active Vehicle Control) Servos Spektrum S605 steering servo, 161 oz-in (11.6 kg-cm) @ 6V Shock Type Aluminum body, filled w/35wt oil, 12mm Size/Scale 1/10 Speed Control Dynamite Smart 130A Fuze Brushless w/IC3 battery connector Spur Gear 40T Suspension Independent w/F&R sway bar Tire Compound Medium-soft Tire Diameter 4.65" (118mm) Tire Tread Falken Wildpeak M/T Track Front and Rear: 11.5" (292.1mm) Vehicle Type Desert buggy Water-Resistant Yes Weight 6lbs (2.7kg) without battery Wheel Diameter 2.2 x 3.0" (56 x 76.2mm) Wheel Hex Size 17mm Hex Wheel Type Method short course Wheel Width 1.63" (41.4mm) Wheelbase 13.1" (332.7mm) Width 11.7" (297mm) - Reviews
