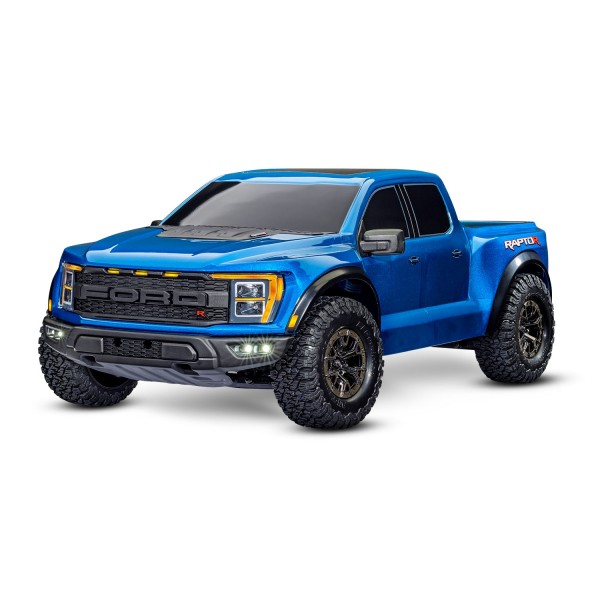

Traxxas 4X4 VXL 1/10 Ford Raptor R Brushless, Blue

The Traxxas Raptor R is the newest member of the innovative Traxxas Pro Scale lineup. Superb scale detail and proportion combine with 4X4 traction and extreme Velineon brushless horsepower to faithfully capture the Raptor R driving experience. Only Traxxas Pro Scale delivers both the exacting realism and unbeatable speed and durability performance drivers demand.

• Officially Licensed Ford® F-150® Raptor R™ Clipless Pro Scale® Body
• Molded scale details: bumpers, grille, tailgate, side mirrors, and hood vent
• LED lighting in front and rear bumpers
• Body reinforcements to prevent pull-through damage
• Clipless Body Mounting
• Holds tight for intense action
• 5 mm output shaft
• Quick and easy removal
• Smooth appearance with no body posts or clips
• Extreme Heavy Duty Upgrade Kit Installed
• Strengthened C-hubs, axle carriers, steering blocks, and shock towers
• Extreme heavy duty driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes
• VXL-3s™ Waterproof Electronic Speed Control
• Cooling fan with large heat sink
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
• Up to 60+ mph with 3s LiPo battery
• Traxxas Stability Management® (TSM)
• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter
• TQi™ 2.4 GHz High Output Radio System
• TQi™ 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (#6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug
• Suspension
• Heavy duty suspension arms
• Adjustable 4 mm steel toe and camber links
• Oil-filled Ultra Shocks
• White powder-coated progressive springs
• Velineon® 3500 kV Brushless Motor
• Ultra high-temperature sintered Neodymium magnets
• Optimized for power and efficiency in 1/10th scale vehicles
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• 3500 kV
• Brilliant blue-anodized finish
• Chassis
• Extended modular composite tub design
• Secure battery hold-down latch
• Side nerf bars for impact resistance
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver
• Drivetrain
• Full-time shaft-driven 4-wheel drive
• Oil-filled steel gear front and rear differentials
• Large 32-pitch spur gear
• Anodized-aluminum center driveshaft
• Wheels and Tires
• Licensed Ford® replica option wheels
• 2″ outer diameter, 3″ inner diameter
• Licensed BFGoodrich® All-Terrain T/A® KO2 tires
• Larger 114 mm diameter
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

Length: 24.98 inches (637 mm)
Front Track: 11.63 inches (289 mm)
Rear Track: 11.63 inches (289 mm)
Ground Clearance: 1.38 inches (35 mm)
2.05 inches (52 mm) (center)
Weight (no battery): 6.05 pounds (2.74 kg)
Height (overall): 8.91 inches (226 mm)
Wheelbase: 15.11 inches (384 mm)
Shock Length (front): 3.45 inches (88 mm) - Long
Shock Length (rear): 3.98 inches (101 mm) - XX-Long
Tire Diameter: 4.5″ x 1.9″ (114 mm x 48 mm)
Wheel Diameter: 2.2″ (56 mm) (inner)
3.0″ (76 mm) (outer)
Speed Control: Velineon® VXL-3s™
Motor (electric): 3500 KV Velineon brushless
Overall Drive Ratio: 37/13 ring/pinion gear ratio
Differential Type: Hardened steel bevel, sealed, limited slip
Gear Pitch: 32 pitch
Chassis Structure/Material: Composite tub
Drive System: Shaft-driven 4WD
Steering: Dual bellcrank with integrated servo saver
Tires: Licensed BFGoodrich® All-Terrain T/A® KO2 2.2″ pre-glued with foam inserts
Tire Diameter: 4.31 inches (114 mm) (front and rear)
Wheels (front/rear): Licensed 2.2″ Ford® factory option wheel
Wheel Diameter: 2.2 inches (56 mm) outer
3.0 inches (76 mm) inner
Radio System: 2-channel, TQi™ 2.4 GHz transmitter with TSM® receiver
Servo: 2075 waterproof digital servo
Top Speed: 60+ MPH with optional included gearing and 3s LiPo
Skill Level: 1
Battery Compartment (L/W/H): 165 mm (6.49″) x 50 mm (1.95″) x 23/26 mm (1.02″/0.90″)
Required Batteries: 4 “AA” (transmitter), vehicle (see battery finder)
Type: Velineon 3500 kV sensorless brushless
Weight: 9.24 ounces (262 g)
Length: 2.20 inches (56 mm)
Diameter: 1.41 inches (36 mm)
Connector Type: 3.5 mm bullet
Input Voltage (cells): 7.2 – 11.1 V (6–9 cells NiMH), 2s–3s LiPo
Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33mm)
Weight: 3.84 ounces (109 g)
BEC Voltage: 6.0 volts
Reverse Delay: Yes, with lockout
Thermal Protection: Two-stage thermal shutdown
Ports: Auxiliary fan
PRO SCALE DESIGN:
Only Traxxas Pro Scale combines pro-level performance with the look and feel of a real Ford Raptor R. The Traxxas Raptor R stops the show with a Ford-licensed body and molded replica parts for maximum scale authenticity. Velineon® brushless horsepower and an extreme heavy duty 4WD driveline give Raptor R performance credentials to match its stunning looks.

EXTREME HEAVY DUTY UPGRADES:
The Extreme Heavy Duty Upgrade Kit comes pre-installed on Raptor R to withstand the brutal punishment of high-power brushless systems. Raptor R’s driveshafts and suspension components are beefed up with extra material and overbuilt construction to form a nearly indestructible driveline.

CLIPLESS BODY MOUNTING:
High-flying stunts and 60+ mph desert speed runs won’t upset Raptor R’s tough clipless body. Locking tabs hold the body tightly, but release in just seconds to access the chassis. Raptor R’s hidden latching system maximizes convenience and scale realism by removing traditional body clips which would interrupt the body’s clean lines.
