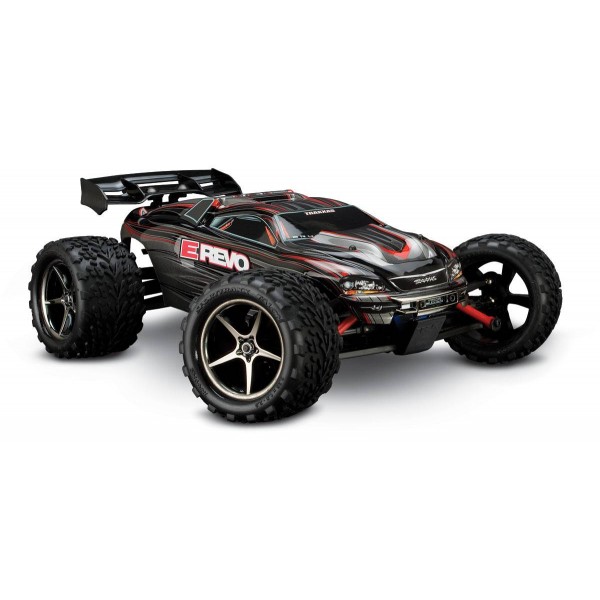

E-Revo VXL RTR Brushless Electric 4WD 1/16 Monster truck

Checking in at 14 inches long, the 1/16-scale E-Revo VXL is about half the size of its 1/10-scale cousin, E-Revo. Don’t let the size fool you; this monster packs a massive punch. Remember…dynamite comes in small packages! Beneath the factory-finished polycarbonate shell, you’ll find the suspension technology of the championship-winning Traxxas Revo, wicked Velineon brushless power, all-weather ready electronics, and the innovation of the E-Revo. Only Traxxas can give you the speed, quality, and capability you deserve in a convenient size. Take high-performance fun virtually anywhere at any time

No detail was overlooked in our mission to bring all the capability, durability, and excitement of Traxxas' award-winning models to 1/16 scale for fast, affordable R/C fun. The E-Revo VXL is built on the race-winning, track-proven innovation of the Revo and E-Revo models. The standard-bearer of design excellence, the Revo's F1-inspired, rocker-actuated suspension has been expertly adapted to 1/16 scale with all its functionality and performance intact, right down to the oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. The suspension and electronics are fully integrated into the semi-monocoque chassis design that stunned the world when it debuted with the E-Revo. Intricately molded as a single piece, the chassis balances strength and weight, function and aesthetics, convenience and performance to far surpass the standards of the "mini" category. In 1/16 scale, it is an even more impressive achievement of packaging and performance optimization that could only come from Traxxas, The Fastest Name In Radio Control®.

• NEW Traxxas Stability Management®
• 2-amp DC Peak Detecting Fast Charger
• 7.2 volt NiMH battery pack with iDTM
• TQi 2.4GHz radio system
• Race-winning, F1-inspired Revo® suspension technology and E-Revo integrated chassis design, perfectly optimized for 1/16 scale
• Powered by the Velineon® Brushless Power System
• Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
• Velineon VXL-3m Electronic Speed Control
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• Sport Mode – Forward / Brake / Reverse
• Race Mode – Forward / Brake
• Patented Training Mode™ - 50% Forward / Brake / 50% Reverse (patent pending)
• Velineon 380 Brushless Motor
• High-performance sensorless design
• High-strength Neodymium magnets
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Gold-plated 3.5mm bullet connectors
• Digital High-Torque Waterproof Micro Steering Servo
• Waterproof, o-ring sealed receiver box
• Sealed, silicone-filled differentials—an industry first in 1/16 scale
• Torque-Control™ slipper clutch system
• Telescoping universal-joint driveshafts
• Rubber-sealed ball bearings
• External gear cover with easy slipper access
• Rocker-actuated shocks provide true progressive damping and spring rates
• Threaded-body, oil-filled shocks permit fast, precise preload adjustments and deliver smooth, consistent damping
• Fiber-composite monocoque chassis
• Speed control and receiver are securely fastened to chassis
• Integrated battery compartments with intake and exit cooling vents
• Quick-release battery doors for fast pack changes
• Scale all-terrain front and rear tires offer superior on- and off-road traction
• Pre-glued Talon™ tires with high-performance foam inserts
• Black-chrome Gemini™ 5-spoke wheels
• High-downforce rear wing
• Full line of genuine Traxxas accessories available
• E-Revo VXL is backed by unparalleled Traxxas support and parts availability

Length: 12.9" (328mm)
Front Track: 9.4" (239mm)
Rear Track: 9.4" (239mm)
Weight: 38oz (1.09kg)
Height (overall): 4.6" (117mm)
Wheelbase: 7.9" (202mm)
Front Shock Length: 48mm
Rear Shock Length: 48mm
Front Tires (pre-glued): Talon™ 2.0"
Rear Tires (pre-glued): Talon™ 2.0"
Front Wheels: 2.0" Gemini™ (black-chrome)
Rear Wheels: 2.0" Gemini™ (black-chrome)
Electronic Speed Control: Waterproof Velineon® VXL-3m ESC
Motor (electric): Velineon® 380 Brushless
Transmission: Heavy-Duty Single Speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 9.00 (stock, out-of-box)
Differential Type: Hardened Steel Bevel, Sealed
Gear Pitch: 48-Pitch
Chassis Structure/Material: Molded Composite Nylon Monocoque
Brake Type: Electronic
Drive System: Shaft-Driven 4WD
Steering: Bellcrank
Radio System: TQi 2.4GHz w/Traxxas Stability Management®
Top Speed: 30+mph (50+mph with dual batteries)*
Skill Level: 2
Included Batteries: 6-cell NiMH with iD™
Included Charger:
2-amp DC peak detecting fast charger
Required Batteries: 4 "AA" (transmitter)
Traxxas Stability Management®:
Traxxas Stability Management TSM® allows you to experience all the extreme power, speed, and acceleration that was engineered into the 1/16 E-Revo VXL by making it much easier to control on common slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Punch it off the line and TSM goes to work sensing the vehicle’s direction and making steering corrections to provide straight-ahead full-throttle acceleration without fishtailing, spinouts, and loss of control. TSM also works during cornering, first making intuitive corrections to maintain your line, and then allowing you to hammer the throttle earlier in the turn for much faster exit speeds. Braking is dramatically improved as TSM works to keep you arrow straight until you come to a complete stop. TSM acts as your on-board co-pilot in the vehicle that “feels” what the vehicle is doing and makes corrections for vehicle movements that you cannot even detect, well before the vehicle gets out of control.

Class-Leading Speed:
Some mini-models are "fast for a mini." That's not good enough for Traxxas. The 1/16 E-Revo VXL is just plain fast. At 30+mph with the included 6-cell NiMH battery, E-Revo VXL is nearly twice as fast as most mini models, and faster than most electric RTR trucks of any scale. Install a second 6-cell battery to unleash the Velineon Brushless Power System's full fury, and E-Revo VXL jumps to over 50mph—all with proven-safe NiMH packs. No other RTR truck, regardless of scale, makes it so easy and affordable to experience this level of high speed and wheelie-popping power.

Velineon Brushless Power:
Built specifically for Traxxas 1/16 scale models, the VXL-3m speed control and Velineon® 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2S and 3S packs and rated for 6-12 NiMH cells, this potent, powerful combo gives E-Revo VXL precise throttle control and blistering top speed. Patented Training Mode™ lets new drivers hone their skills at 50% throttle. When drivers' ed is through, full power and 50+mph is unleashed with a touch of the EZ-Set® button. Big speed requires big horsepower, so E-Revo VXL and Slash 4WD VXL carry the largest motor in the "mini" category. The Velineon 380 is built to the same no-compromise specs as the Velineon 3500 found in Traxxas' 70+mph 1/10 scale VXL models. High-speed ball bearings. Sintered rotor. Neodymium magnets. Gold plated 3.5mm connectors. It all adds up to 50,000 rpm of pure power and track-searing speed!

Precision 2.4GHz Control:
Traxxas 1/16 E-Revo VXL is equipped with the world's most advanced Ready-To-Race® radio system. The Traxxas® TQi™ arrives with a full complement of tuning features and offers the unbeatable convenience of "no channels, no crystals" 2.4GHz technology—but that's just the beginning. Automatic model recognition instantly recalls your settings for up to 30 Traxxas Link-enabled models. Just switch on and drive, no naming or "model memory" settings required. Power up the transmitter and the model you want to drive, and the settings for that model are dialed in immediately! The TQi 2.4GHz transmitter is fully adjustable: steering and throttle end points can be set precisely and the Multi-Function knob can be programmed to control Traxxas Stability Management (TSM), Steering Sensitivity (Expo), Throttle Sensitivity (Expo), Steering Percentage (Dual Rate), Braking Percentage (Dual Rate), or Throttle Trim. TQi's ergonomic case design provides all-day driving comfort, and the unique internal antenna contributes to its sleek, modern look.

Training Mode™:
Traxxas' exclusive patented Training Mode let's everyone get in on the racing action. Just press a button to limit full-throttle power to 50%. This allows young or new drivers to safely develop their control skills before unlocking full power to the Velineon motor. Training mode even makes it easy to hand the transmitter over to your friends who have never driven a radio controlled truck before.

Traxxas Link Wireless Module Compatible:
The TQi's most important feature may already be in your pocket. The TQi can be equipped with an Traxxas Link Wireless Module (#6511, sold separately) that turns your Android, iPad® iPhone® or iPod touch® into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that unlocks the mysteries of optimizing your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model.
