Overview

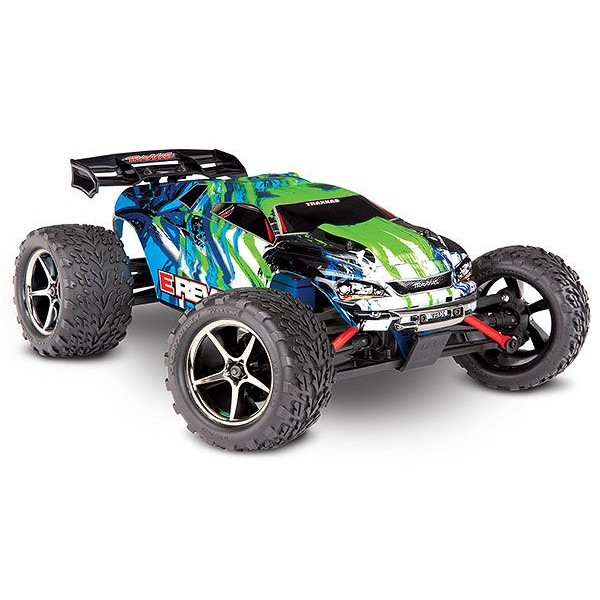

Traxxas sets the standard for power, performance and innovation. All the quality and capability you expect from Traxxas is available in 1/16 scale with the 1/16 E-Revo. At 14 inches long, this E-Revo is about half the size of the 1/10-scale E-Revo. But don't call it a "mini"—this is a whole new category of R/C performance and fun that no mere mini-model can match. Beneath the factory-finished polycarbonate shell, you'll find the winning suspension technology of the eight-time National Champion Traxxas Revo®, high-torque Titan 550 power, and the convention-busting innovation of the E-Revo.
Includes:
- RTR Traxxas E-Revo Racing Monster Truck
- 2.4GHz radio
- ESC
- 550 motor
- painted body
- 6-cell battery
- DC fast charger
- instruction manual
Requires:
- (4) AA Batteries: for transmitter
features
- Chassis: Nylon composite construction 0.08" (2mm) thick bathtub type
- Drive: Four wheel
- Radio: Traxxas TQ 2.4GHz with waterproof digital high-torque steering servo, waterproof receiver box
- Electronic Speed Control: Traxxas XL-2.5 waterproof
- Motor: Traxxas Titan 550 brushed
- Spur Gear: 45 tooth
- Pinion Gear: 28 tooth 48 pitch
- Battery: Traxxas Power Cell NiMH 6-cell iD 1200mAh 2nd generation high- current connector
- Battery Charger: 2A DC fast charger
- Body: Painted and trimmed with applied decals
- Bumper: Front, black chrome
- Shocks: GTR oil filled
- Suspension: Revo-spec rocker actuated long travel inboard type with telescoping universal joint shafts
- Transmission: Ball bearing equipped with adjustable slipper clutch
- Differentials: Sealed silicone filled planetary gear type
- Ball Bearings: Rubber sealed
- Caster: Non-adjustable
- Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
- Tires: Multi terrain, with foam inserts 1.8" (46mm) wide, 3.2" (82mm) diameter
- Wheels: Gemini 5-spoke with grayish chrome finish 1.5" (38mm) wide, 2" (51mm) diameter, standard size 12mm hex Steering arm with spring loaded servo protection
Chassis: Nylon composite construction 0.08" (2mm) thick bathtub typeSpecs
Drive: Four wheel
Radio: Traxxas TQ 2.4GHz with waterproof digital high-torque steering servo, waterproof receiver box
Electronic Speed Control: Traxxas XL-2.5 waterproof
Motor: Traxxas Titan 550 brushed
Spur Gear: 45 tooth
Pinion Gear: 28 tooth 48 pitch
Battery: Traxxas Power Cell NiMH 6-cell iD 1200mAh 2nd generation high- current connector
Battery Charger: 2A DC fast charger
Body: Painted and trimmed with applied decals
Bumper: Front, black chrome
Shocks: GTR oil filled
Suspension: Revo-spec rocker actuated long travel inboard type with telescoping universal joint shafts
Transmission: Ball bearing equipped with adjustable slipper clutch
Differentials: Sealed silicone filled planetary gear type
Ball Bearings: Rubber sealed
Caster: Non-adjustable
Camber: Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
Tires: Multi terrain, with foam inserts 1.8" (46mm) wide, 3.2" (82mm) diameter
Wheels: Gemini 5-spoke with grayish chrome finish 1.5" (38mm) wide, 2" (51mm) diameter, standard size 12mm hex Steering arm with spring loaded servo protectionProduct Videos
- Specs
Product Specifications
Part Number TRA71054-1-GRN Scale 1/16 Drivetrain 4WD Kit Type RTR Chassis Nylon composite construction 0.08" (2mm) thick bathtub type Drive Four wheel Radio Traxxas TQ 2.4GHz with waterproof digital high-torque steering servo, waterproof receiver box Electronic Speed Control Traxxas XL-2.5 waterproof Motor Traxxas Titan 550 brushed Spur Gear 45 tooth Pinion Gear 28 tooth 48 pitch Battery Traxxas Power Cell NiMH 6-cell iD 1200mAh 2nd generation high- current connector Battery Charger 2A DC fast charger Body Painted and trimmed with applied decals Bumper Front, black chrome Shocks GTR oil filled Suspension Revo-spec rocker actuated long travel inboard type with telescoping universal joint shafts Transmission Ball bearing equipped with adjustable slipper clutch Differentials Sealed silicone filled planetary gear type Ball Bearings Rubber sealed Caster Non-adjustable Camber Adjustable, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle Tires Multi terrain, with foam inserts 1.8" (46mm) wide, 3.2" (82mm) diameter Wheels Gemini 5-spoke with grayish chrome finish 1.5" (38mm) wide, 2" (51mm) diameter, standard size 12mm hex Steering arm with spring loaded servo protection - Reviews
