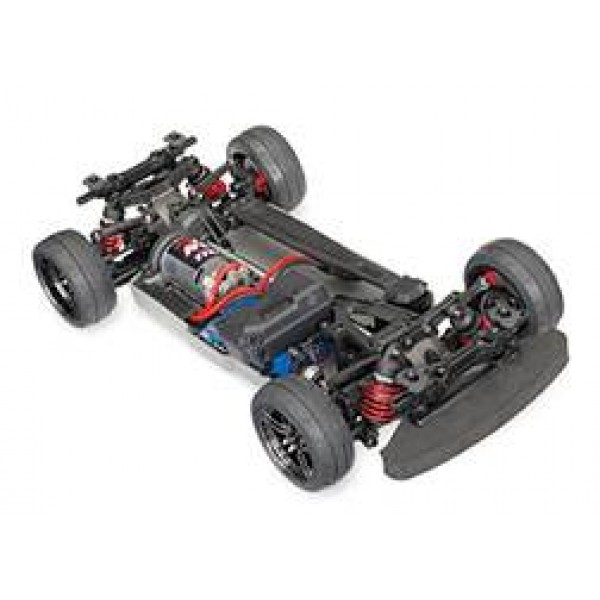

Traxxas 4-Tec 2.0 1/10 Scale AWD Chassis with TQ 2.4GHz Radio System

The all-new 4-Tec 2.0 AWD chassis provides the ultimate on-road driving experience. The high-tech chassis keeps weight positioned as low as possible for a crisp, responsive feel. The modular interlocking design allows easy maintenance while providing unprecedented rigidity and tight tolerances. A smooth undertray reduces drag and prevents snags on expansion joints while the finely tuned suspension keeps the wheels glued to the pavement for maximum on-road performance. The waterproof XL-5 electronic speed control channels power to the Titan® 12-turn motor for four wheel tire-spinning acceleration and blistering 30+mph* top speed. This is one chassis that begs to be driven hard!

• Traxxas TQ™ 2.4GHz radio system
• Waterproof electronics permit driving in water, mud and snow
• Modular fiber-composite low center of gravity (low CG) chassis
• Smooth underside resists drag and snags
• Angled front bumper improves approach angle
• Traxxas #6519 3-channel micro receiver
• Waterproof, O-ring sealed receiver box
• High-torque waterproof Traxxas #2075 steering servo
• Precise servo saver integrated into servo horn
• High steering angle option
• Powerful Titan® 12T 550 modified motor with internal cooling fan
• Fixed gear mesh with 11 different gearing positions
• Molded wire retainer keeps motor wires secure
• 30+mph with included optional pinion gear
• High-performance waterproof XL-5™ electronic speed control
• Innovative watersealed design
• Three drive profiles:
• Sport Mode - forward / brake / reverse
• Race Mode - forward / brake
• Training Mode™ - 50% forward / brake / 50% reverse (patented)
• 12-Turn motor limit for 550 size motors
• 15-Turn motor limit for 540 size motors
• Integrated on/off switch
• Traxxas EZ-Set® one-button setup
• LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
• High-efficiency MOSFET transistors
• Adjustable body mounts for custom bodies
• Speed control and receiver are securely fastened to chassis
• Built brushless ready to make upgrading to Velineon® power simple
• Sealed, silicone-filled differentials
• Low center of gravity (Low CG) chassis
• Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
• Red powder coated shock springs feature a responsive spring rate
• Adjustable battery hold down
• Full-time shaft driven 4-wheel drive
• Aluminum center driveshaft
• Rubber-sealed ball bearings
• Black chrome wheels with lug nut detail
• High-performance tires with long-wearing compound
• Replica brake discs incorporate standard 12mm wheel hexes
• Full line of genuine Traxxas accessories coming soon
• Backed by unparalleled Traxxas support and parts availability

Length: 14.94 Inches (379mm)
Front Track: 7.7 Inches (196mm)
Rear Track: 7.9 Inches (200mm)
Center Ground Clearance: 0.3 Inches (9mm)
Weight: 2.81lbs (1.28kg)
Height (overall): 2.43 Inches (62mm)
Wheelbase: 10.1 Inches (256mm)
Shock Length: Short (front and rear)
Tire Diameter: 2.6 Inches (66mm)
Tire Width (front): 1.0 Inches (26mm)
Tire Width (rear): 1.2 Inches (30mm)
Wheel Diameter: 2.1 Inches (53mm)
Speed Control Type: XL-5™ Electronic Speed Control
Motor (electric): Titan® 12T 550 (12-Turn)
Overall Drive Ratio: 9.49
Differential Type: Hardened Steel Bevel, Sealed, Limited Slip
Gear Pitch: 48
Chassis Structure/Material: Molded Tub / Nylon Composite
Drive System: Shaft-Driven, Direct Drive 4WD
Steering: Dual-Bellcrank
Radio System: TQ™ 2.4GHz Radio with #6519 3-Channel Micro Receiver
Skill Level: 1
Top Speed: 30+mph*
Battery Tray: 158mm long / 46mm wide / 23 or 26mm high

*With optional gearing and 2S LiPo battery (items sold separately)

All Wheel Drive:
A highly efficient shaft driven all-wheel drive system rides on sealed bearings and provides maximum acceleration and responsiveness.

Titan® 12-Turn 550 Modified Motor:
The Titan 12T 550 modified motor features an over-sized armature and 12-turns of pure copper wire for big torque and increased power-handling capabilities. The integrated cooling fan lowers running temperatures for increased run times and more fun behind the wheel. The Titan 12T requires very little maintenance and pumps out consistent speed run after run without fading. Beyond the specs, the Titan 12T kicks out tire spinning, lightning-quick acceleration, big power slides, and serious horsepower for high speed runs.

XL-5 Waterproof Electronic Speed Control:
The XL-5 electronic speed control handles the elements while smoothly supplying power to the motor. The XL-5 features a completely waterproof design, three drive profiles, low voltage detection, Thermal Shutdown Protection, 4-7 cell NiMH and 2-cell LiPo compatibility, and built-in BEC. High frequency operation combined with ultra-low resistance make the XL-5 an efficient and ultra-smooth fully proportional speed control. An exclusive feature on the XL-5 is the patented Training Mode™. This profile reduces the overall power output of the XL-5 by 50% making it easier for young or new drivers to develop their control skills before unleashing full-power operation.

Training Mode™:
Traxxas' exclusive patented Training Mode let's everyone get in on the racing action. Just press a button to limit full-throttle power to 50%. This allows young or new drivers to safely develop their control skills before unlocking the full power and speed of the 4-Tec 2.0. Training mode even makes it easy to hand the transmitter over to your friends who have never driven a radio controlled truck before.

Adjustable Wheelbase:
Lengthen or shorten the wheelbase for the perfect body fit. With slight modification, rear suspension arms can be moved 3mm in either direction.

Waterproof Receiver Box:
Real world driving requires dealing with the elements. The Traxxas 4-Tec 2.0 comes fully protected with a patented waterproof receiver box. The innovative receiver box keeps the micro receiver dry, even in the worst weather.

Precise 2.4GHz Control:
Switch on the power and drive! That's all there is to it with the TQ™ 2.4GHz radio system. There are no frequencies to manage, so the focus is on having fun. Race multiple vehicles side by side without interference. The TQ's advanced programming provides long-range control with smooth, glitch-free performance. The TQ's ergonomic design is comfortable for all day driving with an internal antenna that is impervious to damage.

Waterproof Steering Servo:
A high-performance chassis needs a powerful steering servo for responsive performance and Traxxas delivers with the 2075 high-torque servo. This waterproof steering servo uses O-ring seals to keep the fun going when things get wet. Waterproof for all-weather action, the 2075 provides 125 oz-in of steering muscle.

Replica Tires and Wheels:
Sticky street tires wrap around gorgeous replica wheels with lug nut details (patents pending). The replica brake discs incorporate standard 12mm wheel hexes and feature red brake calipers. The brake calipers even switch from leading to trailing orientation, allowing you to keep an authentic scale look for the body of your choice.
