- Overview
Overview

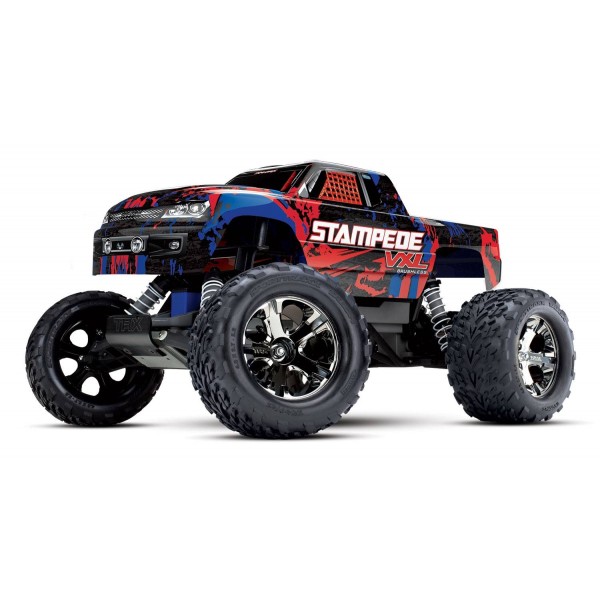

The World’s Most Extreme 2WD Monster Truck!The Stampede VXL defines extreme monster truck performance. Extreme Velineon® brushless power muscles the Stampede to speeds of 65mph and beyond with innovative Traxxas Stability Management® (TSM) to make the power more accessible. Experience speed and throttle response like you’ve never seen before in a monster truck. Pop a wheelie at 50mph and you’ll appreciate the standard wheelie bar. Fully waterproof electronics ensure that Stampede VXL is ready for all-weather fun. Engineered for speed and built Traxxas Tough™, the Stampede VXL ushers in a new era of extreme-performance monster trucks.
Traxxas Stability Management (TSM) lets you experience the Stampede VXL's extreme power, speed, and acceleration by making it much easier to control on slippery surfaces such as loose dirt, smooth concrete, and even ice and snow. Go ahead, punch it off the line! TSM senses the vehicle’s direction and makes steering corrections to provide full throttle acceleration without fishtailing or spinouts. When cornering, TSM intuitively corrects the vehicle’s line for faster exit speeds. TSM even improves braking by keeping the truck arrow straight until you reach a complete stop. TSM does all this without intruding on driving fun or introducing unexpected side effects. TSM can be fine-tuned (or turned off) for different surfaces by simply adjusting the multi-function knob on the TQi transmitter, or by adjusting the slider in the Traxxas Link app. Drive faster and have more fun with TSM. You may not even realize how much it is helping until you try to drive without it.
The Velineon brushless motor and electronic speed control (ESC) work together as an optimized package to deliver the ultimate in efficiency, speed, and run time. With the Stampede VXL, your battery selection determines your speed and skill level. Velineon accepts the widest range of battery types, including 3-cell Lithium Polymer (LiPo) packs. These packs pump out over 11 volts of power for intense, skill level 5 speeds beyond 65mph! Nothing else even comes close. Built-in low-voltage detection in the VXL-3s™ ESC helps you maintain your LiPo battery packs in top condition.
The Stampede VXL rolls out of the box Ready-To-Race® with the advanced TQi 2.4GHz 2-channel radio system and powerful Velineon Brushless Power System. World-class engineering and Traxxas' attention-to-detail are some of the reasons why Stampede is a perennial favorite for heavy-duty monster truck fun. No other truck offers the level of support of the Traxxas Stampede VXL with its unparalleled parts availability. A staff of skilled Traxxas representatives make it convenient to find answers to your questions via phone, website, or email. We're here to ensure that your R/C experience is enjoyable, easy, and fun.Includes:
- Traxxas Stampede VXL Fully assembled
- Traxxas Stability Management®
- TQi™ 2.4GHz radio system
- Velineon® Brushless Power System
- ProGraphix® painted body.
features
- Traxxas Stability Management®
- Powered by the Velineon® Brushless Power System
- Stampede VXL reaches speeds in excess of 65mph!*
- Traxxas High-Current Connector (patented) allows high-capacity battery packs to deliver maximum voltage to the Velineon Brushless Power System
- Exclusive waterproof electronics extend brushless power and performance to water, mud, and snow.
- Maxx® Cable 12-gauge wire
- Velineon VXL-3s Electronic Speed Control
- LiPo, NiCad, and NiMH compatible with two-stage low-voltage detection
- Sport Mode – Forward / Brake / Reverse
- Race Mode – Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Velineon 3500 Brushless Motor
- Consistent, high-power output, run after run
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- TQi 2.4GHz transmitter
- Compatible with optional TQi Traxxas Link Wireless Module ( TRA6511 ) to access full Traxxas Link app functionality
- Multi-Function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- High 13ms frame rate and near-zero latency for responsive control
- TQi 2.4GHz 5-channel micro receiver ( TRA6533 ) with Traxxas Stability Management and integrated telemetry ports
- Digital high-torque Traxxas 2075 waterproof steering servo
- Durable steel turnbuckles and captured rod ends
- Efficient Magnum 272™ steel-gear transmission with ball bearings
- Sealed gearbox protects the transmission with beefed up motor guard for extra protection
- Torque-Control™ slipper clutch system
- External gear cover with easy slipper access
- Reliable composite planetary gear differential
- Updated heavy-duty telescoping U-joint driveshafts and yokes
- Fiber-composite monocoque chassis
- Speed control and receiver are securely fastened to chassis
- Easy access battery compartment
- Fully adjustable Ultra Shocks™ with X-ring technology
- White powder coated shock springs feature a responsive spring rate
- Talon™ all-terrain 2.8" monster truck are pre-glued on black-chrome All-Star™ wheels
- ProGraphix® multi-colored painted body
- Stampede VXL is backed by unparalleled Traxxas support and parts availability
Length: 16.25" (413mm)Specs
Front Track: 12.75" (324mm)
Rear Track: 12.75" (324mm)
Weight: 65.3oz (1.85 kg)
Height (Overall): 9.5" (241mm)
Wheelbase: 10.63" (270mm)
Front Shock Length: Long
Rear Shock Length: XXLong
Front Tires (Pre-Glued): Talon™ 2.8"
Rear Tires (Pre-Glued): Talon™ 2.8"
Front Wheels: 2.8" Black-Chrome (All-Star™)
Rear Wheels: 2.8" Black-Chrome (All-Star™)
Electronic Speed Control: VXL-3s™ Electronic Speed Control
Motor (Electric): Velineon® 3500 Brushless
Gear Ratio (Internal): 2.72 (Final Drive: 12.34)
Differential Type: Planetary
Gear Pitch: 48-Pitch
Transmission: Magnum 272™
Steering: Single Point
Chassis Type: Modified Tub
Chassis Material: Composite Nylon
Radio System (Transmitter): TQi™ 2.4GHz (2-Channel)
Radio System (Receiver): Traxxas Stability Management™ ( TRA6533 )
Top-Speed: 65+mph**
Skill Level: 2
*Battery Tray Dimensions: 138mm x 46mm x 26mm
Required Items: NiMH or LiPo battery, Charger, 4 "AA" (Transmitter)
Input Voltage: NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC)
Case Size: 39mmW x 55mmD x 33mmH
Weight: 90 grams
Motor Limit (Brushless): No motor limit
On Resistance Forward: 0.00075 Ohms
On Resistance Reverse: 0.00075 Ohms
BEC Voltage: 6.0 V
BEC Current: 2.5A
Power Wire: 12-Gauge Maxx® Cable
Input Harness Wire: 26 Gauge / 100mm
Low Voltage Detection: 2-Stage indicators, switchable (on or off)
Thermal Protection: 2-Stage thermal shutdown
Profile selection: Sport Mode: 100% FWD, 100% BRAKES, 100% REV
Race Mode: 100% FWD, 100% BRAKES, NO REV
Training Mode: * 50% FWD, 100% BRAKES, 50% REV
Single-Button Setup: Yes, Traxxas EZ-Set®
Battery Input Connector : Traxxas High-Current Connector
Motor Types : Brushless
Ports: RX Input, auxiliary fan
*Battery expansion kit available ( TRA3725X ).
**With 3S LiPo battery and optional 30-tooth pinion gear (sold separately)Product Videos
The World's Most Advanced Ready-To-Race® Radio System:Features Overview
Total Control. Traxxas models deserve the world's most advanced Ready-To-Race® radio system. The radio system is the sole connection between the driver and machine. It has to be precise, comfortable, powerful, and reliable. The all-new Traxxas® TQi™ radio system arrives with a full complement of tuning features; long-range, high-output, 2.4GHz signal, and proven Traxxas reliability for rock-solid performance. It's so advanced; it doesn't even need an external antenna.
Traxxas Link Wireless Module Compatible:
The TQi's most important feature may already be in your pocket. Equip the TQi with a Traxxas Link Wireless Module ( TRA6511 , sold separately) and turn your Android, iPad® iPhone® or iPod touch® (sold separately) into a powerful tuning tool for your Traxxas model. The full-color display combines with the free Traxxas Link™ App to deliver an intuitive, high-definition, full-color graphical user interface that optimizes your radio system for ultimate vehicle control. Traxxas Link also opens the door to telemetry capability when you add optional sensors to your model. The Traxxas Link Application is available on Google Play and the App Store.
5-channel Micro Receiver with Fail-Safe Security:
The TQi 2.4GHz micro receiver fits easily into any vehicle, and features dual channel-1 outputs for easy installation in vehicles with dual steering servos—no Y-harness necessary! The integrated LINK button makes it fast and easy to bind the receiver, and the two-color LED indicates power-on and bind status for fool-proof control and convenience. Traxxas Link Model Memory allows the receiver to recognize up to thirty TQi 2.4GHz Traxxas Link enabled transmitters—just switch on and drive. In the event of signal loss due to an accidental switch-off or depleted batteries, the receiver will automatically return the throttle to neutral and hold the last commanded steering position. The Fail Safe programming is built-in and does not need to be set or activated. Three telemetry ports are incorporated in the 5-channel receiver to allow real-time data to be transmitted from your Traxxas model to the TQi transmitter.
Patented Sealed Watertight Receiver Box:
Stampede VXL's receiver is fully enclosed to protect it from the elements. The antenna and servo wires route neatly through a special watertight seal and a custom blue O-ring seals the receiver box to protect the receiver from water. The receiver can be removed for service and aftermarket receivers can be installed without losing the sealing properties of the box.
Maxx Cable 12-Gauge Wire:
This super-flexible, high-current, low-resistance 12-gauge, wire flows energy in and out of the electronic speed control for maximum performance. The Traxxas Connector combines with Maxx cable to extract all the power your battery can supply.
Hex Hardware:
Stampede VXL uses pro-quality, high-grade, metric hex-drive hardware for extra strength and easy maintenance and repair. The black-oxide rust-resistant finish provides a high tech look and feel.
Rubber-Sealed Ball Bearings:
Precision 5x11mm rubber-sealed bearings offer super low-friction performance and maximum protection in dirty environments. They are used in all exposed locations on the truck and provide virtually maintenance free reliability.
Heavy-Duty Hub Carriers & Steering Blocks:
Stampede VXL features all ball bearing front steering blocks and rear hub carriers. They utilize large 5x11mm ball bearings for long-term precision performance, smooth operation, and increased durability.
ProGraphix® Body:
Stampede VXL's fully trimmed and painted ProGraphix body comes with pre-applied decals to save you time and get you driving just minutes out of the box. Traxxas' ProGraphix bodies are the toughest, hottest looking bodies around.
Oil-Filled Ultra Shocks™:
Stampede's oil-filled Ultra Shocks utilize X-ring technology for a perfect seal and super-smooth performance. They are fully tunable with a wide range of oils, springs, and pistons. Features include pressure bladders for air/oil separation and spring clips to precisely change the ride height and spring pre-load. They can be renewed in minutes with our inexpensive rebuild kits.- Specs
Product Specifications
Part Number TRA36076-4-RED Scale 1/10 Drivetrain 2WD Kit Type No Battery Length 16.25" (413mm) Front Track 12.75" (324mm) Rear Track 12.75" (324mm) Weight 90 grams Height (Overall) 9.5" (241mm) Wheelbase 10.63" (270mm) Front Shock Length Long Rear Shock Length XXLong Front Tires (Pre-Glued) Talon™ 2.8" Rear Tires (Pre-Glued) Talon™ 2.8" Front Wheels 2.8" Black-Chrome (All-Star™) Rear Wheels 2.8" Black-Chrome (All-Star™) Electronic Speed Control VXL-3s™ Electronic Speed Control Motor (Electric) Velineon® 3500 Brushless Gear Ratio (Internal) 2.72 (Final Drive: 12.34) Differential Type Planetary Gear Pitch 48-Pitch Transmission Magnum 272™ Steering Single Point Chassis Type Modified Tub Chassis Material Composite Nylon Radio System (Transmitter) TQi™ 2.4GHz (2-Channel) Radio System (Receiver) Traxxas Stability Management™ ( TRA6533 ) Top-Speed 65+mph** Skill Level 2 *Battery Tray Dimensions 138mm x 46mm x 26mm Required Items NiMH or LiPo battery, Charger, 4 "AA" (Transmitter) Input Voltage NiMH 4-9 Cells (4.8 to 10.8 Volts DC); LiPo 2-3 Cells (7.4 to 11.1 Volts DC) Case Size 39mmW x 55mmD x 33mmH Motor Limit (Brushless) No motor limit On Resistance Forward 0.00075 Ohms On Resistance Reverse 0.00075 Ohms BEC Voltage 6.0 V BEC Current 2.5A Power Wire 12-Gauge Maxx® Cable Input Harness Wire 26 Gauge / 100mm Low Voltage Detection 2-Stage indicators, switchable (on or off) Thermal Protection 2-Stage thermal shutdown Profile selection Sport Mode: 100% FWD, 100% BRAKES, 100% REV Race Mode 100% FWD, 100% BRAKES, NO REV Training Mode * 50% FWD, 100% BRAKES, 50% REV Single-Button Setup Yes, Traxxas EZ-Set® Battery Input Connector Traxxas High-Current Connector Motor Types Brushless Ports RX Input, auxiliary fan - Reviews
