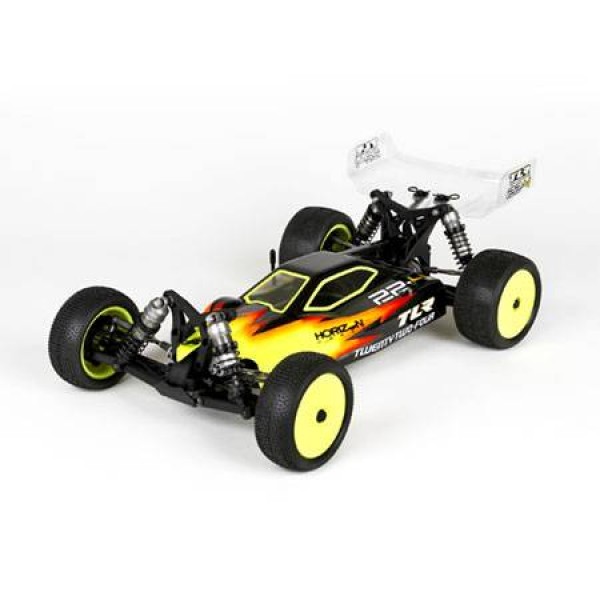

TLR 22-4 Race Kit: 1/10 4WD


LOADING IMAGES
TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD TLR 22-4 Race Kit: 1/10 4WD
TLR 22-4 Race Kit: 1/10 4WD
$409.95

[TLR03005]


Be the first to review this product

Sign up for price alert

Sign up to get notified when this product is back in stock

The 22-4G

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.

Check items to add to the cart or view all related products.

Overview

Features

  • 2.5mm hard-anodized aluminum 7075 aluminum chassis
  • Sealed 3-belt drivetrain with modular covers
  • Centralized forward motor mount
  • Gen II hard-anodized, big bore 12mm emulsion shocks
  • Adjustable Steering Ackerman
  • HDS Slipper Clutch
  • Ball Differentials with Tungsten Carbide Balls
  • Universal driveshafts
  • Integrated battery restraint system
  • Two sets of TLR wheels included
  • Compact, one-piece wing mount
  • Updated mid-cab body and wing
  • Front One-way clicker or full-time 4WD
  • Front and Rear Aluminum Camber Blocks (included)
  • Full ball bearings
  • Titanium Carbon Nitride (Ti-CN) hinge pins
  • Aluminum Rear Toe Plates and Aluminum Spindle Carriers (included)
  • Adjustable rear anit-squat

Overview

The 22-4™ (Twenty Two-Four™) buggy is the result of over two years of testing, tweaking and sweating the small stuff, with a focus on durability as well as performance. Everything from the chassis plate to the drivetrain has been designed or chosen by some of the best engineers and drivers in the world. It all adds up to a well-balanced machine that will excite drivers of any skill level, be they a club racer or a championship contender.


Specifications

Type: 4WD Off-Road Buggy Kit
Scale: 1/10
Length: 16.5 in (419.1mm)
Width: 9.41 in (239.0mm)
Height: 6.50 in (165.1mm)
Ground Clearance: Adjustable
Wheelbase: 11.10 in (282.3mm)
Chassis: 2.5mm Plate, 7075-T6 Aluminum
Suspension: Four Wheel Independent
Drivetrain: 4WD Belt
Gear Pitch: 48-pitch (84T Spur Gear)
Wheel Size: Width: 1.04 in (26.0mm front),1.50 in (38.0mm rear); Diameter: 2.2 in (55.9mm)
Kit/RTR: Kit
Shock Type: Coilover, Oil Filled
Body: Clear Polycarbonate
Ball Bearings: Full set
Minimum Age Recommendation: 14 years
Experience Level: Adult Supervision Required
Assembly Time: 5-7 Hours
Is Assembly Required: Yes

Specs

Product Specifications

Part NumberTLR03005
Scale1/10
Drivetrain4WD
Kit TypeUnassembled Kit
