Tekno RC ET48 2.0 1/8 Electric 4WD Off Road Truggy Kit


LOADING IMAGES
Tekno RC ET48 2.0 1/8 Electric 4WD Off Road Truggy Kit
$649.99
This a Tekno RC ET48 2.0 1/8 4WD Competition Electric Truggy Kit with 4mm 7075 Aluminum Chassis, Independent Servo/ESC Mount, and 16mm Bore Fluid Filled Shocks with CNC Delrin Pistons and Guides

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Tekno ET48 2.0 1/8 Electric 4WD Off Road Truggy Kit shares many of the parts and design elements first introduced on the EB48 2.0 buggy. A primary goal of this project was to minimise the additional parts needed to help keep drivers on the track or bashing at their favourite spot. You will find that quite a few of the parts you already have will work on the ET48 2.0. Features from the 2.0 buggies have been carried over, such as the industry-first suspension arms with built-in caster. This allows a longer overall arm length, ideal front-end geometry and increased durability. It has rear hubs that provide roll center adjustments by adjusting the axle height, and the active rear toe system has been carried over as well. A substantial amount of time was invested in developing the smoothest suspension package available to make the truck a breeze to drive in the roughest conditions. The quick access differentials with increased volume have also been included to improve consistency and efficiency with minimal maintenance time.

The ET48 2.0 body has an industry-first exposed front shock tower design as well as a more truck-like appearance. The body is lighter, creates more downforce for increased steering response, flies through the air with greater ease and closer resembles a full size vehicle. Finally, during testing, the body was found to last longer than "standard" truggy bodies.

Includes:

  • (1) ET48 2.0 1/8 4WD Competition Electric Truggy Kit
  • (1) Product Manual

Requires:

  • (1) 2/3 Channel Radio
  • (1) 1/8 Scale ESC and Motor
  • (1) High Torque Steering Servo (at least 300 oz/in of torque), Optional Brake Servo
  • (1) Pinion or Traktion Drive / Elektri-Clutch System
  • (1) 4-6S LiPo Battery
  • (4) 1/8th Scale Truggy Tires, (4) Wheels & CA Glue
  • (1) Paint for Body

Notes:

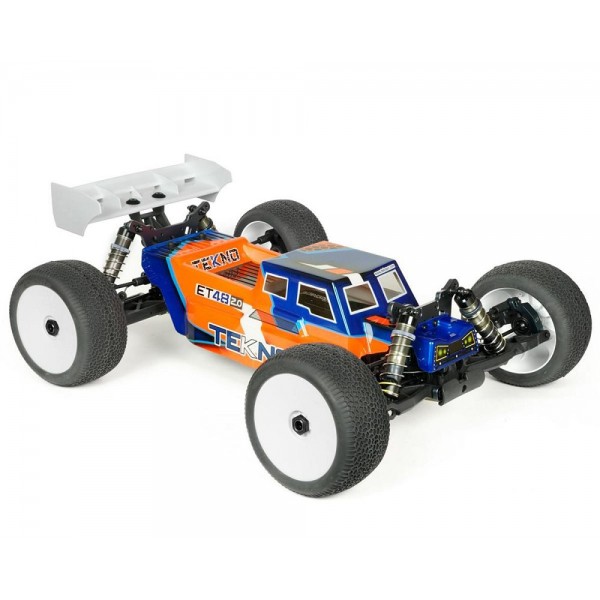

NOTE: Finished kit shown in photos is for illustrative purposes only.

features

  • 4mm CNC 7075 Aluminum Hard Anodized Lightened Chassis
  • Independent Servo/ESC Mount w/ Decoupled Radio Box/Battery Mounts
  • CNC 7075 Shock Towers, Pivot Blocks, Motor Mount, and Caster Blocks
  • 16mm Bore Fluid Filled Shocks with CNC Delrin Pistons and Guides
  • Rear Hub and Arm Insert System w/ Adjustable Roll Center and Toe
  • 3 Fluid Filled Easy Access Differentials
  • Trendsetting Low Profile Truggy Body Design
  • 1-Piece Tall Wing Mount and Ultra-Lightweight Wing
  • Proven Tekno RC Durability
  • All Metric Hardware

Specs

Ball Bearings: Full set
Battery: Sold Separately
Body: Low profile
Brakes: Integral with ESC (ESC not included)
Charger: Sold Separately
Chassis: 4mm CNC 7075 hard anodized aluminum
Completion Level: Kit
Differential: 3 fluid filled, gear type
Drivetrain: 4WD
Drive Type: Forward/Brake/Reverse
Power Type: Electric
Radio: Sold Separately
Receiver: Sold Separately
Scale: 1/8
Servos: Sold Separately
Shock Type: 16mm bore, oil-filled
Speed Control: Sold Separately
Spur Gear: 44 tooth
Vehicle Type: Truggy
Specs

Product Specifications

Part NumberTKR9600
Scale1/8
Drivetrain4WD
Kit TypeUnassembled Kit
Ball BearingsFull set
BatterySold Separately
BodyLow profile
BrakesIntegral with ESC (ESC not included)
ChargerSold Separately
Chassis4mm CNC 7075 hard anodized aluminum
Completion LevelKit
Differential3 fluid filled, gear type
Drivetrain4WD
Drive TypeForward/Brake/Reverse
Power TypeElectric
RadioSold Separately
ReceiverSold Separately
Scale1/8
ServosSold Separately
Shock Type16mm bore, oil-filled
Speed ControlSold Separately
Spur Gear44 tooth
Vehicle TypeTruggy
