Overview

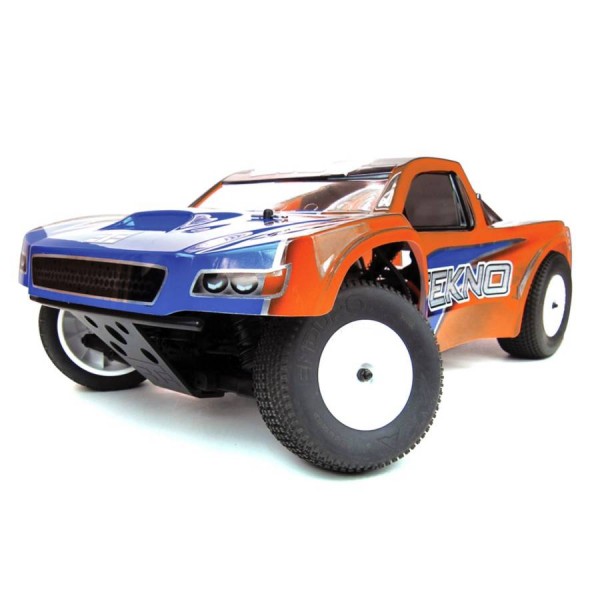

Dominate the short course circuit with the 1/10 SCT410.3 4x4 Kit from Tekno R/C! Here are just some of the things this first-class kit has to offer: a 0.16" CNC anodized aluminum chassis with overhang and adjustable braces, 16 mm anodized Big Bore oil shocks, an adjustable long travel suspension, ball bearing-supported steering and more.
Includes:
- SCT410.3 4x4 Kit
- Shocks
- Shock and Diff Oil
- Decals
- Instruction
Requires:
- 2 Channel radio/transmitter
- ESC and Pro4 SCT motor
- High torque steering servo
- 2S LiPo battery
- Compatible battery charger
- SC tires, wheels (SCTE offset) & CA glue
- SC body of your choice, paint for body
- Hex tools (1.5, 2.0, 2.5mm), nut drivers (5.0, 5.5, 7.0, 8.0mm), pliers, other tools
features
- Chassis: CNC aluminum 0.16" (4mm) thick, anodized black in color with short front and rear overhang for better bump handling and jump landing, adjustable front, center, and rear chassis braces for fine tuning flex
- Drive: Four wheel aluminum shaft drive with CVDs with captured pins
- Motor Mount: LCG lightened
- Differentials: Bevel gear
- Bumpers: Front and rear
- Shocks: Oil-filled 16mm bore hard anodized with conical piston design for varied compression and rebound rates, 4mm diameter steel shafts
- Shock Towers: CNC aluminum 0.16" (4mm) thick
- Suspension: Adjustable long travel design with adjustable length rear arms, and adjustable front arm sweep and angle, front and rear sway bars
- Steering: Ball bearing supported, narrow pivot posts, adjustable bump-steer and Ackerman, Ackerman describes the effect of the inside front wheel turning faster than the outside front wheel during turns
- Caster: Adjustable, caster/toe-in refers to the angle of the front suspension when viewed from the side of the car in relation to the chassis
- Camber: Adjustable front and rear, camber refers to the angle of the tops of the tires from vertical when viewed from front or behind vehicle
- Battery Tray: 2.0x5.8" (50x148mm)
Length: 20.87" (530mm)Specs
Width: 11.65" (296mm)
Wheelbase: 12.7-13.2" (323-335mm)
Weight: 6.6lbs (3000g) ready to run, approximately
Differential Ratio: F/R 10-40t, center 44t- Specs
Product Specifications
Part Number TKR5507 Scale 1/10 Drivetrain 4WD Kit Type Unassembled Kit Length 20.87" (530mm) Width 11.65" (296mm) Wheelbase 12.7-13.2" (323-335mm) Weight 6.6lbs (3000g) ready to run, approximately Differential Ratio F/R 10-40t, center 44t - Reviews
