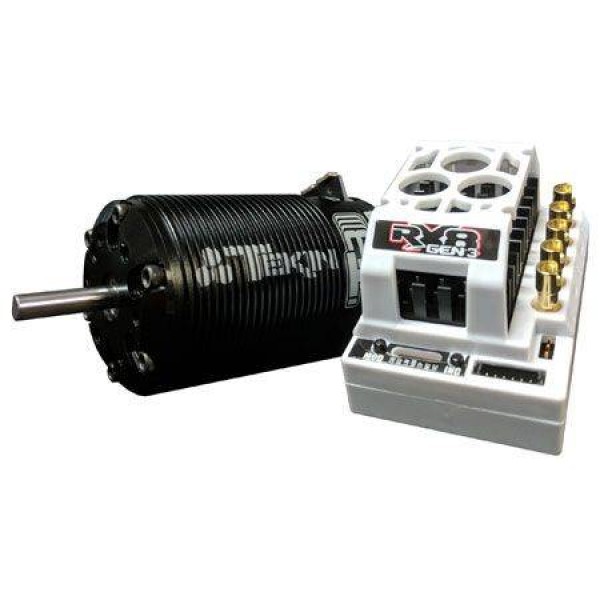

Tekin RX8 GEN3/Redline T8 GEN3 1/8 Buggy Brushless 2050kV ESC/Motor Combo

This is a Tekin 1/8 scale Rx8 Gen 3 ESC with a 4030 T8 Gen 3 2050kV Brushless Motor. Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security.

The T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range.

• ESC features:
• New hd gold-plated solder posts for easy soldering
• multi-fin high efficiency heat sink and optional high rpm cooling fan
• quicktune one touch programming
• Adjustable torque control
• Adjustable throttle and brake frequencies
• HD high voltage programmable BEC
• Hotwire programming port
• Data logging capability
• Sensor checker
• On-board temperature indicator
• ESC self diagnostics with error codes
• Fully proportional forward/ Brake/ Reverse
• Brushless and brushed motor drive
• Sensored or sensorless operation
• Lipo safe with custom voltage cutoffs
• Sensor plug for precise commutation
• HDAC: High density copper PCB's
• Ultra-smooth and precise throttle and braking control
• Motor features:
• CNC machined 6061 t6 billet aluminum ribbed heatsink can
• Matte anodized for maximum corrosion resistance
• Sensored and sensorless operation
• Low resistance hd solder tabs
• Rebuildable design
• Solderless sensor pcb replacement
• 4-pole neodymium sintered magnet
• Dual-plug sensor wire harness
• ABEC5 precision high speed oversized bearings
• Precision engineered for maximum energy conversion
• ROAR approved
• ESC Specs:
• Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
• Motor Limit Brushless Mode: 2S - No Limit; 3S - 4000kV; 4S - 3500kV; 5S - 2000kV; 6S - 1700kV
• Max Current: 300amps per phase
• Burst Current: 1000amps per phase
• BEC: 6.0v / 7.4v @ 8amps
• Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
• Weight: 2.7oz / 76.5g
• Motor Specs:
• Input Voltage: 4S - 2650kV/2050kV/1900kV; 5S - 1700kV/1400kV; 6S - 1400kv
• Weight: 311g / 11oz
• Shaft Dimensions: 5mm (.125") x 19mm
• Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)
• Motor Length: 69mm / 2.71"
• Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm
• Rotor Size: 18.5mm
