Tekin BXR Waterproof Brushed ESC 20T Limit


LOADING IMAGES

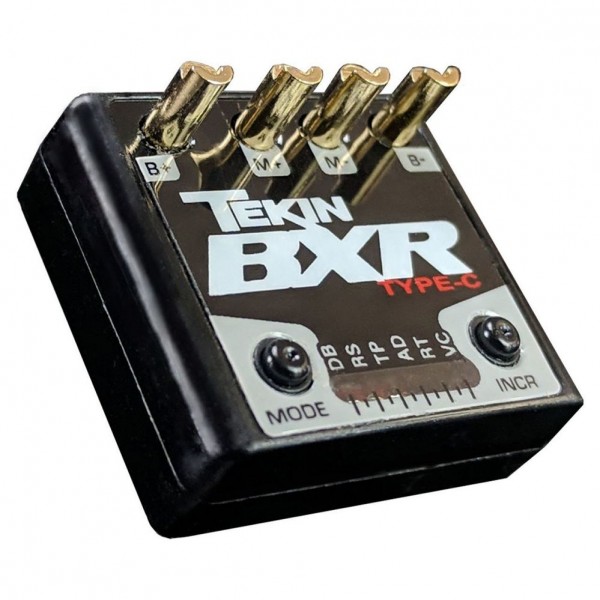

Tekin BXR Waterproof Brushed ESC 20T Limit
$69.99
Tekin part #TEKTT1094, BXR Waterproof Brushed ESC, 20T Limit. For Crawlers

Availability: Please call for availability
We might still have one laying around..

* Some of the items on this site are still being inventoried if you want to confirm the item is in stock please contact us.
Overview

Overview

The Tekin BXR Waterproof Brushed Motor Crawler ESC gives your scale crawler precise control and features that are unmatched by any other brushed only ESC. Features like 3rd channel input for on the fly drag brake adjustments and Active Drag Brake make the BXR the perfect scale crawler solution. Tekin's Element proof design allows you to hit the trails with confidence no matter the weather. Small capable and versatile - the BXR is ready for any adventure.

Notes:

Standalone BEC unit required for use with 3S LiPo and high torque servos

features

  • Drag brake adjust with your radio
  • Active drag brake system
  • Element proof design
  • Fully proportional Forward/Brake/Reverse
  • Runs Brushed motors only
  • QuickTune One-Touch Programming
  • On Board temperature indicator
  • LiPo safe with custom voltage cutoffs
  • Solder posts for easy wire management
  • HotWire PC programming access (requires Tekin HotWire - not included)
  • Programmable Features:
    • Active drag brake
    • Reverse strength
    • Drag Brake
    • Brake strength
    • Current limit
    • Neutral width
  • Brushed Modes: Fwd/Brk, Fwd/Rev
  • Voltage cut off: None, 2S, 3S, Set per cell
  • Throttle profiles: 5 choices, mild to aggressive (requires HotWire - not included)
  • Adjustable throttle and brake minimums

Specs

Control: Forward/Brake/Reverse
Input Voltage: 4-9 Cells / 2-3S LiPo
Motor Limit: 20T on 2S, 30T on 3S LiPo
BEC: 5V/3.7A (standalone BEC unit required for use with 3S LiPo and high torque servos)
Weight: 0.39 oz / 11g w/wires
Dimensions: 25.4x23.6x9mm
Specs

Product Specifications

Part NumberTEKTT1094
ControlForward/Brake/Reverse
Input Voltage4-9 Cells / 2-3S LiPo
Motor Limit20T on 2S, 30T on 3S LiPo
BEC5V/3.7A (standalone BEC unit required for use with 3S LiPo and high torque servos)
Weight0.39 oz / 11g w/wires
Dimensions25.4x23.6x9mm
