- Overview
Overview

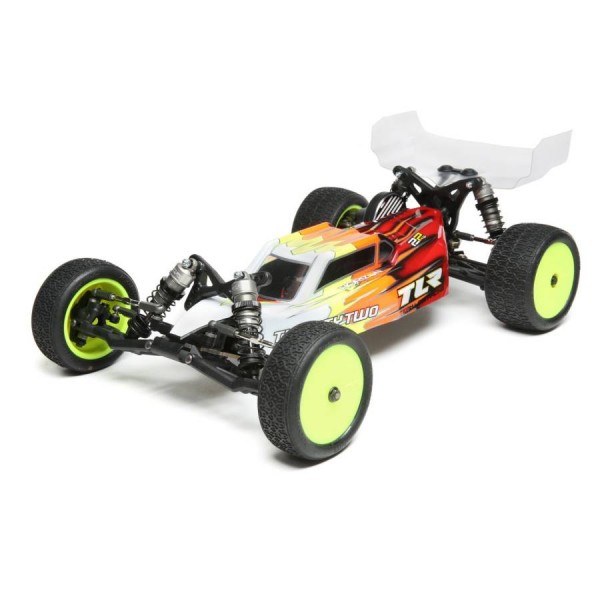

Adapt it how YOU want itThe 22 4.0 kit builds on the ingenious engineering of the 22 3.0 buggy by giving racers the ability to adapt the transmission and suspension configurations to any track.
Requires:
- Motor
- Electronic Speed Control
- Servo
- Tires
- Radio System
- 48 Pitch Pinion Gear
- Charger
- Battery
- Paint
features
- Lightweight 2.5mm hard-anodized 7075 t-6 aluminum chassis
- VLA front suspension
- 3-gear laydown/stand up transmission (laydown shown)
- Updated ball differential
- Revised motor location
- Transverse or fore-aft battery mounting options
- Gen ii 12mm big-bore shocks
- Ticn coated shock shafts and hinge pins
- Aluminum bleeder caps
- Adjustable rear pivots for toe and anti-squat
- Adjustable aluminum rear camber block
- Bell crank steering system
- Hds slipper with hd spring
- New spindle with adjustable trail and ackermann
- Rear hub with aluminum plate
- Screw mounted rear wing
- Stiffezel mud guards, arms, waterfalls
- Open ended ball cups
- Standard and hrc front pivots included
- Adjustable diff height, laydown
- Adjustable shock location, laydown
Type: Race KitSpecs
Scale: 1/10
Length: 15.0 in (382mm)
Width: 9.8 in (250mm)
Height: 5.8 in (148mm)
Wheelbase: 11.0 in (280mm)
Weight: Varies with equipment
Chassis: 2.5mm Milled Plate, 7075-T6 Aluminum
Suspension: Lower A-Arm, Upper Adjustable Link
Drivetrain: 2WD
Tire Type: 2.2 in Buggy (Not Included)
Motor or Engine: 540 Size (Not Included)
Speed Control: Not Included
Radio: Not Included
Servos: Not Included
Batteries: Not Included
Charger: Not Included
Gear Pitch: 48-Pitch
Wheel Size: 2.2 in (56mm)
Kit/RTR: Kit
Shock Type: 12mm Big Bore, Oil Filled
Body: 22 4.0 Cab Forward, 0.7mm LW
Ball Bearings: Full Rubber Sealed Ball Bearings
Recommended Environment: Indoor/Outdoor
Assembly Time: 3-5 Hours
Is Assembly Required: YesProduct Videos
TWO TRANSMISSION CONFIGURATIONS INCLUDED:Features Overview
Maximize performance for any surface with the two transmission options that are included. The stand-up option from the 22 3.0 kit provides the best balance for low-to-medium grip surfaces. The laydown option moves the motor about 20mm closer to the center of the chassis. Differential height can be adjusted for soil and artificial surfaces.
ADJUSTABLE REAR SHOCK LOCATION:
The rear shock tower can be flipped for a forward or rearward bias. This means the GenII rear shocks can be mounted in front of the rear tower and suspension arm, or in the traditional location on the back of the arm. This is a popular tuning option for high-grip surfaces that increases forward weight bias, rear end stability, and landing ability.
ALUMINUM-PLATE REAR HUB:
The molded-composite hub base allows a bearing to be press fit without play and minimal unspring weight. An aluminum plate is secured to the hub with an M3 screw and ball stud which is vertically adjustable. Now the ball stud is supported by aluminum from pushing or pulling out, while still threading into composite so it won’t work loose.
STIFFEZEL SUSPENSION COMPONENTS:
The higher glass content of Stiffezel molded composite is used in strategically placed suspension components for more consistent and stable driving. This includes the front and rear suspension arms, mud guards, stand up shock tower, and waterfall chassis braces. The result is a buggy that corners more consistently and lands with great improvement.
BALLAST TUNING OPTIONS:
Optional brass ballast weighs can be mounted under the servo, under the electronics, and under the laydown transmission idler. This makes it easy to tune the static weight and weight bias for changing track conditions. When running a higher static weight, the chassis will become more neutral and easier to drive on ultra-high-grip surfaces.
FULLY UPDATED BALL DIFFERENTIAL:
Using all of the revised components from the 22 2.0 ball differential, the 22 4.0 diff will deliver super-smooth, long-lasting performance. Features include flattened 2nd operation outdrives, revised thrust washers, tungsten carbide diff and thrust balls, a one piece nut, and a self-centering diff gear.
GENII 12MM BIG BORE SHOCKS:
These shocks continue to set the standard for high performance and easy maintenance. Features include X-Ring Seals, machined shock bushings, machined 2 x 1.6 and 2 x 1.7mm pistons, TiCN coated shock shafts, aluminum bleeder screw caps, hard-anodized threaded shock bodies, low-frequency springs, and spring cups that snap onto the shock shafts.
ALL-NEW LIGHTWEIGHT 7075-T6 ALUMINUM CHASSIS:
The chassis has been revised to accommodate the battery mounting options for both transmission configurations. Milled pockets have been added that lighten the overall weight of the chassis. The pockets also function as mounting stations for the optional brass ballast weights (sold separately).
INCLUDED OPTION PARTS:
The 22 4.0 kit comes loaded with optional upgrades like a milled 7075 aluminum top shaft, motor plates, rear camber block, clamping rear hexes and ball stud spacers throughout. It also includes HRC and LRC front pivots, standard and +3 rear hubs, aluminum bleeder shock caps, machined shock pistons and internals.
22 4.0 LIGHTWEIGHT BODY:
An all-new, low-profile body was designed for the 22 4.0 buggy that provides outstanding aerodynamic performance. Pulled from 0.7mm polycarbonate, it also has the perfect balance of light weight and durability for 2WD buggy racing.- Specs
Product Specifications
Part Number TLR03013 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Type Race Kit Scale 1/10 Length 15.0 in (382mm) Width 9.8 in (250mm) Height 5.8 in (148mm) Wheelbase 11.0 in (280mm) Weight Varies with equipment Chassis 2.5mm Milled Plate, 7075-T6 Aluminum Suspension Lower A-Arm, Upper Adjustable Link Drivetrain 2WD Tire Type 2.2 in Buggy (Not Included) Motor or Engine 540 Size (Not Included) Speed Control Not Included Radio Not Included Servos Not Included Batteries Not Included Charger Not Included Gear Pitch 48-Pitch Wheel Size 2.2 in (56mm) Kit/RTR Kit Shock Type 12mm Big Bore, Oil Filled Body 22 4.0 Cab Forward, 0.7mm LW Ball Bearings Full Rubber Sealed Ball Bearings Recommended Environment Indoor/Outdoor Assembly Time 3-5 Hours Is Assembly Required Yes - Reviews
