- Overview

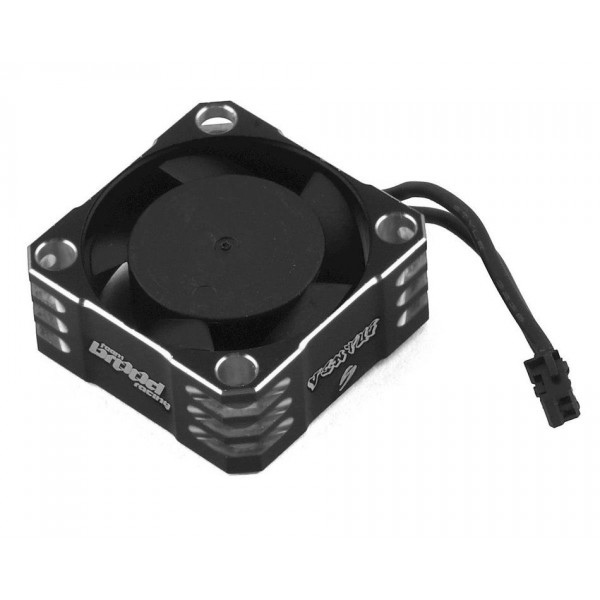

The Ventus S features a heavily machined aluminum casing that will help to protect the fan blades in the event of a crash, and is lighter than a typical 30mm fan making it perfect for a weight conscious enthusiast.
The fan is compatible with 2S HV LiPo systems (8.75V max), has dual ball bearings, and is pre-wired with a 2 pin connector that can be plugged directly into the receiver or another source of power. This fan can be mounted with double side tape, and is an excellent choice for a variety of applications ranging from 1/12 to 1/8 scale.
NOTE: For optimal performance, the fan should be installed at least 5mm away from the motor to prevent magnet interference and to allow sufficient air flow.
Features:
- 25mm aluminum cooling fan
- Aluminum casing helps dissipate heat and protect the fan blades
- Compatible with 2S HV LiPo systems (8.75V max)
- Anodized black with silver chamfered edges
- Perfect for 1/12, 1/10 and 1/8 applications
- 2 pin connector for easy installation
- 30 Day Warranty against defects
Specs:
- Dimensions: 25x25x10mm
- Material: Aluminum & Plastic
- Bearing: Dual Ball Bearing
- Operating Voltage: 5V - 8.4V
- Max RPM: 32,000
- Current: 0.52A @7.4V
- Connector: JST 2-Pin
- Fan Applications: 1/10 Scale, 1/12 Scale, 1/8 Scale
- Specs
Product Specifications
Part Number TBR-SVENTUSSILVER - Reviews
