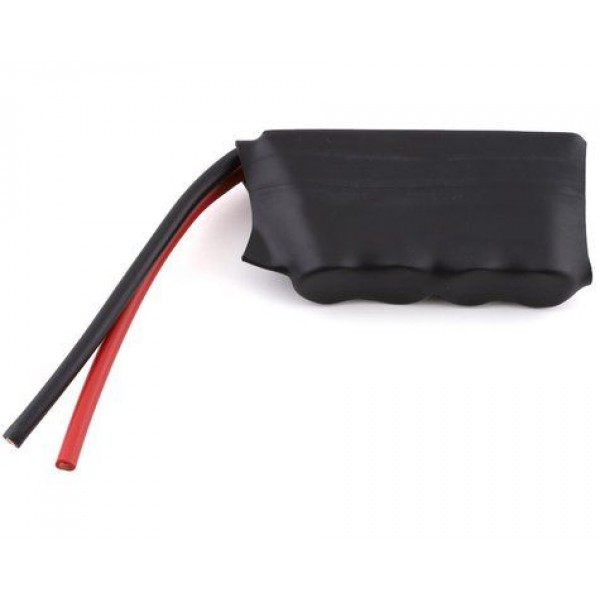

Team Brood Speedrun Low ESR Capacitor Bank (2S-8S)

Capacitor Bank Micro is designed for No Prep Drag Cars that require a lower profile Cap bank. Featuring eight 470 uF 35v capacitors with low ESR and high ripple current ratings while keeping a lower profile than other cap packs. Our capacitor banks are assembled only using the best components on our custom made circuit boards. Large solder tabs allow you to solder on different lengths or gauges of wire, while replacement heatshrink is also available.

Specs:

• Capacitance Rating: 3760 uF
• Voltage Rating: 35v
• Ripple Current @ Low Frequency Rating: 1.64 Amps @ 120Hz per capacitor
• Ripple Current @ High Frequency Rating: 2.18 Amps @ 100kHz per capacitor
• ESR Rating: 19 mOhms per capacitor
• Temperature Rating: 105 C
• Wire Size: 4 Inches 13 AWG
• Weight: 44 Grams (Including Wire)
• Dimensions (Does NOT include Wire)
• Length: 71mm
• Width: 31mm
• Height: 25mm
