Overview

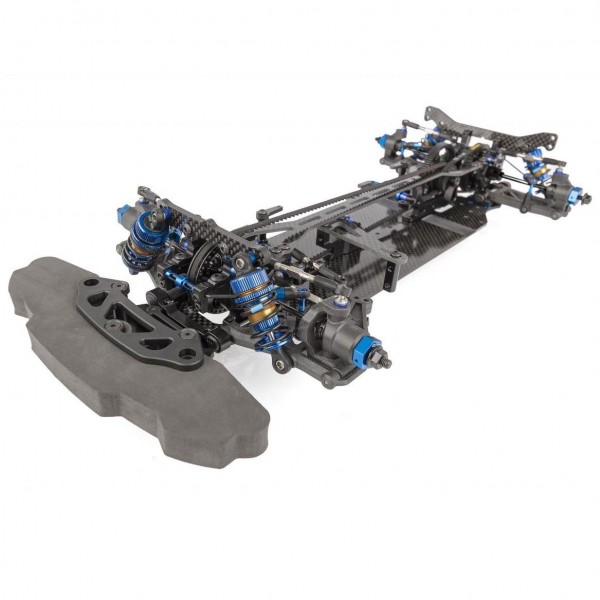

With current touring car platforms reaching higher plateaus of precision and performance, the engineers behind the doors of Area 51 wasted no time to ensure that the TC7 exceeds expectations. The TC7.2 comes packed with a host of new components and the features necessary to keep you on top.
As the on-road market advances at an ever-increasing rate, more is demanded from the chassis to accommodate the ultra-competitive racing classes. A successor to the TC7.1, the TC7.2 maintains the proven suspension geometry, but adds refinement to chassis balance and the flex necessary for today's racing class. The centrally positioned IFM (Inline Flex Mount) motor mount adds several mounting configurations to help fine-tune chassis flex to the racing surface, and has an integral mounting position for an optional chassis pitch control system (PCS). The TC7.2 also carries an all-new aluminum rear gear differential for the ultimate in precision and heat dissipation, as well as an ultra-light front spool assembly. Along with a list of new features, the TC7.2 Factory Team gives you everything you need to race at the highest level -- all without sacrificing low part count or affordability.
Includes:
- TC7.2 Chassis
- Servo
- Differential Parts
- Transmission Parts
- Shock assembly
- Necessary hardware
- Detailed Product Manual
Requires:
- 1/10 scale electric motor
- Electronic speed control
- Battery: 7.4V LiPo, 6.0V LiFe, or 7.2V NiMH/NiCD battery
- Appropriate battery charger
- 2-channel surface transmitter
- 2-channel receiver
- Steering servo
- 1/10 scale Lexan® 190mm car body
- Lexan specific spray paint for body
- 1/10 scale rubber or foam touring car wheels and tires
- Pinion gear (48 pitch)
- Appropriate tools
features
- All-new, ultra-precise aluminum rear gear differential for maximum performance
- Ultra-lightweight front spool with replaceable hardened steel outdrives
- One-piece IFM (Inline Flex Mount) motor mount system
- Updated bearing caps with integral camber link mount for ultra-fine link length adjustments
- Updated floating servo mount
- New battery mounting system for greater adjustability
- Updated narrow chassis shape with optimized flex characteristics
- PCS (Pitch Control System) option to further adjust chassis flex characteristics
- FOX® Shock Bodies with Genuine Kashima® Coat, SS
- DCV (Dual Constant Velocity) drive shaft assemblies included for front drive
- Ultra-lightweight carbon composite suspension components
- Aluminum rear CV bones
- 26 precision ball bearings
- All New Ultra-Precise Rear Gear Differential for Maximum Performance:
- Aluminum diff case for precision gear alignment and increased heat dissipation
- Durable composite gear set for minimized mass
- Hard anodized aluminum outdrives for low wear and long life
- Outdrives supported by ball bearings eliminates binding under load
- Lightweight belt pulley with relief holes to help clear debris
- All New Ultra-precise Rear Gear Differential for Maximum Performance
- Updated Narrow Chassis Shape with Optimized Flex Characteristics:
- 2.25mm graphite laminate with updated profile and symmetric pockets for optimal chassis flex
- A narrow 84mm width to minimize chassis dragging at maximum chassis roll angles
- The chassis incorporates mounting position for 1UP DTC (Dynamic Toe Control) rear end option
- Chassis ballast mass mounting locations to fine tune mass balance
- Updated Narrow Chassis Shape with Optimized Flex Characteristics
- New Battery Mounting System for Greater Adjustability:
- Battery position can be set front-back and in-out to help fine tune chassis mass balance
- Battery tabs for tape free battery installation
- Adjustable to fit dimensional differences between battery manufacturers
Batteries: Not IncludedSpecs
Body: Not Included
Charger: Not Included
Completion Level: Kit
Drivetrain: 4WD
Length: 14.2 in (360mm)
Motor Type: Not Included
Radio: Not Included
Servos: Not Included
Size/Scale: 1/10
Speed Control: Not Included
Suspension: Carbon Composite
Vehicle Type: Touring Car
Weight: Chassis Only - 1.12 lbs (508g)
Wheel Type: Not Included
Wheelbase: 9.9-10.1 in (253.5-257.5mm)
Width: < 7.5 in (190mm)- Specs
Product Specifications
Part Number ASC30122 Scale 1/10 Kit Type Unassembled Kit Batteries Not Included Body Not Included Charger Not Included Completion Level Kit Drivetrain 4WD Length 14.2 in (360mm) Motor Type Not Included Radio Not Included Servos Not Included Size/Scale 1/10 Speed Control Not Included Suspension Carbon Composite Vehicle Type Touring Car Weight Chassis Only - 1.12 lbs (508g) Wheel Type Not Included Wheelbase 9.9-10.1 in (253.5-257.5mm) Width < 7.5 in (190mm) - Reviews
