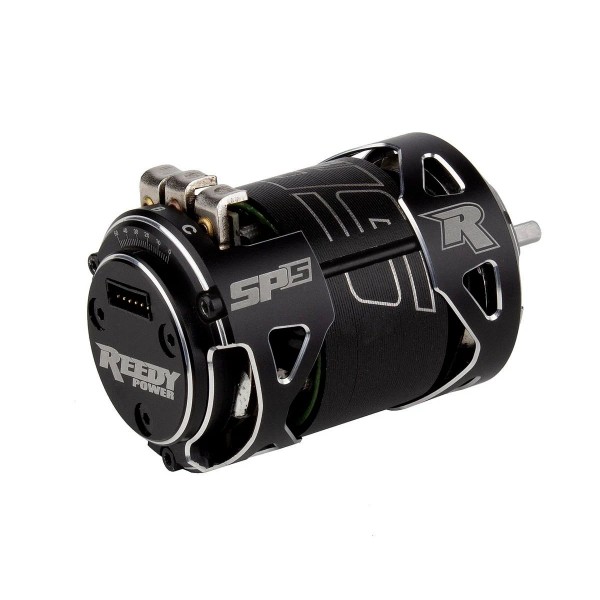

Introducing the Reedy Sonic 540-SP5 Spec Brushless Motor, a powerhouse of performance designed to deliver legendary Reedy power and precision. With its innovative and unique design, the SP5 is optimized to provide unrivaled power and torque.
The key to the exceptional performance of the SP5 lies in its meticulously crafted stator. Built in-house, the stator's profile is carefully designed to maximize torque and power output without sacrificing RPM. A high-quality copper magnet wire, maximized within legal limits and wound with precision, minimizes resistance and is treated with heat transfer epoxy to dissipate heat efficiently. This results in reduced fade during races, allowing for consistent performance.
To further enhance performance, the SP5 features an oversized collector ring that dissipates heat effectively, reducing resistance and power loss. Together with thick solder tabs, this design minimizes power loss and ensures optimal performance.
The rotor of the SP5 is perfectly balanced and utilizes a high-strength magnet, taking full advantage of the dimensional rules to deliver fade-free power with maximum effectiveness. Supported by precision stainless steel ball bearings, the rotor accommodates high RPM loads with exceptional efficiency and reliability. The motor also boasts a high-quality sensor board, completing its top-notch internal structure.
On the exterior, the SP5 boasts a lightweight two-piece CNC machined aluminum housing, complemented by an aluminum endcap and timing adjustability for precision tuning in different applications. This lightweight design not only improves vehicle handling but also enhances chassis tuning flexibility, ensuring an all-around superior performance.features
- CNC-machined housing with optimized air cooling
- Custom high-power stator design
- Low-resistance solder tabs and collector ring
- Balanced rotor with high-strength magnet
- Dual precision ball bearings
- Aluminum end cap with adjustable timing
- Completely rebuildable
- Competition proven
- Built to ROAR specifications
Input Voltage: 1-2S LiPoSpecs
Diameter: 35.9mm
Length: 52.5mm
Shaft Diameter: 3.15mm
Weight: 147-151g- Specs
Product Specifications
Part Number ASC27482 Input Voltage 1-2S LiPo Diameter 35.9mm Length 52.5mm Shaft Diameter 3.15mm Weight 147-151g - Reviews
