Overview

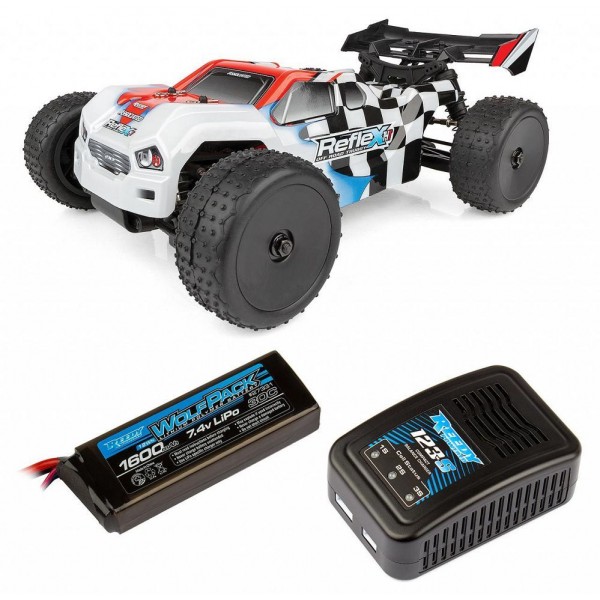

Team Associated's 1/14 scale REFLEX 14T 4WD electric truggy comes out of the box already assembled, with a Reedy Power brushless speed control, brushless motor, high-torque digital steering servo, and 2.4GHz radio system. With all that power at your disposal, the truggy's design effortlessly channels it into 4WD fun! The adjustability offered by the turnbuckles, caster blocks, and rear hubs make the REFLEX 14T ready for any terrain you can run on. Additional features include three sealed differentials, aluminum steering rack, and lightweight aluminum center driveshaft. Adding a battery pack of your choice to the REFLEX 14T RTR, you can now have big performance in a small-scale Ready-to-Run package! Think small. Win big.
Includes:
- (1) Reflex 14T Ready-To-Run Truggy
- (1) Reedy Wolfpack 7.4V 1600mAh 30C 2S LiPo Battery with T-Plug connector
- (1) Reedy 423-S Compact Balance Charger
- (1) Multi-Wrench
- (1) Spare Hardware
- (1) Product Manual
Requires:
- (4) AA batteries
features
- 2.4GHz 2-channel radio system
- High-Torque Digital Servo with spring-style servo saver
- Powerful Reedy 4500kV Brushless Motor
- Water-resistant high-power Reedy brushless speed control with T-plug connector
- Three sealed differentials
- Threaded, coil-over shock absorbers
- Adjustable turnbuckles
- Adjustable inserts for caster blocks and rear hubs
- Aluminum steering rack
- Front universal driveshafts
- Sleek and stylish race-inspired body
- Molded tub chassis with covered center driveshaft
- Aluminum center driveshaft
- 12mm drive hex
Approximate Assembly Time: Less than 1 HourSpecs
Batteries: 7.4V 1600mAh 30C 2S LiPo
Battery Dimensions: 100x30x20mm
Charger: Reedy 423-S 2S/3S LiPo AC Charger
Completion Level: Ready-To-Run
Drivetrain: 4WD
Internal Gear Ratio: 2.46:1
Length: 11.97 in. (304mm)
Motor Type: 4500kV Brushless
Radio: XP 2.4GHz 2 channel radio
Size/Scale: 1/14
Speed Control: SC300-BL Brushless BEC ESC
Vehicle Type: Truggy
Wheel Hex Size: 12mm Hex
Width: 7.95 in. (202mm)Product Videos
- Specs
Product Specifications
Part Number ASC20176C Scale 1/14 Drivetrain 4WD Kit Type RTR Approximate Assembly Time Less than 1 Hour Batteries 7.4V 1600mAh 30C 2S LiPo Battery Dimensions 100x30x20mm Charger Reedy 423-S 2S/3S LiPo AC Charger Completion Level Ready-To-Run Drivetrain 4WD Internal Gear Ratio 2.46:1 Length 11.97 in. (304mm) Motor Type 4500kV Brushless Radio XP 2.4GHz 2 channel radio Size/Scale 1/14 Speed Control SC300-BL Brushless BEC ESC Vehicle Type Truggy Wheel Hex Size 12mm Hex Width 7.95 in. (202mm) - Reviews
