Overview
1/8 Cross-class compatibility, built to win it allTeam Associated has taken the same performance engineering and developed found in the RC8B3.1 nitro buggy and used that data to create the new brushless-powered RC8B3.1e Team Kit!
Answering the demands of the fastest-growing 1:8 scale e-buggy racing class, the RC8B3.1e Team Kit was designed specifically for brushless power. Features include new H.T.C. (High Torque Capacity) differentials with increased fluid capacity and a more consistent feel lap after lap, precision CVA drive shafts front and rear to keep suspension travel free through the entire stroke, and a unique, proprietary, hard-anodized 7075-T6 aluminum chassis ingeniously designed for optimum weight distribution and superior handling!
Cross-class chassis compatibility. Knowing that racers would be competing in both 1:8 nitro and electric at the same events, the RC8B3.1e was designed to handle and respond to changes just like the RC8B3.1. This similar handling characteristic gives the racer a huge advantage, as tuning changes can be applied to both buggies seamlessly.
All of these improvements lead to a car that is easier to drive, more consistent lap after lap, and suits a wider variety of tracks.
Designed to handle, built to win. The RC8B3.1e Team Kit was designed to give the dedicated electric 1:8 racer the highest level of performance that will help take your racing program to the next level.Requires:
- 2 channel radio/transmitter -- FM/PCM/2.4GHz recommended
- Transmitter batteries
- 1:8 scale speed control, motor, and pinion (see motor manufacturer's gearing recommendations for correct pinion size)
- High-torque steering servo
- 4S LiPo battery and charger
- 1:8 scale buggy wheels and tires
- CA (Cyanoacrylate) glue
- Polycarbonate-specific spray paint or polycarbonate-specific bottled paint and airbrush
- Tools: Needle nose pliers, Hobby knife, Reamer/hole punch, Ride Height Gauge
Notes:
* This vehicle needs extra parts to make it operational. Click on the SPECS tab above to see what extra equipment you'll need to make the vehicle operational, such as engine and servos.

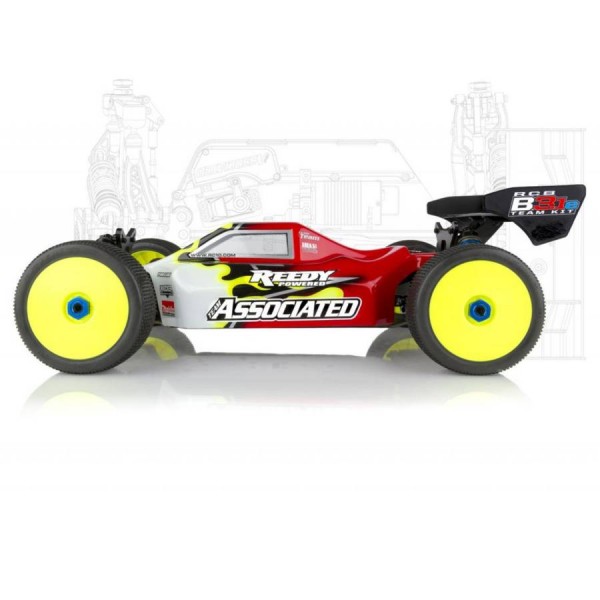

* Prototype shown. RC8B3.1e Team Kit shown equipped with items NOT included in the kit: Reedy motor, battery, ESC, servo, XP receiver, wheels, tires, and pinion gear. Body comes clear. Assembly and painting required. Due to ongoing R&D, photos may not match final product.features
- H.T.C. (High Torque Capacity) differentials offer increased fluid capacity and a more consistent feel lap after lap
- 94mm CVA driveshafts increase traction and chassis support
- Suspension arms have been updated to modern race specs
- Anti-roll linkage curves have been altered to provide more chassis support throughout the suspension travel
- All suspension arm pivots have been revised for more ground clearance, resulting in better jumping and landing while also improving durability
- 16mm Big Bore 6061 aluminum shock bodies with bleeder style caps
- New shock springs (20mm I.D.)
- Highly efficient drivetrain utilizes straight-cut gears to provide great acceleration and increased run time
- Hard-anodized 7075 aluminum chassis with keyed lower suspension plates
- Enclosed receiver box
- Full Factory Team rubber-sealed ball bearings
- Easily accessible front and rear differentials
- Pro-Line(R) "Predator" body included
- Two-piece sliding motor mount for easy gear mesh adjustment and motor removal
- RC8B3.1e shares 90% parts compatibility with the RC8B3.1 nitro buggy, offering the perfect solution for multi-class racers
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Buggy
Scale Size: 1:8 Scale
Assembly Level: Kit*
Length: 488mm (19.21in)
Width: varies
Wheelbase: 327.5mm (12.89in)
Weight: varies
Drive: 4WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.- Specs
Product Specifications
Part Number ASC80936 Scale 1/8 Drivetrain 4WD Kit Type Unassembled Kit Power Source Electric Terrain Off-Road Body Style Buggy Scale Size 1:8 Scale Assembly Level Kit* Length 488mm (19.21in) Width varies Wheelbase 327.5mm (12.89in) Weight varies Drive 4WD - Reviews
