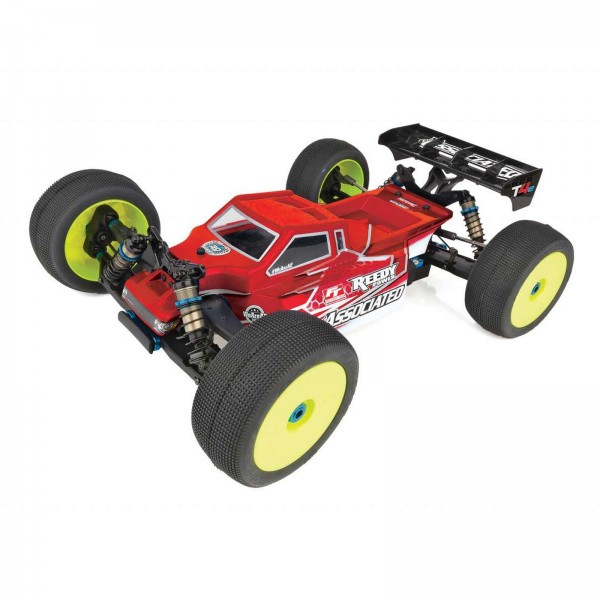

Team Associated 1/8 RC48T4e 4WD Team Kit

1/8 scale off road racing is one of the hobby's most challenging disciplines; it requires a high standard and demands attention to detail. The latest development to come from Associated Electrics' Area 51 is designed to push boundaries of performance and build upon the number of accolades accumulated by the RC8 series.

• New chassis layout featuring two saddle pack-style battery configurations. Both configurations include a centrally mounted center differential and in-line center driveshafts for superior drivetrain efficiency and equalized chassis balance
• Four battery configurations to choose from:
• Two 2S shorty LiPo batteries for lowest CG and exceptional weight bias
• Two full size “saddle pack” LiPo batteries for lowest CG and exceptional weight bias
• One 4S shorty LiPo battery for simplified setup and more centralized weight bias
• One full size LiPo battery for simplified setup and more centralized weight bias
• Innovative front-end geometry with new 8° steering blocks are paired with a new wider upper suspension arm pivot for improved steering balance and predictable handling in all conditions.
• New gearboxes are specific to front and rear with larger bearing sizes resulting in longer life of ring and pinion gears:
• Front gearbox is a 3.5° inclined pinion gear angle to straighten the center driveshaft for increased drivetrain efficiency and reduced phasing and vibration
• Rear gearbox is a 0° pinion gear angle and a center mounted rear chassis brace
• New front shock tower design with updated suspension geometry and body mount positions for all styles of truck bodies
• Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability
• Front upper suspension arm updated to have bushing insert for improved fitment and performance
• New rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue, centralizes shear forces, and improves the life of rear-end drivetrain parts
• There are three different chassis flex options using two chassis hole mounting locations and an optional turnbuckle ball for flex in more degrees of freedom
• New +2 mm and +4 mm shock rod ends for finer adjustment of droop and up-travel settings
• New 35.5 mm front and 44.5 mm rear shock shafts for improved dampening
• New rear hub features a symmetrical left and right common design with axle height inserts for adjustable roll center tuning options
• +2° steering block arm
• V3 differentials with 46T ring and 10T pinion gears for improved gear ratios
• RC8T3.2 split center diff mounts with aluminum center top plate
• 16mm shocks equipped with improved material locking spring cups and rod ends, V2 springs, “stiff” style shock bladder, combination bleeder/emulsion caps, and blue aluminum threaded collars
• RC8B3.2 narrow C and D arm mounts
• New rear wing mount has adjustable wing angle shims, significant strength improvements, an aerodynamic shape, and extra clearance for shock position adjustment
• The adjustable rear wing has more vertical fins for increased straight-line stability, a taller rear lip height for increased downforce, and increased strength in various areas to reduce bending fatigue

Speed Control: Sold Separately
Charger: Sold Separately
Receiver: Sold Separately
Radio: Sold Separately
Vehicle Type: Truggy
Battery: Sold Separately
Product Length: 22.05" (560 mm)
Scale: 1/8
Completion Level: Kit
Drivetrain: 4WD
Power Type: Electric
Servos: Sold Separately
Rear Wing:
Wing has verticle fins and a trailer rear lip for increased straight-line and down-force

Chassis Brace:
New Rear chassis brace is mounted centrally to the gearbox, which reduces material fatigue

Battery Configuration:
Chassis layout featuring saddle pack-style battery configurations: Two 2S shorty or one 4S shorty

Front Shock Tower:
New front shock tower design and body mount positions for all styles of truck bodies

16mm Shocks:
16mm shocks equiped with improved material locking spring cups and rod ends

Upper Suspension Arms:
Front upper suspension arms updated to have bushing insert for improved fit and performance

Front-End Geometry:
Innovative front-end geometry with new 8" steering blocks

Clamping Motor Mount:
New two-peice clamping motor mounts make for easy and secure gear mesh adjustments

Dogbone Driveshafts:
Front and rear center dogbone driveshafts for improved drivetrain efficiency and durability

Gearbox:
New front and rear gearbox designs are engineered for better drivetrain efficiency

Wing Mount:
Wing mount features adjustable wing angle shims, strength improvements, and aerodynamic strength
