A PERFORMANCE RIG BUILT TO ENDUREAt the heart of the Enduro is our revolutionary Stealth(R) X gearbox. Although the exterior appears to have a conventional 3-gear transmission look, the inside is far from conventional. The Stealth(R) X features the ability to adjust the rear drive ratio independently from the front drive across three levels: stock overdrives the front end 5.7%, option 1 provides a one-to-one drive ratio front-to-rear, and option 2 overdrives the front end 11.83% (included in RTR).
Feeding the power to the tires are 3-piece telescopic driveshafts with an extruded aluminum center section, universal front drive axles, and hardened steel ring and pinion gears. With the Enduro drivetrain, delivering useful power will not be an issue.
We relocated the steering link assembly from the conventional location (in front of the axle) to behind the axle (BTA). This feature greatly improves approach angle and front-end clearance, making rough terrain much easier to handle.
The Enduro Trailwalker 4x4 comes ready for adventure right out of the box with performance-driven Reedy Power electronics. The all-new, ultra-smooth, and powerful 16-turn, 5-slot brushed crawler motor and Reedy Power SC400X electronic speed controller with T-plug connector supply ample power to this tough rig. Controlling the beast on the trail is our new 3-channel XP130 2.4GHz radio and Reedy Power high-torque 1320MG metal-gear servo.

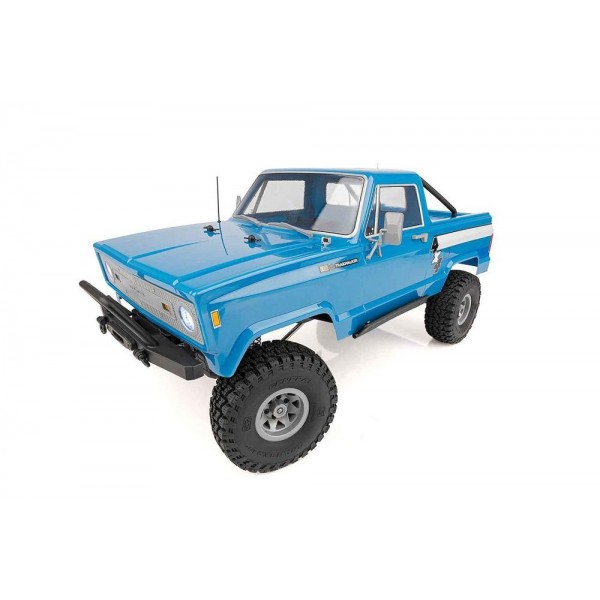

With all this packed in one box, we know the Enduro Trailwalker 4x4 is ready for the trail -- are you?features
- Trailwalker body thermoformed in high-strength polycarbonate
- Single-piece body with roll bar
- Clear windows
- Molded grill, antennas and action camera
- Replaceable headlight lenses
- Pivoting side mirrors
- LED headlights
- Adjustable front injection molded bumper with D-rings
- Removable injection molded fairlead
- Realistic styling
- Three-piece 1.55" beadlock wheels
- Licensed 1.55 x 3.85" General Grabber(TM) A/T X tires
- CMS (Chassis Mounted Servo)
- Adjustable front track bar
- Universal front drive axles
- Stamped steel frame rails
- Enclosed receiver box
- 12mm wheel hexes
- Adjustable front and rear bumper mounts
- Adjustable width rock sliders
- Two battery boxes
- Aluminum motor plate
- Adjustable body posts
- Optimized ball cups for more fluid axle articulation
- Adjustable rear shock mount positions
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines
- One-piece rear axle design
- Splined front axle with adjustable caster
- Machined input pinion gear
- Metal ring gear
- Machined steel top shaft
- Metal idler gears
- Heavy duty 5mm diameter steel links
- Metal ball bearings included
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Truck
Scale Size: 1/10 Scale
Assembly Level: Ready-To-Run*
Length: varies
Width: varies
Wheelbase: 313mm (12.32in)
Weight: varies
Internal
Gear Ratio: varies
Drive: 4WD
* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.Product Videos
- Specs
Product Specifications
Part Number ASC40101C Scale 1/10 Drivetrain 4WD Kit Type RTR Power Source Electric Terrain Off-Road Body Style Truck Scale Size 1/10 Scale Assembly Level Ready-To-Run* Length varies Width varies Wheelbase 313mm (12.32in) Weight varies Gear Ratio varies Drive 4WD - Reviews
