- Overview
Overview

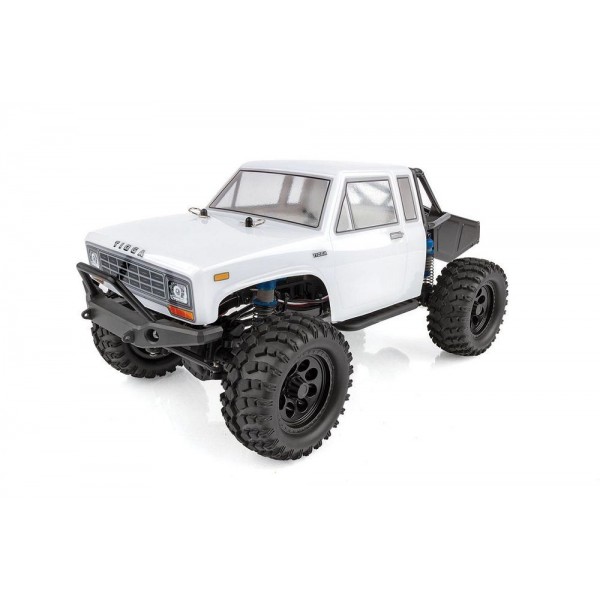

Designed not only for scale looks with realistic wheels, tires and body, the CR12 is built for performance as well. The steel ladder frame chassis provides the perfect backbone for this rugged rig. The 4-link suspension, threaded shocks, and soft rubber tires give the grip and performance needed to climb over the roughest terrain. Transferring power to the rocks is a compact 3-gear transmission, plastic low-friction slider-type drive shafts, front steel CVA axles, and metal-shield ball bearings.
features
- Molded rear cage with hinged body mount
- Off road style front bumper with 2-piece LED
- Metal front CVA and rear solid axle shafts with 12mm hex adapters
- Black anodized aluminum battery/radio tray with hook-and-loop hold down strap
- Black scale 1.9 wheels with soft compound off road tires
- Metal 4-link front and rear suspension
- Fully adjustable, threaded, fluid-filled shocks
- Chassis-mounted steering (CMS) servo
- 13.98 to 1 ratio 3-gear transmission with integrated motor mount
- Plastic low-friction slider-type drive shafts
- 16-piece metal shield ball bearing set
- 2.4GHz XP transmitter and receiver
- Water-resistant Reedy Power speed control with high-current T-plug connector
- Reedy brushed 380 motor
- 850mah Li-Ion 7.4V 2-cell battery and charger
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:12 Scale
Assembly Level: Ready-To-Run*
Length: 395mm (15.55in)
Width: 201mm (7.91in)
Wheelbase: 225mm (8.86in)
Weight: 1218g (2.69lbs)
Internal
Gear Ratio: 13.98:1
Drive: 4WD
* This vehicle is fully assembled and ready to run right out of the box. Some models may require a battery and/or charger.- Specs
Product Specifications
Part Number ASC40005 Scale 1/12 Drivetrain 4WD Kit Type RTR Power Source Electric Terrain Off-Road Body Style Truck Scale Size 1:12 Scale Assembly Level Ready-To-Run* Length 395mm (15.55in) Width 201mm (7.91in) Wheelbase 225mm (8.86in) Weight 1218g (2.69lbs) Gear Ratio 13.98:1 Drive 4WD - Reviews
- Questions & Answers
- Must be logged in to ask a question.
Sort By:
No questions yet. Be the first to ask the question! - Resources
- Manuals
- CR12 Tioga Trail Truck #29198 SC400 Reedy ESC manual (1.28 MB)
- CR12 Tioga Trail Truck Instruction Manual (6.93 MB)
- CR12 Tioga Trail Truck XP120 Radio Manual (10.02 MB)
- CR12 Tioga Trail Truck #29199 Reedy SC400X ESC - press release (176 KB)
- CR12 Tioga Trail Truck #40003, 40004 CR12 Toyota FJ45 - press release (555 KB)
- CR12 Tioga Trail Truck #40005 CR12 Tioga Trail Truck RTR - press release (542 KB)
- CR12 Tioga Trail Truck #41084 Roll Cage - instructions (904 KB)
- CR12 Tioga Trail Truck CR12 Tioga press release (550 KB)
- CR12 Tioga Trail Truck CR12 trucks - ad campaign (1.04 MB)
- CR12 Tioga Trail Truck Parts List press release (142 KB)
- CR12 Tioga Trail Truck Radon 2 Crawler Motors - press release (174 KB)
