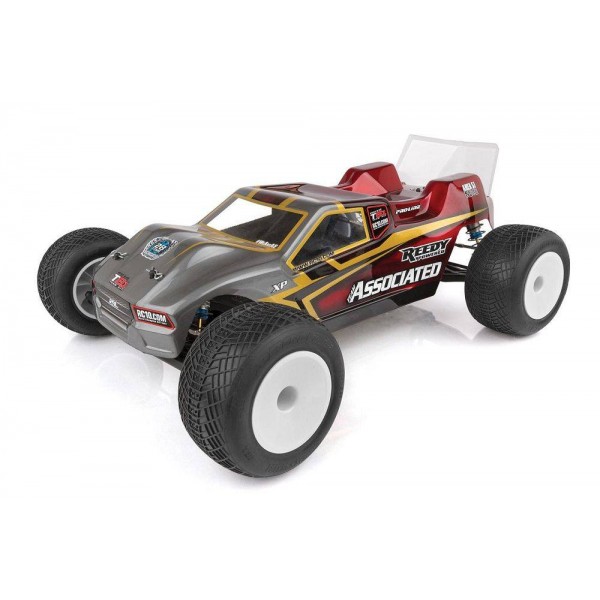

Get the edgeRace-winning heritage.Based on Team Associated's RC10B6.1 platform, the RC10T6.1 Team Kit represents the next step in the evolution for competitive truck racing. The RC10T6.1 Team Kit began life with the many great advantages already learned through the development of the RC10B6.1. Armed with extensive feedback from racers like you, the engineers behind the doors of Team Associated's Area 51 set off to design the ultimate truck chassis utilizing every advantage possible.
Designed to win. The RC10T6.1 shares key components with the RC10B6.1 and RC10B6.1D Team Kits, making it easier than ever to run multiple classes at the same time. Like the RC10B6.1, the RC10T6.1 has new features such as an easy-access differential with height adjustment, an all-new slipper assembly, and the speed, durability and lineage expected of a true champion.
The RC10T6.1 has been designed and built to the highest standard to give racers an edge over the competition.Requires:
- 1:10 scale 540-size electric motor
- 1:10 scale electronic speed control
- 7.4V LiPo or 6.6V LiFe shorty pack battery
- Battery charger (able to charge one of the batteries mentioned above)
- 2-channel surface transmitter, and its batteries
- 2-channel receiver
- Steering servo
- Pinion gear (48 pitch)
- Spray paint for Polycarbonate body
- 1:10 scale 12mm hex truck wheels
- 1:10 scale truck tires
- Glue for tires and wheels
features
- Layback Stealth(R) transmission included for lower and more rearward CG
- Easy access to ball differential
- Differential height adjustment with included 0, 1, 2, and 3mm inserts
- New slipper assembly for better weight balance and shock clearance
- Innovative rear arm with molded inserts for ultra-fine lower shock mounting adjustments
- Machined pistons included for better fit and smoother operation
- Aluminum C and D arm mounts included for a large range of anti-squat and toe adjustments
- Rear hubs feature large bearings and the easy-insert system to adjust camber link position and rear axle height
- Reverse bellcrank steering allows more room for mounting electronics
- Bolt-on steering block arms for easy Ackermann adjustments
- Precision-ground steering bellcrank screws to reduce steering slop
- Aluminum rear ballstud mount for added strength
- 7.0mm aluminum rear clamping hex with laser etching
- Heavy-duty ball cups and ballstuds allow for maximum suspension travel while reducing binding and friction
- Pro-Line(R) Enforcer body included
- Front and rear anti-roll bar integration makes tuning easy
- Heavy-duty routed graphite shock towers
- Heavy-duty rear axle with 91mm CVA bones
- Lightweight, hard-anodized aluminum chassis with centralized mass for improved handling on all track types
- V2 12mm "Big Bore" threaded aluminum shocks with 3mm shafts and X-rings for improved smoothness
- One-piece shock bushing to make assembly easier
- Lightweight aluminum top shaft
- Factory Team upgraded ball bearing kit included (now oiled instead of greased for less drag)
Power Source: ElectricSpecs
Terrain: Off-Road
Body Style: Truck
Scale Size: 1:10 Scale
Assembly Level: Kit*
Length: 368mm (14.49in)
Width: varies
Wheelbase: 288mm (11.34in)
Weight: varies
Drive: 2WD
* This vehicle comes as a kit and must be fully assembled by the user. Electronics and/or an engine/motor may be required.- Specs
Product Specifications
Part Number ASC70002 Scale 1/10 Drivetrain 2WD Kit Type Unassembled Kit Power Source Electric Terrain Off-Road Body Style Truck Scale Size 1:10 Scale Assembly Level Kit* Length 368mm (14.49in) Width varies Wheelbase 288mm (11.34in) Weight varies Drive 2WD - Reviews
- Questions & Answers
- Must be logged in to ask a question.
Sort By:
No questions yet. Be the first to ask the question! - Resources
- Manuals Other Documents
- RC10T6.1 Team #91793 Aluminum Differential Height Inserts - press release (191 KB)
- RC10T6.1 Team #91796 Factory Team Motor Plate - press release (176 KB)
- RC10T6.1 Team #91800 B6.1 FT Direct Drive Kit - press release (133 KB)
- RC10T6.1 Team #92011 Arm Mount Inserts - instructions (374 KB)
- RC10T6.1 Team 12mm Thin Shock Pistons - press release (162 KB)
- RC10T6.1 Team 6-Series C & D Mount Pill Chart, with visuals (2.42 MB)
- RC10T6.1 Team B6.1 HTC Slipper Hub Assembly (197 KB)
- RC10T6.1 Team Blank Setup Sheet (editable) (993 KB)
- RC10T6.1 Team FT Chassis Protective Sheet (337 KB)
- RC10T6.1 Team How to convert to another gearbox configuration (102 KB)
- RC10T6.1 Team MOBILE: 6-Series C & D Mount Pill Chart, with visuals (1.14 MB)
- RC10T6.1 Team RC10SC6.1 and T6.1 new parts - press release (232 KB)
- RC10T6.1 Team RC10T6.1 Team Kit - press release (564 KB)
