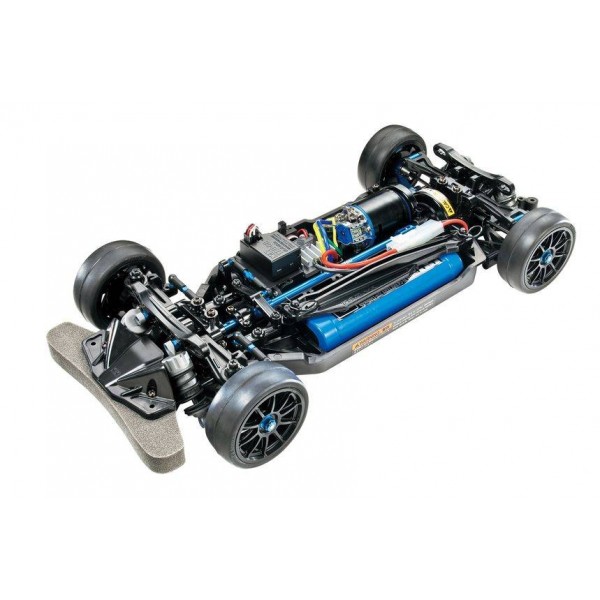

Tamiya TT-02R Race Spec 1/10 4WD Chassis Kit

Overview

Overview

This refined, race-spec version of the TT-02 chassis features a wide range of option parts and newly-designed components to make it ready to race! The included racing spec parts include upgraded uprights, motor mount, shafts, joint cups and more, while the suspension is fitted with metal parts and CVA oil dampers. It retains the TT-02's versatility and easy-to-drive characteristics.

features

Featured components

Aluminum uprights (3-degree toe-in)
Aluminum motor mount

Included Hop-Up-Option parts

TAM53159 4mm Aluminum Flange Lock Nut (Blue)
TAM54247 3x18mm Aluminum Turnbuckle Shaft (Blue) x2
TAM54501 TT-02 Aluminum Propeller Shaft
TAM53642 5mm Aluminum Ball Connector (Blue)
TAM54500 TT-02 High-Speed Gear Set (68T)
TAM54502 TT-02 Aluminum Propeller Joint

Specs

Adjustable Gear Ratio: Yes
Bearings: Includes full ball bearings
Chassis Material: ABS Plastic
Chassis Type: TT-02R
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Requires A Requires 2-channel radio, steering servo, ESC, 7.2-volt battery with charger and tires.
Scale: 1/10
Shock Damper: CVA Oil Filled
Suspension: Fully Independent Double Wishbone
Terrain Use: On-Road

Specs

Product Specifications

Part Number	TAM47326
Scale	1/10
Drivetrain	4WD
Kit Type	Unassembled Kit
Adjustable Gear Ratio	Yes
Bearings	Includes full ball bearings
Chassis Material	ABS Plastic
Chassis Type	TT-02R
Construction Type	Assembly Kit
Differential Type	Gear
Drive Type	4WD
Scale	1/10
Shock Damper	CVA Oil Filled
Suspension	Fully Independent Double Wishbone
Terrain Use	On-Road
